Detailed Sample Progress

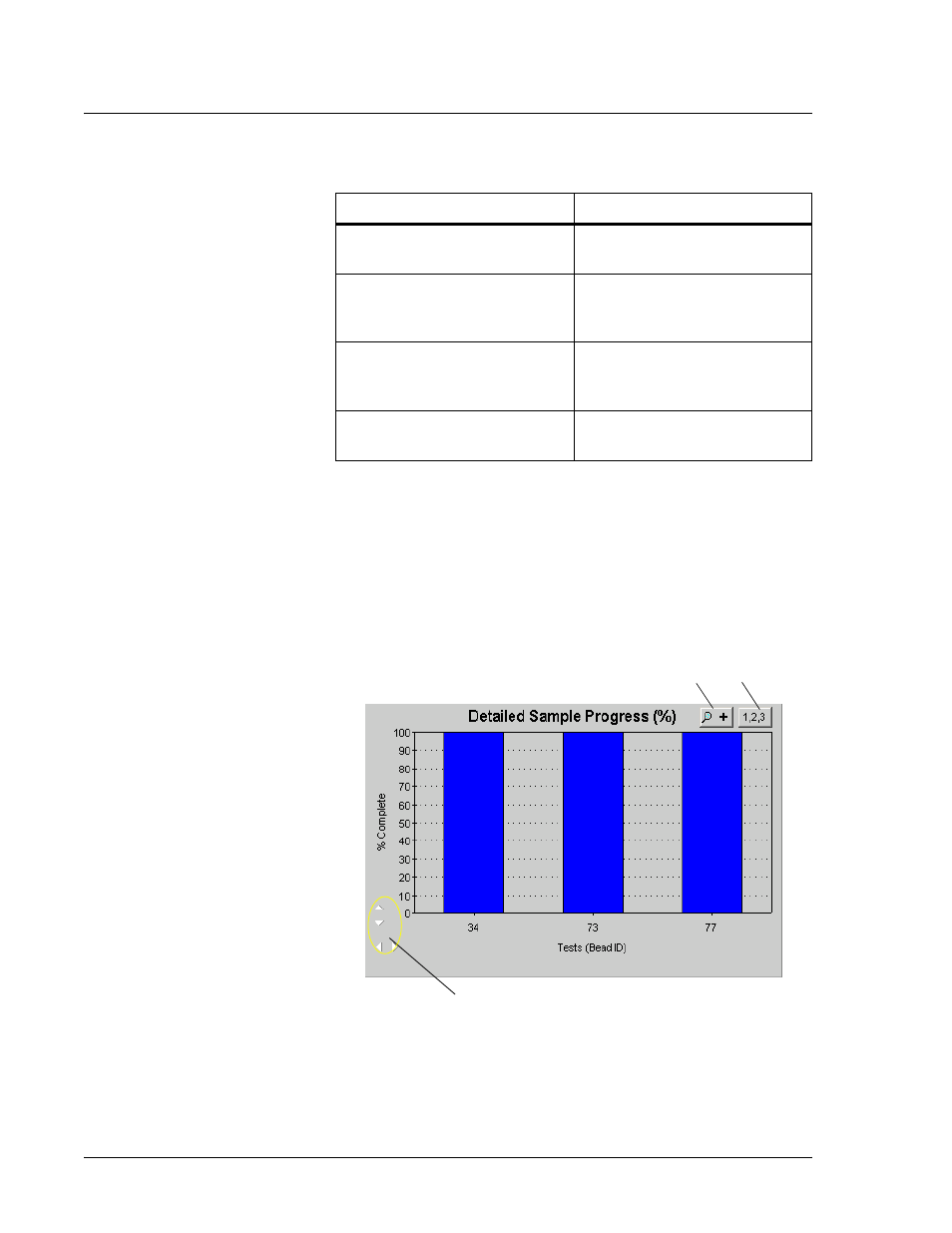

The Detailed Sample Progress window displays the percentage of
completion for each bead ID or test. The graph shows real-time
progress, so that as each sample is analyzed, the graph adjusts to
show progress. Use the zoom button to view up to 20 tests at a time.
Use the toggle button to view the bead ID or test name. Use the up/
down and left/right arrows to expand the chart margins and view
longer test names.See Figure 44
.
1. Zoom button
2. Toggle button
3. Expand Margin arrows
Figure 44. Detailed Sample Progress
CL2 Temperature °C, CL2 temperature at the U
block inside the optics platform
XYP Board Temperature °C, temperature of the XYP
board inside the Luminex XYP
instrument
XYP Heater Temperature °C, temperature of the XYP
heaters inside the Luminex
XYP instrument
XYP Heater Temperature In
Range Indicates if the XYP heater is in
the set range
Table 4. System Monitor Values (Continued)
Property Value Units of Measure
1 2
3
