3 - 12 PN 89-00002-00-069 Rev. A
Luminex 100 IS User Manual Version 2.2 x MAP Technology

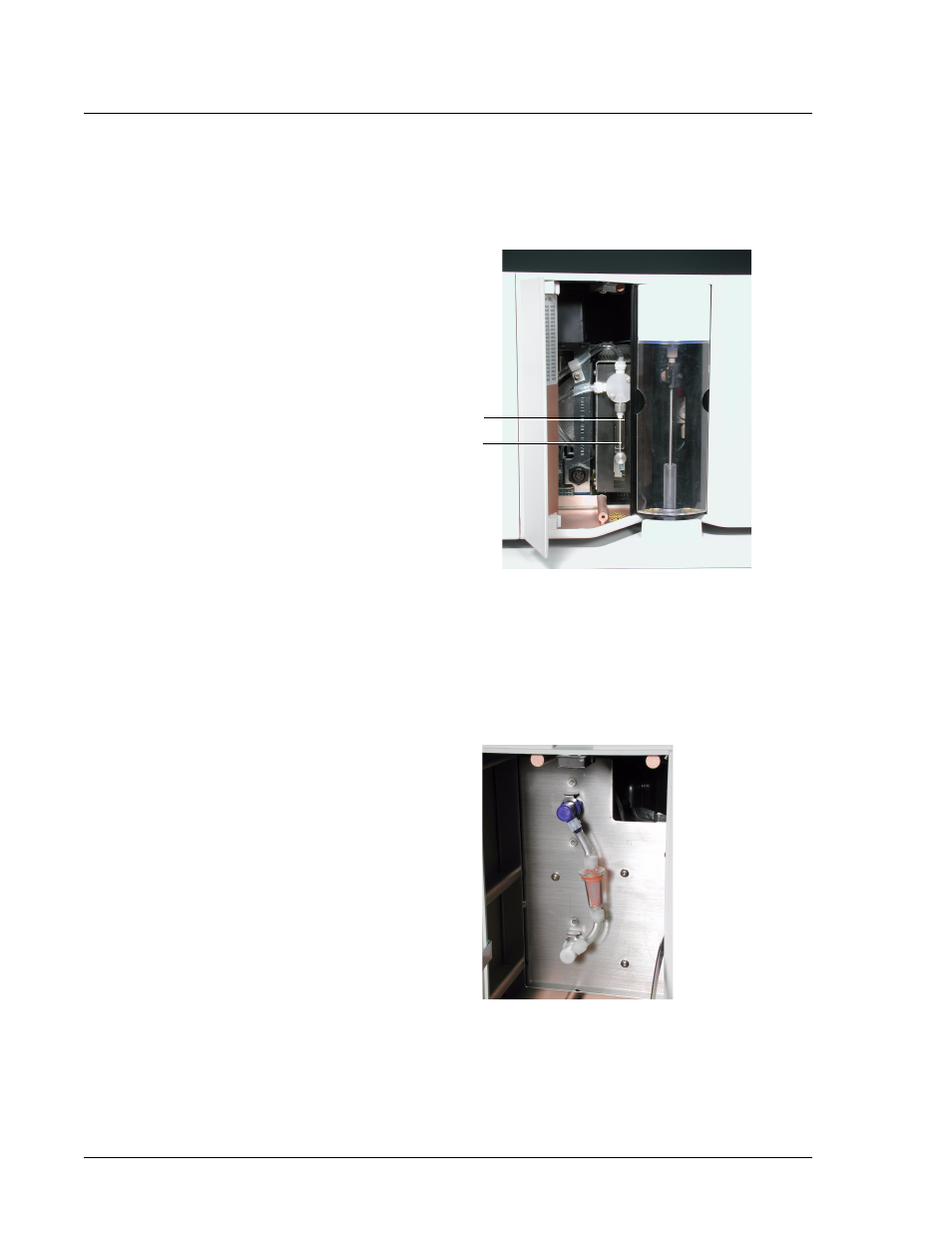

Syringe Located in this compartment behind the center door, the syringe
delivers a sample from the 96-well microtiter plate to the cuvette.
See Figure 6.
1. Syringe Seal
2. Syringe
Figure 6. Syringe and Syringe Seal
Sheath Filter Behind the left door, the service panel houses a sheath filter. This
filter removes particles greater than ten microns in diameter from the
sheath fluid. See Figure 7.
Figure 7. Sheath Filter
Air, Waste, and
Sheath Fluid
Connectors
Located on the side of the Luminex 100 analyzer, these connectors
couple directly to the sheath and waste fluid containers. The air
1
2
