‹ To install the Luminex XYP instrument reservoir:
1. Turn on the Luminex XYP instrument, Luminex 100 analyzer,
and PC. Wait for the Luminex 100 IS software to start.
2. Click Eject/Retract to eject the plate holder.
3. Insert the reservoir in the upper-right corner of the plate holder.
See Figure 142.

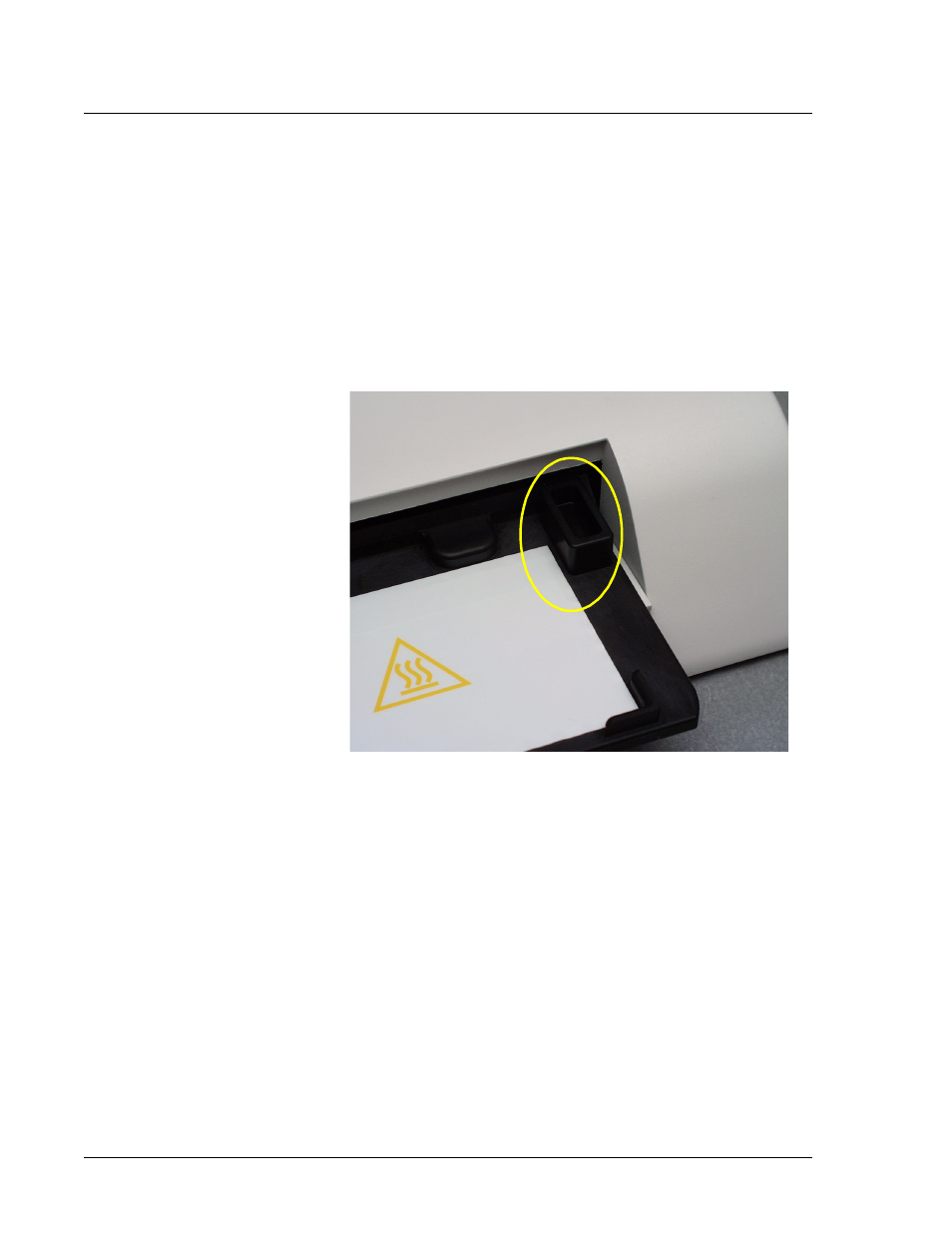

Figure 142. The XYP Instrument Reservoir (circled)
4. Click Eject/Retract to retract the plate holder.
5. Turn heater on and set temperature. Refer “Set Luminex XYP
Instrument Heater Temperature” on page 6-21 for instructions.
Install the
Luminex XYP
Instrument Heater
Block (Optional)
Use the Luminex XYP instrument heater block as required by your
assay kit instructions. When not in use, you can store the Luminex
XYP instrument heater block in the bracket inside the left access
door of the Luminex 100 analyzer.
‹ To install the Luminex XYP instrument heater block:
1. Click Eject/Retract to eject the plate holder.
