Luminex 100 IS Version 2.2 - Manual (Page 132)

Luminex 100 IS User Manual Version 2.2 x MAP Technology
6 - 78 PN 89-00002-00-069 Rev. A
Edit Lot
Information on an
Unused Template
‹ To edit information for an existing lot:
1. Click New Lot on the Home tab. An Open Template dialog box
appears. See Figure 72.

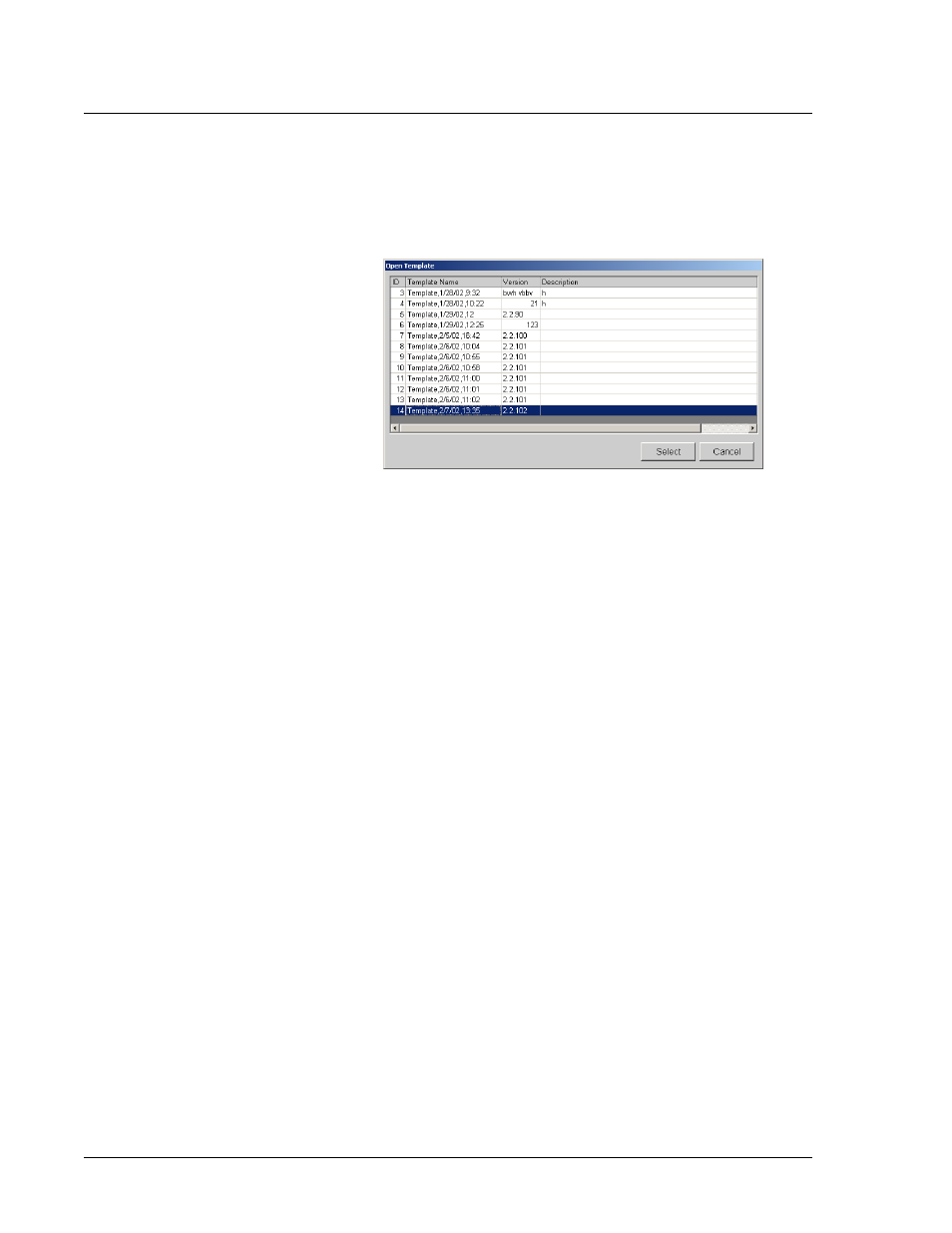

Figure 72. Open Template To Update New Lots
2. Highlight the template that you want to edit and click Select. An
Update Lot Information dialog box appears. See Figure 73.
3. Change or edit the expiration date and the lot concentration
values. Upon entering the information in the entry fields, the
Save button activates.
4. Click Save. The system updates the lot changes and applies them
to the template. The Update Lot Information dialog box closes.
