4. Attach the power cord to the power input module of the Luminex
XYP instrument and attach the communication cable to the
Luminex XYP instrument. Do not plug the Luminex XYP
instrument into the power outlet.
5. Place the Luminex 100 analyzer onto the Luminex XYP
instrument.
6. Attach the power cord to the input module of the Luminex 100
analyzer and attach the USB cable to port 1 on the analyzer. Do
not plug into the power outlet. Make sure that the power
switches to the Luminex 100 analyzer and to the Luminex XYP
instrument are off. See Figure 134.
7. Install the alignment guide (translucent plastic tube) by screwing
it into the Luminex XYP instrument where shown. Adjust the
position of the Luminex 100 analyzer with the Luminex XYP
instrument until the alignment guide threads screw in completely.
See Figure 132.

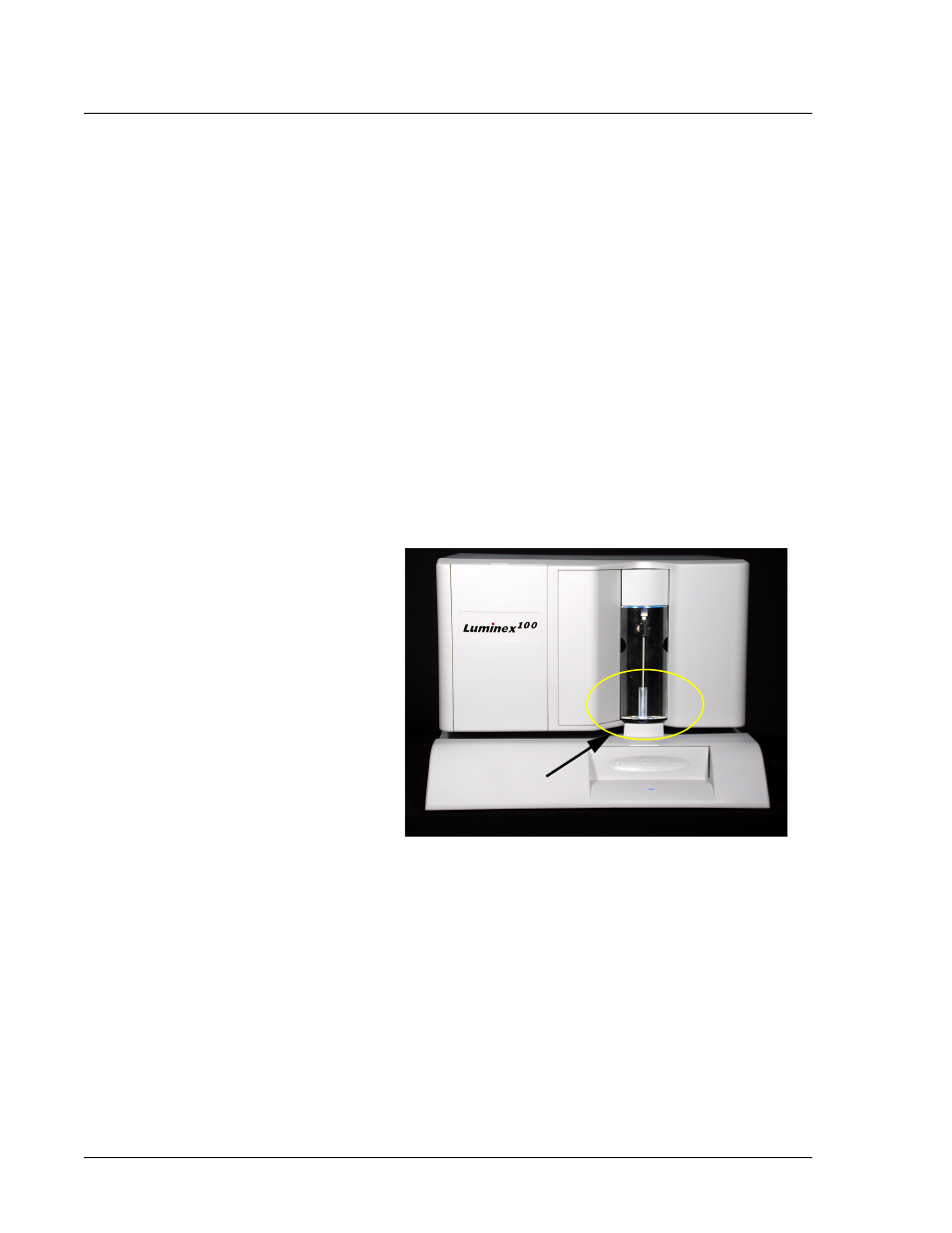

Figure 132. Alignment Guide
8. Set the voltage selection switch on the PC’s power supply to
match the ac power available at your location to prevent damage
to your PC.
Set it to 115 volts (V) in most of North and South America and
some Far Eastern countries such as Japan, South Korea, and
Taiwan.
Set it to 230 volts (V) in most of Europe, the Middle East, and
the Far East.
Note: The ac power
requirements may vary from
location to location and region to
region
.
