receptacle is level with the Luminex 100 analyzer or no more
than three feet below it.
• Connect the sheath fluid intake line (white fitting) to the
Sheath In connector on the front of the Luminex SD system.
• Connect the power cord to the back of the Luminex SD
system and plug the other end into an approved outlet.
7. Lower the stainless steel filter end of the sheath fluid line to the
bottom of a full 20 liter box of sheath fluid. Secure the cap on the
sheath fluid box. Place the sheath fluid container so that the cap
is on the top.
8. Turn on the power to the Luminex SD system; the Luminex SD
system automatically primes itself. You hear the Luminex SD
system pump turn on. When the Luminex SD reservoir is about
2/3 full, it automatically stops priming.
9. Open the center access door on the Luminex 100 analyzer. Use a
screwdriver to turn the regulator fully clockwise. This typically
takes three to six full turns. Regulator is under arrow as
Figure 148 shows.

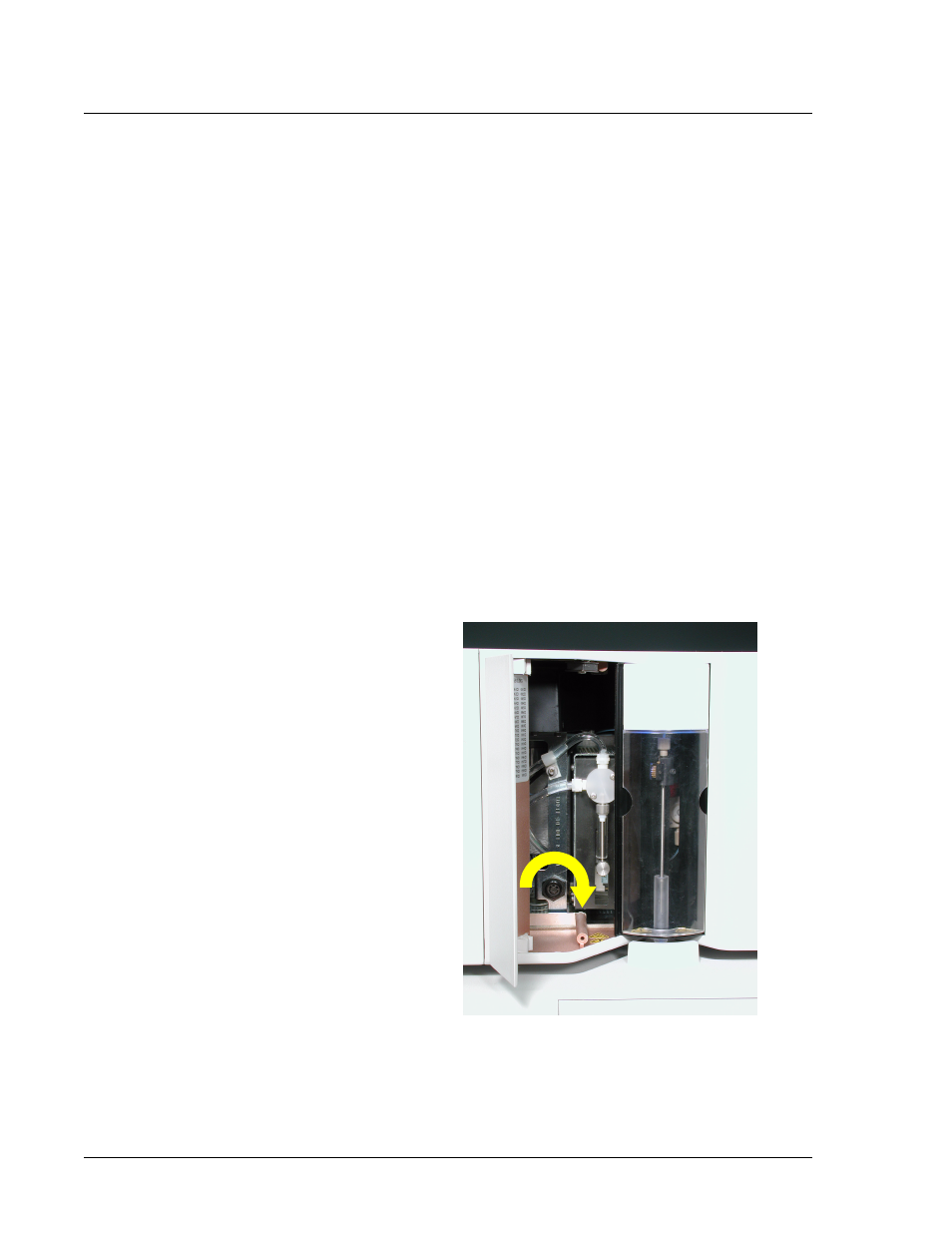

Figure 148. Luminex 100 Analyzer Regulator Adjustment
10. From the Home or Maintenance tab, select Prime. During this
prime cycle, use a screwdriver to adjust the regulator on the front
of the Luminex SD system. See Figure 147. Adjust it until the
Note: Ensure that the sheath fluid
box is at least three feet below the
system, otherwise the Luminex SD
system will overfill.
Note: The regulator must be fully
opened to work properly. It is
important to make sure that you
turn it as far as it will go.
