Luminex 100 IS Version 2.2 User Manual
Page 214
Luminex 100 IS User Manual Version 2.2
x
MAP Technology
A - 8
PN 89-00002-00-069 Rev. A

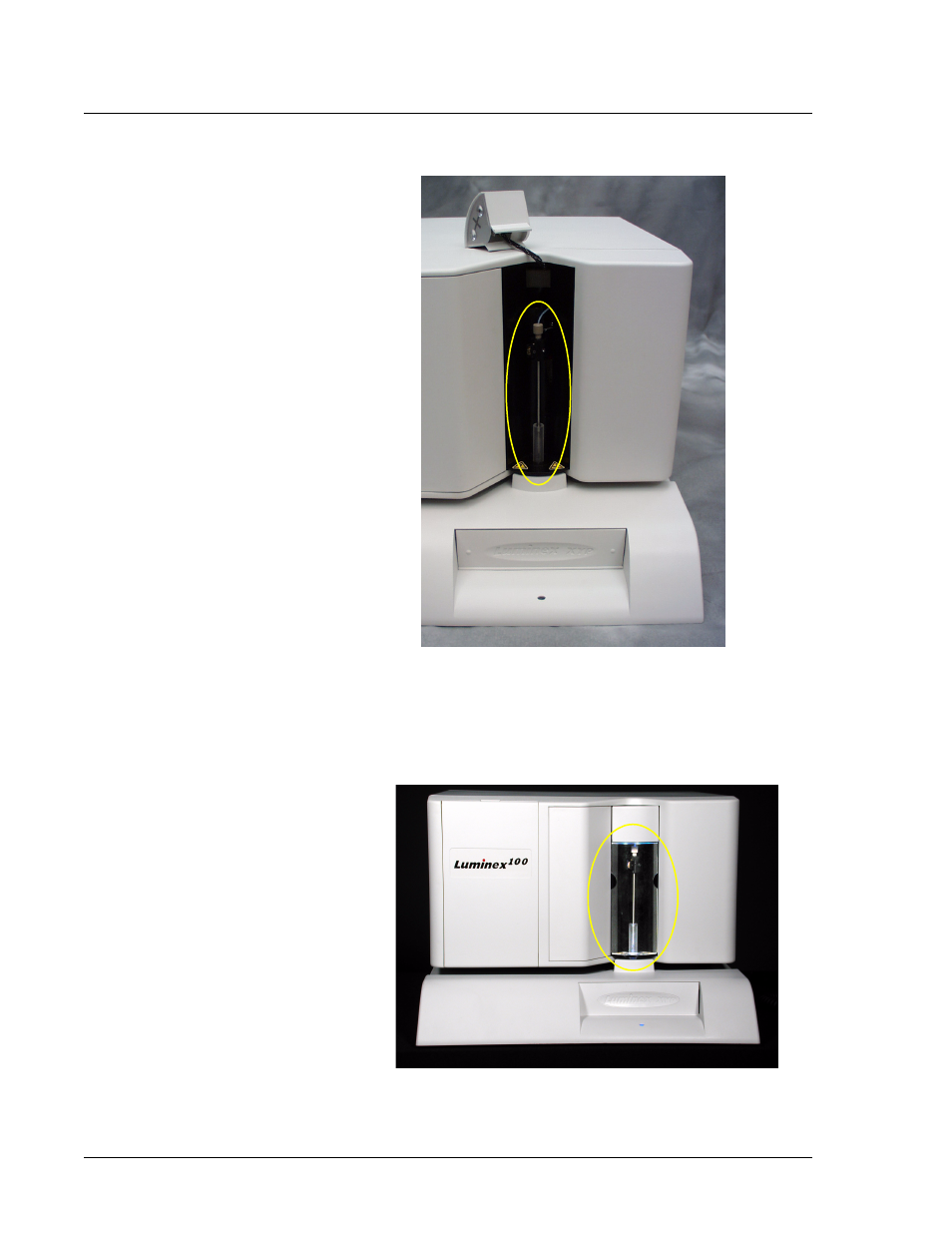

Figure 138. The Luminex XYP Instrument Sample Probe
6. Reinstall the light housing by pushing until it snaps into place.
7. Install the clear plastic shield to cover the Sample Probe area.
Remove this shield only to adjust the Sample Probe height. See
Figure 139.
Figure 139. The Shield
