Luminex 100 IS Version 2.2 - Manual (Page 169)

x MAP Technology Using Luminex 100 IS 2.2 Software
PN 89-00002-00-069 Rev. A 6 - 115
information for CAL 1, CAL2, CON1, and CON2 reagents are
correct. See Figure 110.

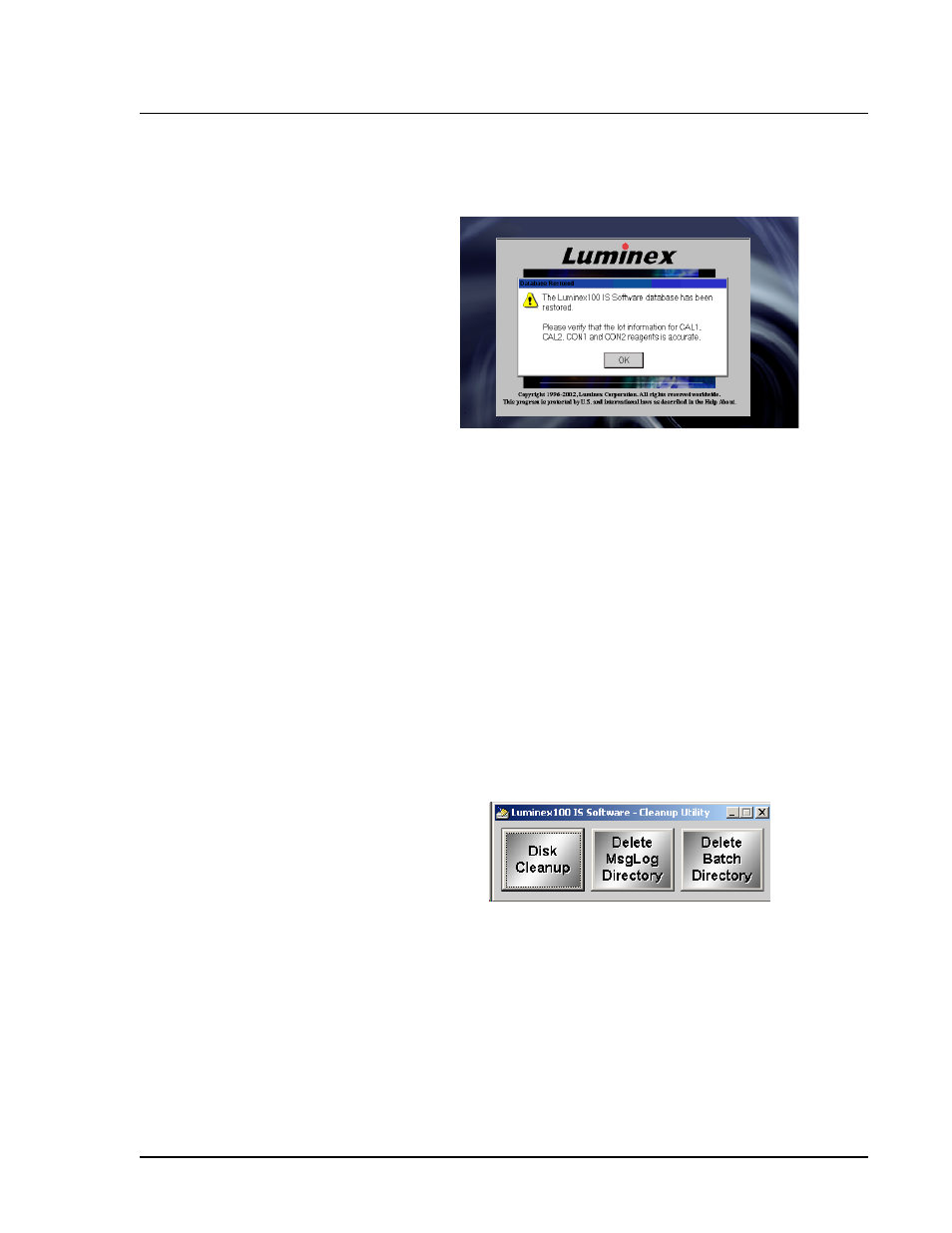

Figure 110. Database Restored Dialog Box
5. Click OK to verify that the lot information is accurate.
Cleanup Utility
Use the Cleanup Utility to:
• Perform a disk cleanup
• Delete the Message Log directory
• Delete the Batch Directory
‹ To display the Cleanup Utility dialog box:
1. Click Cleanup on the Menu Bar's Tools Menu. The Cleanup
Utility dialog box appears.
2. Continue with the desired following section, Disk Cleanup,
Delete MsgLog, or Delete Batch Directory.
Figure 111. Cleanup Utility Dialog Box
Disk Cleanup
This is a shortcut to the MS Windows Disk Cleanup feature.
‹ To perform a disk cleanup:
1. Click Disk Cleanup on the Cleanup Utility dialog box. See
Figure 111.
