x MAP Technology Using Luminex 100 IS 2.2 Software
PN 89-00002-00-069 Rev. A 6 - 101
Customization
Dialog Box
‹ To modify the general features of the Standards tab graph:
1. Click Analysis from the main toolbar.
2. Select the desired batch. The Analysis window appears
displaying the Standards tab. See Figure 82.
3. Double-click anywhere within the graph to display the
Customization Dialog Box. See Figure 91. Notice across the
dialog box are five tabs: General, Axis, Font, Color, and Style.
Also notice that there are six buttons along the bottom of the
dialog box. They are the OK, Cancel, Apply, Original, Export,
and Maximize buttons.

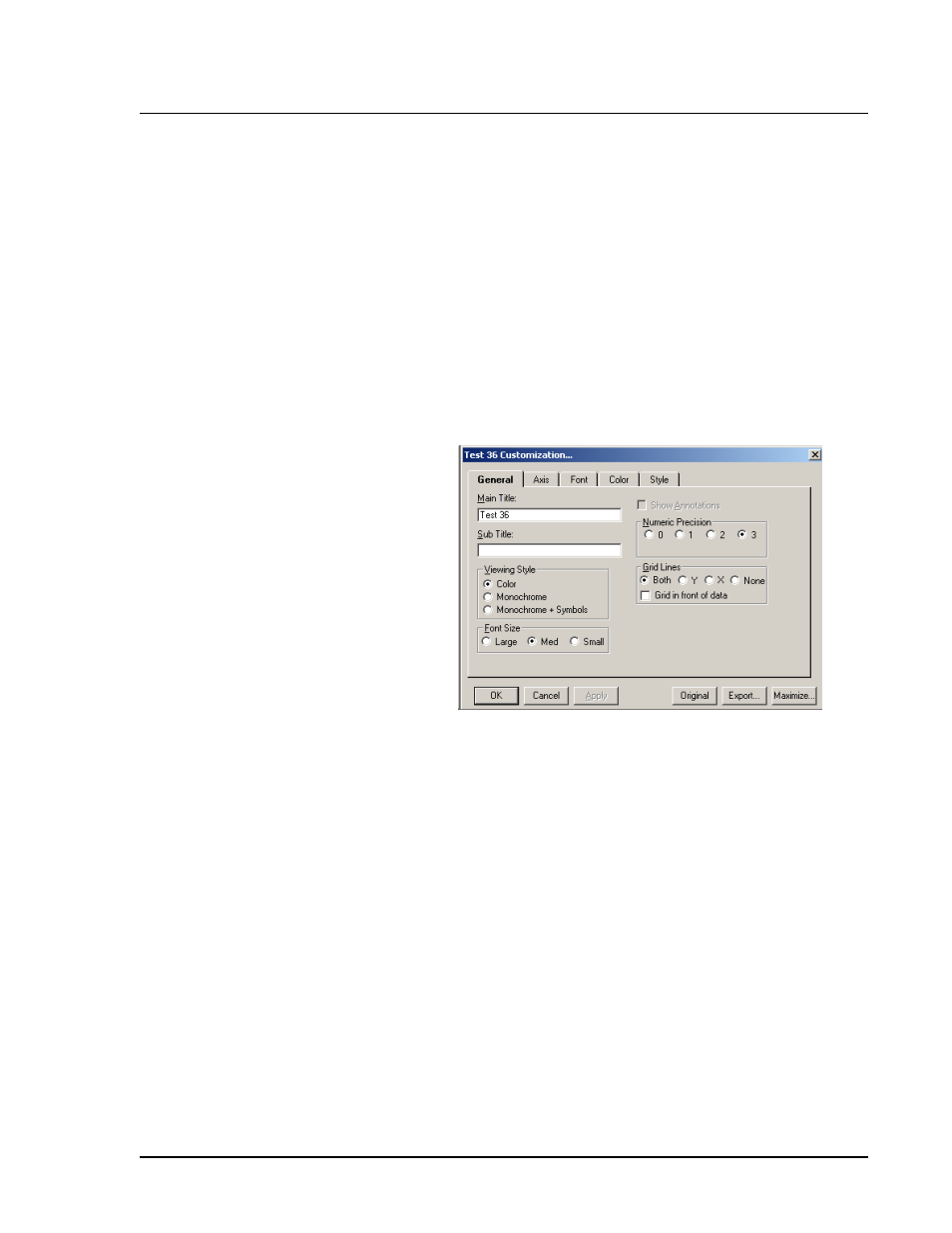

Figure 91. Customization Dialog Box—General Tab
Customization Dialog Box Buttons:
OK: click to update the graph’s parameters with the new
information and exit the Customization dialog box.
Cancel: click to abort selections and exit.
Apply: Apply is similar to the OK button, but does not close the
Customization dialog box. It updates graph parameter with new
information.
Original: click this button to restore the edited fields to their
previous or original values.
Export: click this button to export data from a Metafile or BMP
graphic to a csv output file in the batch folder file, or to the
clipboard. You can also export to a printer and specify the object
size. Select the desired features and click Export. See Figure 92.
