Luminex 100 IS User Manual Version 2.2 x MAP Technology
6 - 102 PN 89-00002-00-069 Rev. A

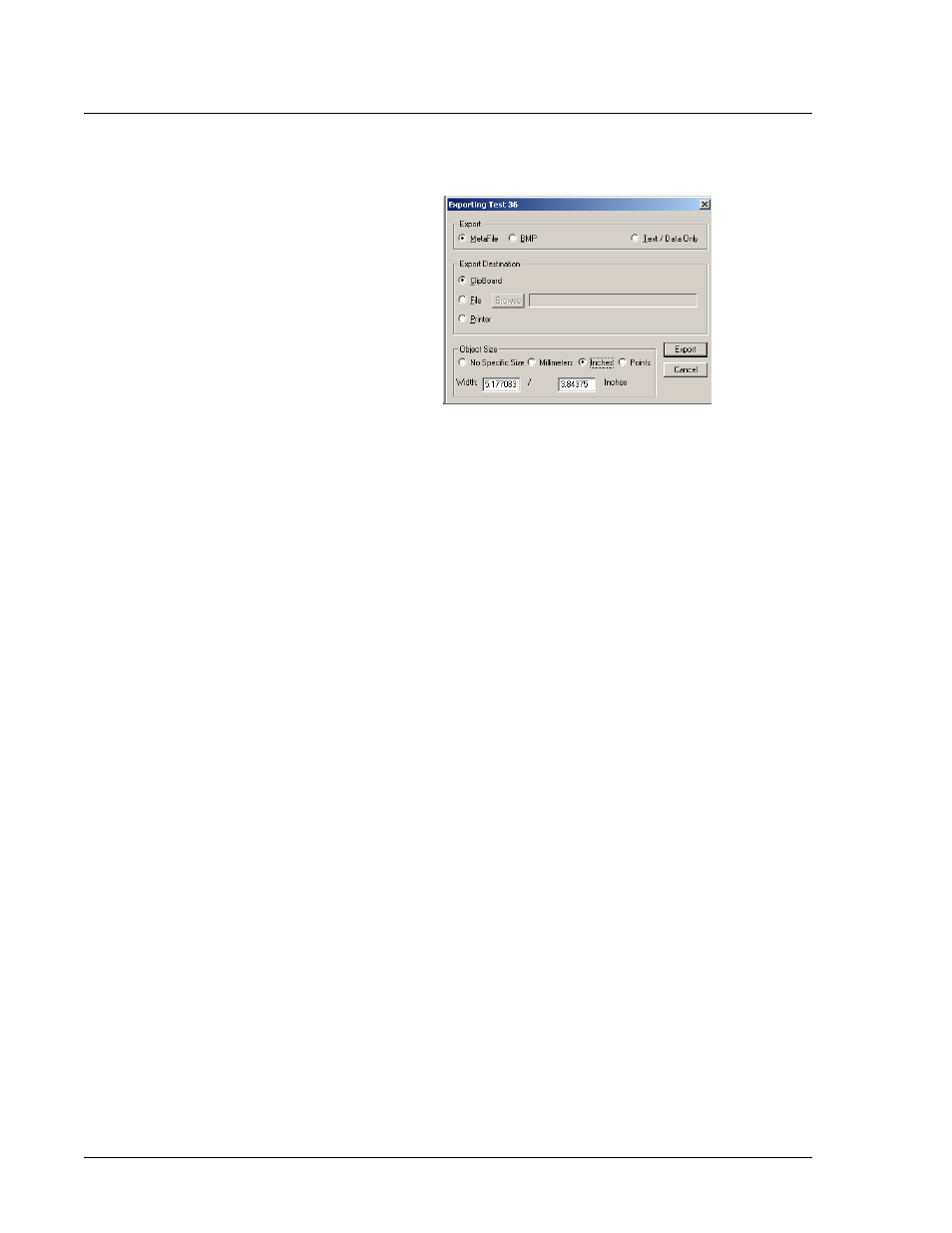

Figure 92. Exporting Dialog Box
Maximize: click to maximize the graph to full screen. Restore to
original size by pressing Escape or by clicking in the title bar.
Customization Dialog Box Tabs:
• General Tab—Use this tab to define general parameters. See
Figure 91.
Main and Sub Titles: These edit-boxes allow you to add, edit,
or delete these titles. If no title is present, you can enter one.
Delete all characters from a title to remove it.
Viewing Style: The Graph supports three viewing styles:
Color
Monochrome
Monochrome with Symbols
This customization allows you to quickly adjust the image to
best suite printing on a monochrome printer. If you include
fewer than four subsets in a graph, then the Monochrome
setting will probably be the best choice. If four or more subsets
are included in the graph, then Monochrome with Symbols will
help distinguish the different subsets.
Font Size: The Graph supports three font sizes, Large,
Medium, and Small. When printing the graph, a font size of
Medium or Small is suggested. On occasions the graph may
automatically reduce the size of the font to produce a higher
quality image.
Show Annotations: Currently, this feature is not used. This
check box allows you to remove or add the annotations from
the image.
Numeric Precision: When exporting text and data from the
Export Dialog, you can define the number of decimal positions
at 0, 1, 2, or 3.
