x MAP Technology The System
PN 89-00002-00-069 Rev. A 3 - 9
Luminex XYP
Instrument
Ventilation Filter
Located at the back of the Luminex XYP instrument, the filter cleans
the air that cools the internal components of the Luminex XYP
instrument. See Figure 2.
1. Air intake filter access door
2. Power Switch
3. Power input module
4. XYP instrument ventilation filter
5. Communications ports (DB9)
6. XYP to PC Serial cable
7. Luminex 100 analyzer ventilation filter (on bottom)

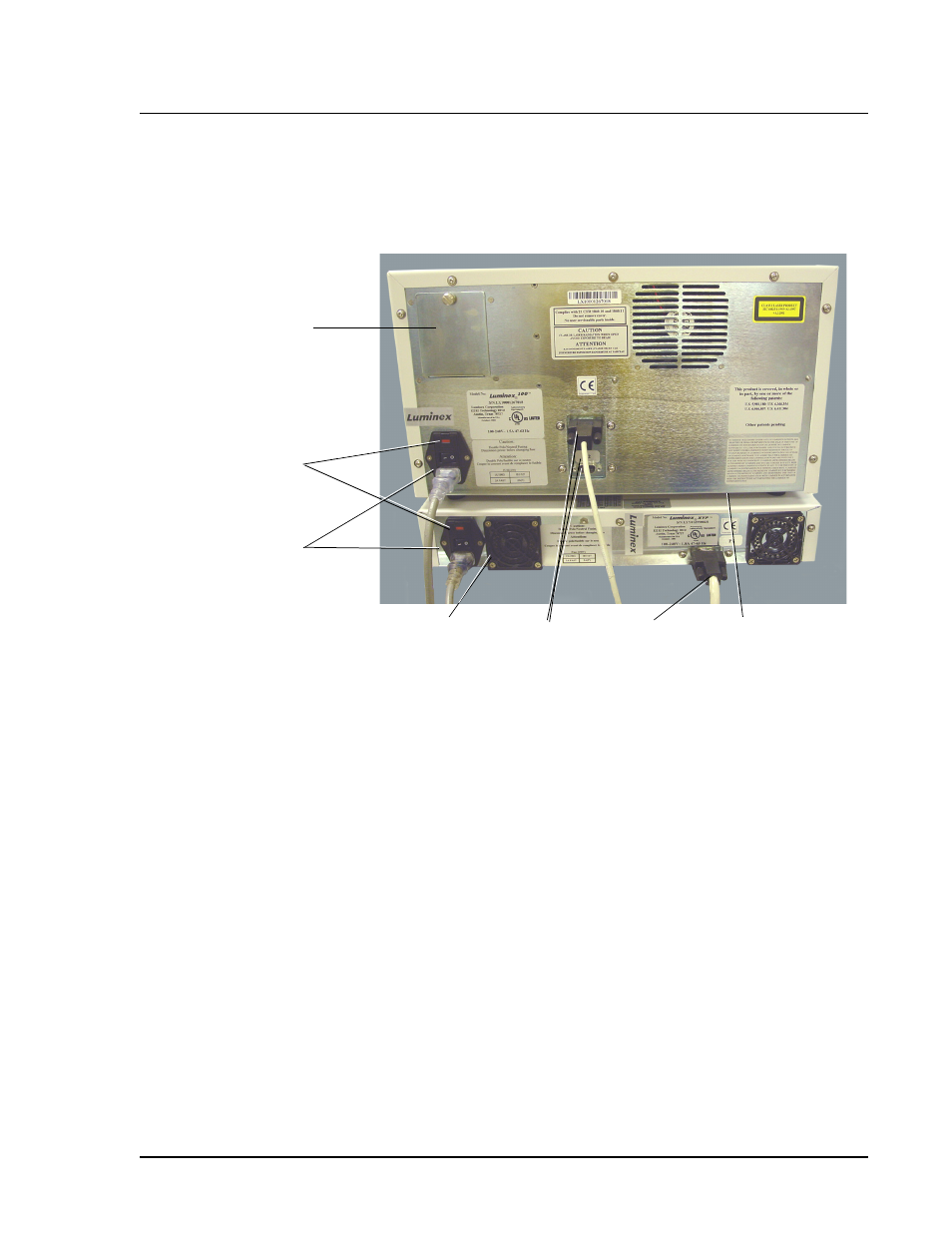

Figure 2. Back of the Luminex 100 Analyzer and Luminex XYP Instrument
Fluidics
Sample Arm The Sample Arm transports the sample from the sample tube to the
cuvette. Upon operation, the carriage drops automatically to the
microtiter well for sample retrieval.
5 7
4
3
2
1
6
