Luminex 100 IS User Manual Version 2.2 x MAP Technology
6 - 76 PN 89-00002-00-069 Rev. A
Create a New Lot ‹ To create a new lot:
1. Click New Lot on the Home tab. An Open Template dialog box
appears. See Figure 69.

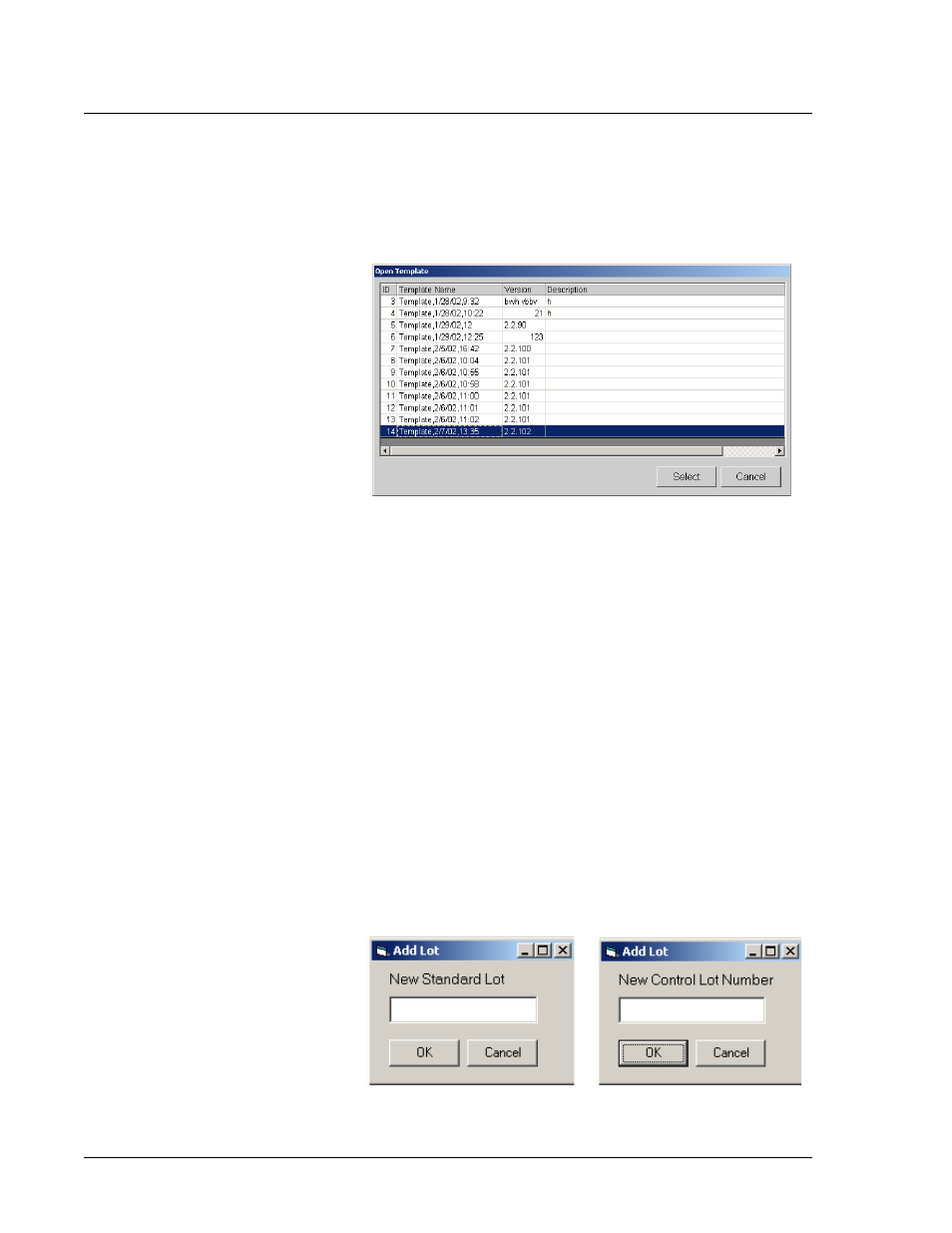

Figure 69. Open Template Dialog Box
2. Highlight the template that will use the new lot information and
click Select. Then, continue with substep “a” or” b”.
a.) If this is a new template with no associated lot information, a
New Standard Lot and New Control Lot dialog box appears
as appropriate. You must enter the standard and control
names to continue. See Figure 70. Once you enter the names,
the Update Lot Information dialog box appears. See
Figure 71.
b.) If this is a template with associated lot information, the
Update Lot Information dialog box appears. To create a new
lot when there is an existing lot, select the New Lot button
from the Standard or Control section of the dialog box. See
Figure 71. A New Standard Lot and New Control Lot dialog
box appears. Enter the standard or control lot name. See
Figure 70.
3. Click OK.
Figure 70. Add Lot Standard and Control Dialog Boxes
Note: Depending on the
types of products associated
with the template that you
select, the screen may vary
from the example in Figure 71.
That is, if you are creating only
standard lots, then only the
upper part of the screen
displays.
