3 - 10 PN 89-00002-00-069 Rev. A
Luminex 100 IS User Manual Version 2.2 x MAP Technology
Luminex XYP
Instrument Sample
Probe
A stainless steel Sample Probe acquires the sample. A shorter probe
is provided for shipping and troubleshooting.
Cheminert ® Fitting This fitting attaches the Luminex 100 analyzer Sample Arm tubing to
the Sample Arm. You disconnect this fitting when you remove the
Sample Probe. See Figure 3.
The alignment guide directs the Sample Probe into the Luminex
XYP instrument.

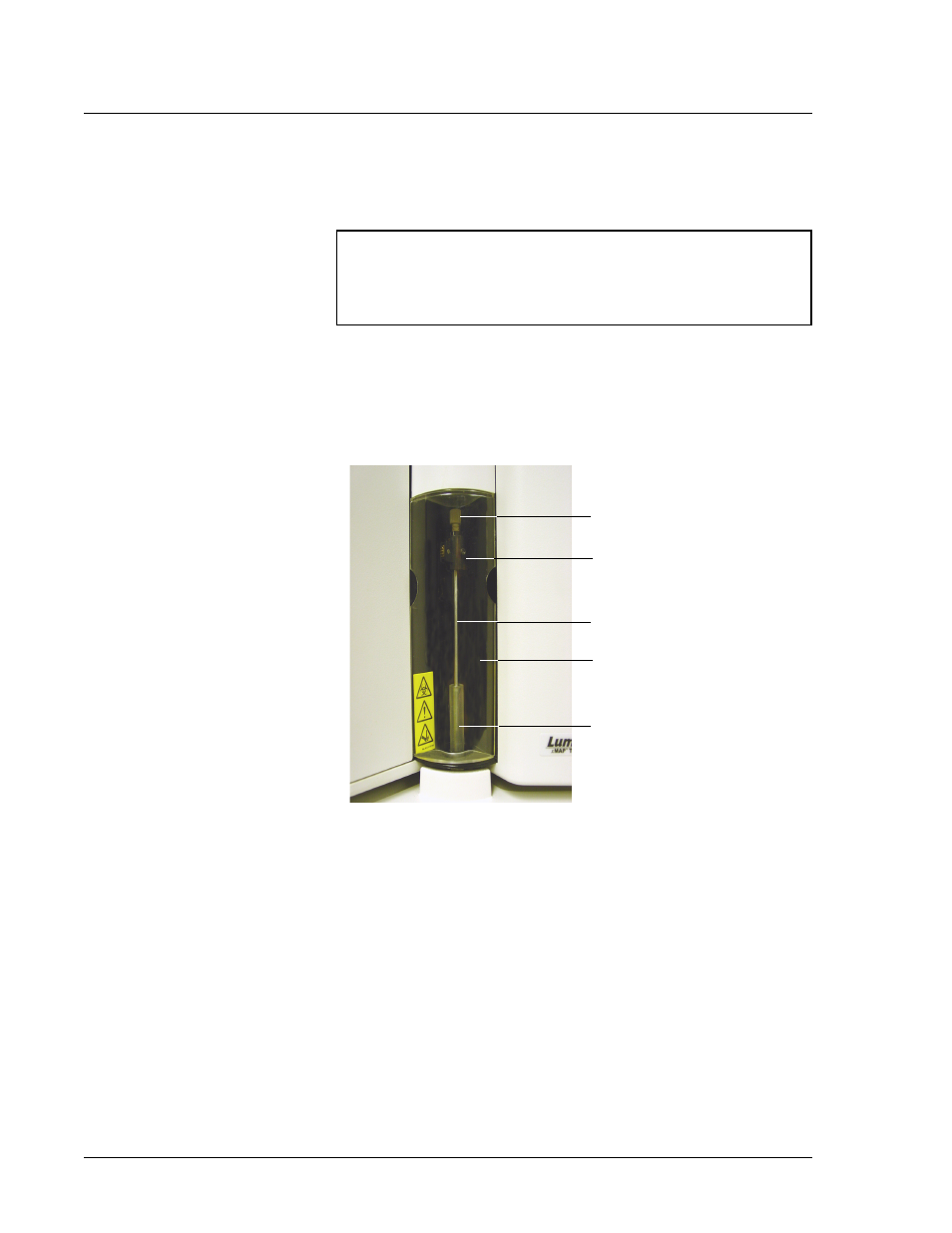

1. Cheminert Fitting
2. Sample Arm
3. Luminex XYP Instrument Sample Probe
4. Shield
5. Alignment Guide
Figure 3. Cheminert Fitting
Warning: During operation, this system contains exposed moving
parts that can result in a puncture hazard. Risk of personal injury
is present. Keep hands and fingers away from the Sample Probe.
The shield should be in place.
3
5
1
4
2
