Luminex 100 IS Version 2.2 - Manual (Page 150)

Luminex 100 IS User Manual Version 2.2 x MAP Technology
6 - 96 PN 89-00002-00-069 Rev. A

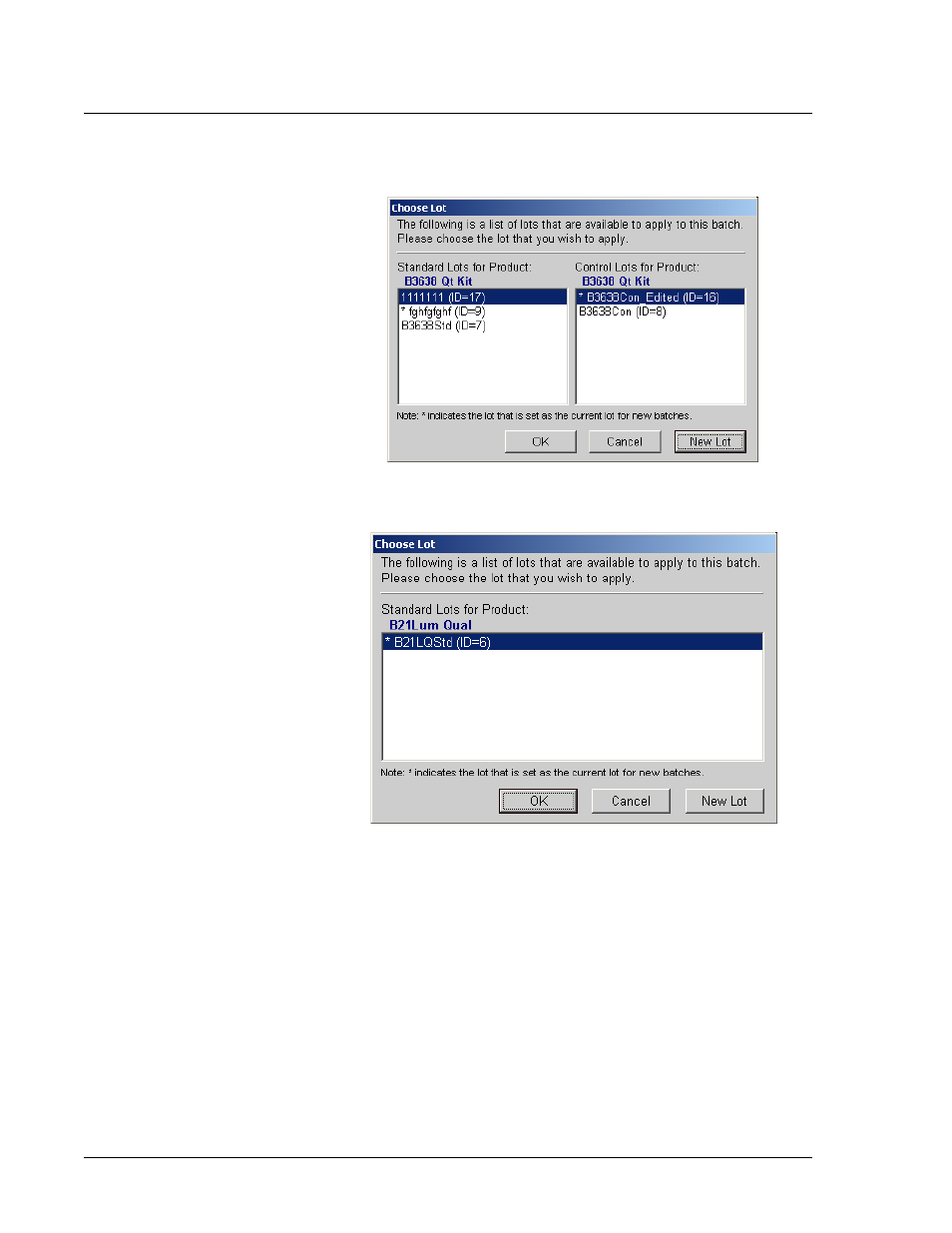

Figure 86. Choose Lot Dialog Box—Standard and Control
Figure 87. Choose Lot Dialog Box—Standard Only
3. To create a new lot from this dialog box as an alternate method,
click New Lot and follow the steps in the Create New Lot
procedure on “Create a New Lot” on page 6-76.
‹ To have a lot selected as the current lot for use with future
batches:
1. Select New Lot.
2. Select Standard lot or Control lot from the Update Lot Info
screen. Select Save to display the Choose Lot dialog box. An
asterisk identifies the selected lot. See Figure 86.
