ReFlex Power™

Active Loads

M380056-01 Rev J

7-25

7.5.1

C

ONTROLS AND

I

NDICATORS

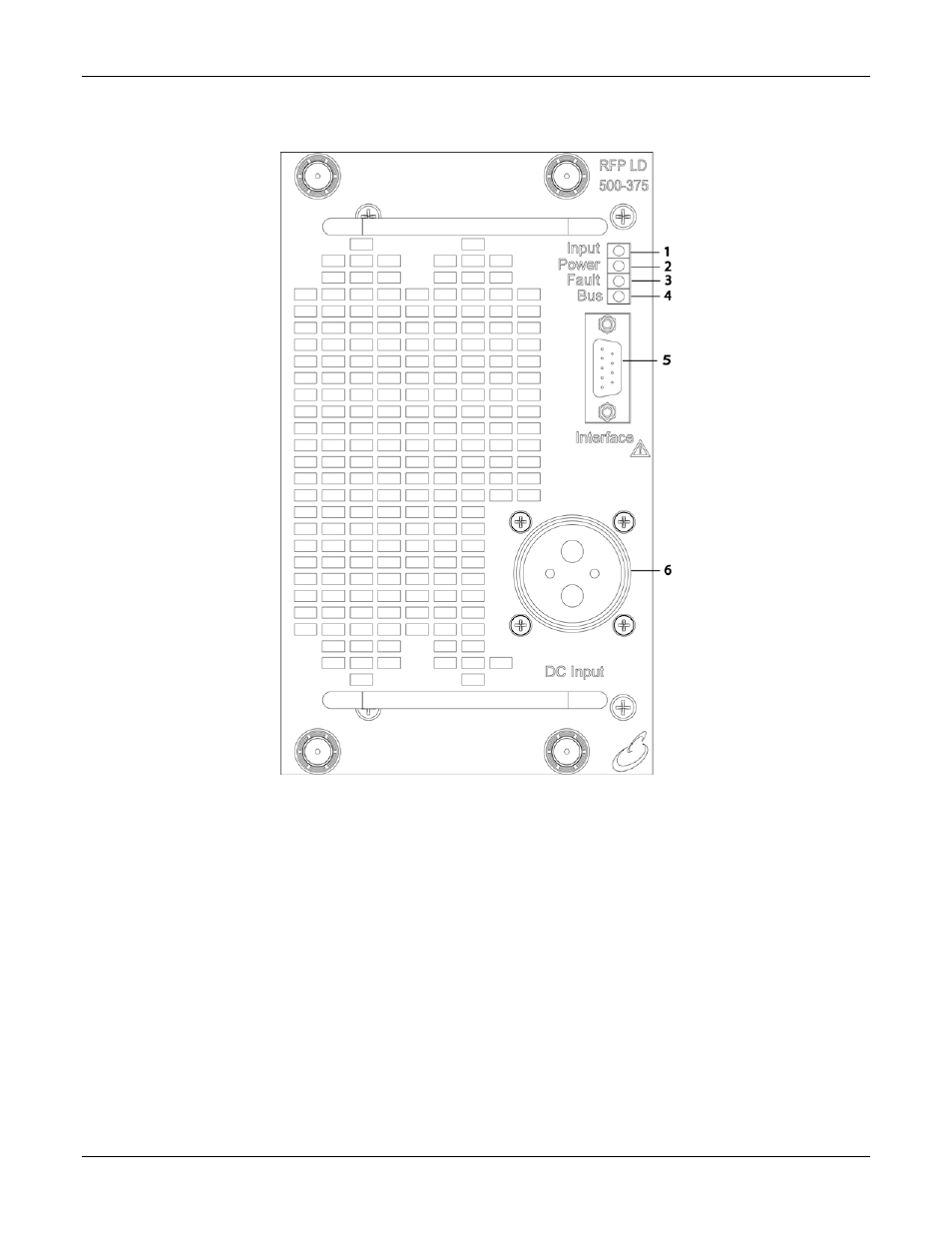

Figure 7-8. Active Load Front Panel (375W shown)

1 – Input: Green LED indicates input is enabled and/or isolation relay is closed.

2 – Power: Green LED indicates AC/DC housekeeping input power is applied to the

module.

3 – Fault: Red LED indicates abnormal internal operating or a protection supervisory

active condition; output is disabled and the isolation relay is opened.

4 – Bus: Green LED indicates internal inter-module communication is in process.

5 – User Interface connector for remote isolated digital signals: enable. The optional

Isolated Remote Analog Interface is also terminated at this connector.

6 – DC Input connector for the output load and remote sense.
