Manual control 71

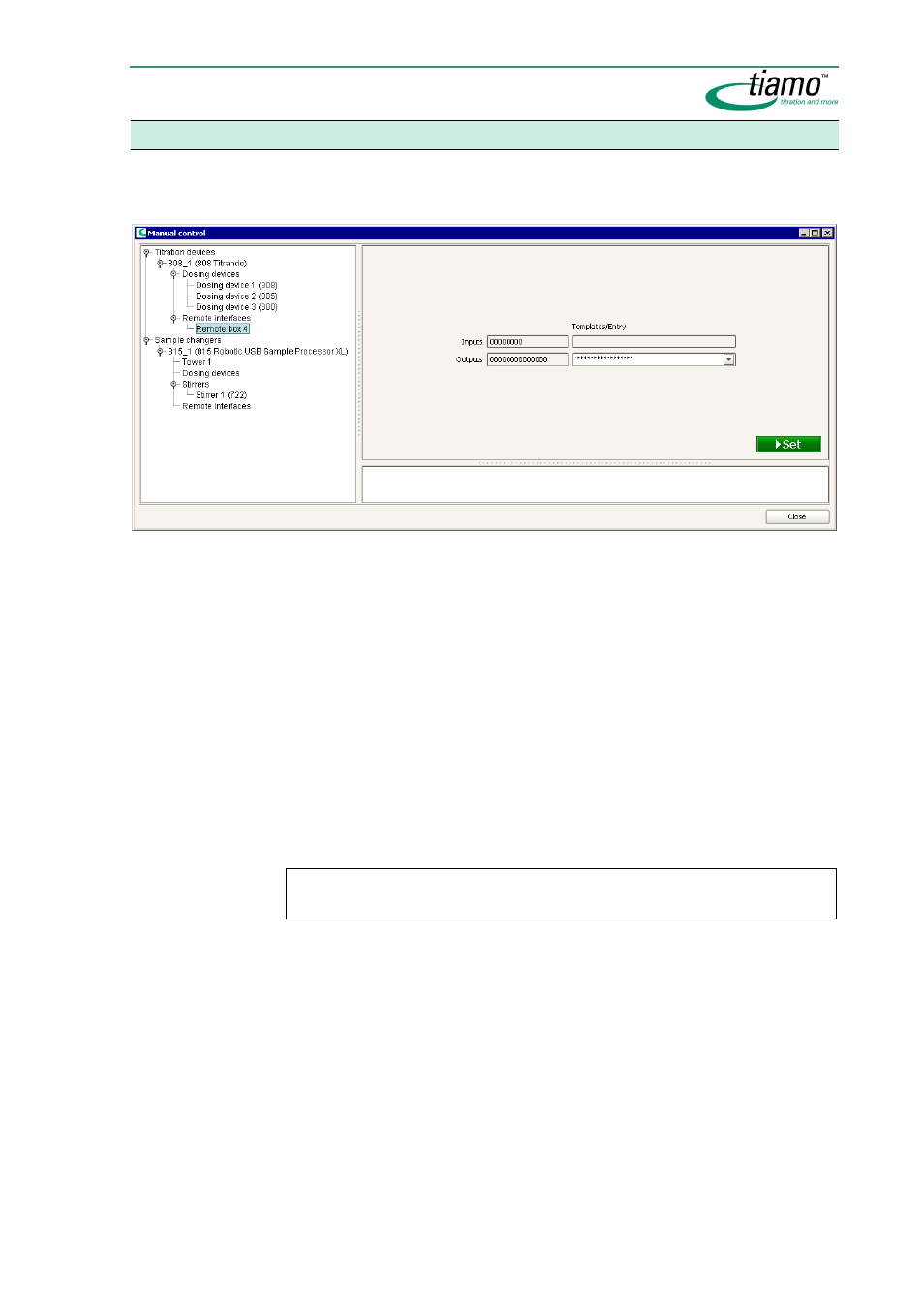

2.6.7 Remote functions
If in the subwindow for Select device a remote box or remote interface is selected
then in the subwindow for Functions/Parameters the functions and parameters
that are possible for the device will appear.
Devices
The remote functions can be carried out with the following instruments:
Titrino: 702*, 716*, 718*, 719*, 720*, 721*, 736*, 751, 758, 784, 785, 794*, 795,
798, 799 (* instruments with only 3 outputs)
Titrando: 808, 809, 835, 836, 841, 842, 846, 855, 857, 888, 890
Coulometer: 756, 831
Sample Changer: 730, 774, 778, 789, 814, 815, 855
Inputs
Current status
Shows the current status of the 8 input lines.
Templates/Entry
If the current status corresponds to one of the defined Templates for the in-
puts then the corresponding name will be shown here.
Note
Only templates without stars
* are recognized.
Outputs
Current status
Shows the current status of the 14 output lines.
Templates/Entry
Binary pattern consisting of exactly 14 characters (0, 1, *, p), [
************** ], signal template
Input of the binary pattern for the output signal of exactly 14 characters or
selects a predefined Signal template.
The following characters can be entered:
0 = line inactive,
1 = line active,
* = any line status
p = set impulse (not for 730, 774, 778, 789). The impulse length is 200 ms.
