Subwindow Rack data 813
Shift position
[ 0 ] ... 235 mm
Shift position for Lift 2. Each time that the rack rotates the lift will move to
this position if it is located at a lower lift position. If the lift is located at a
higher lift position than that defined here then the rotation will take place at
the current lift position. This means that the shift position must be selected
so that a safe rotation over the whole rack is possible at any time.
Special position
[ 0 ] ... 235 mm
Special position for Lift 2. This additional definable position can be used
e.g. during pipetting so that the tip is just immersed in the sample solution.

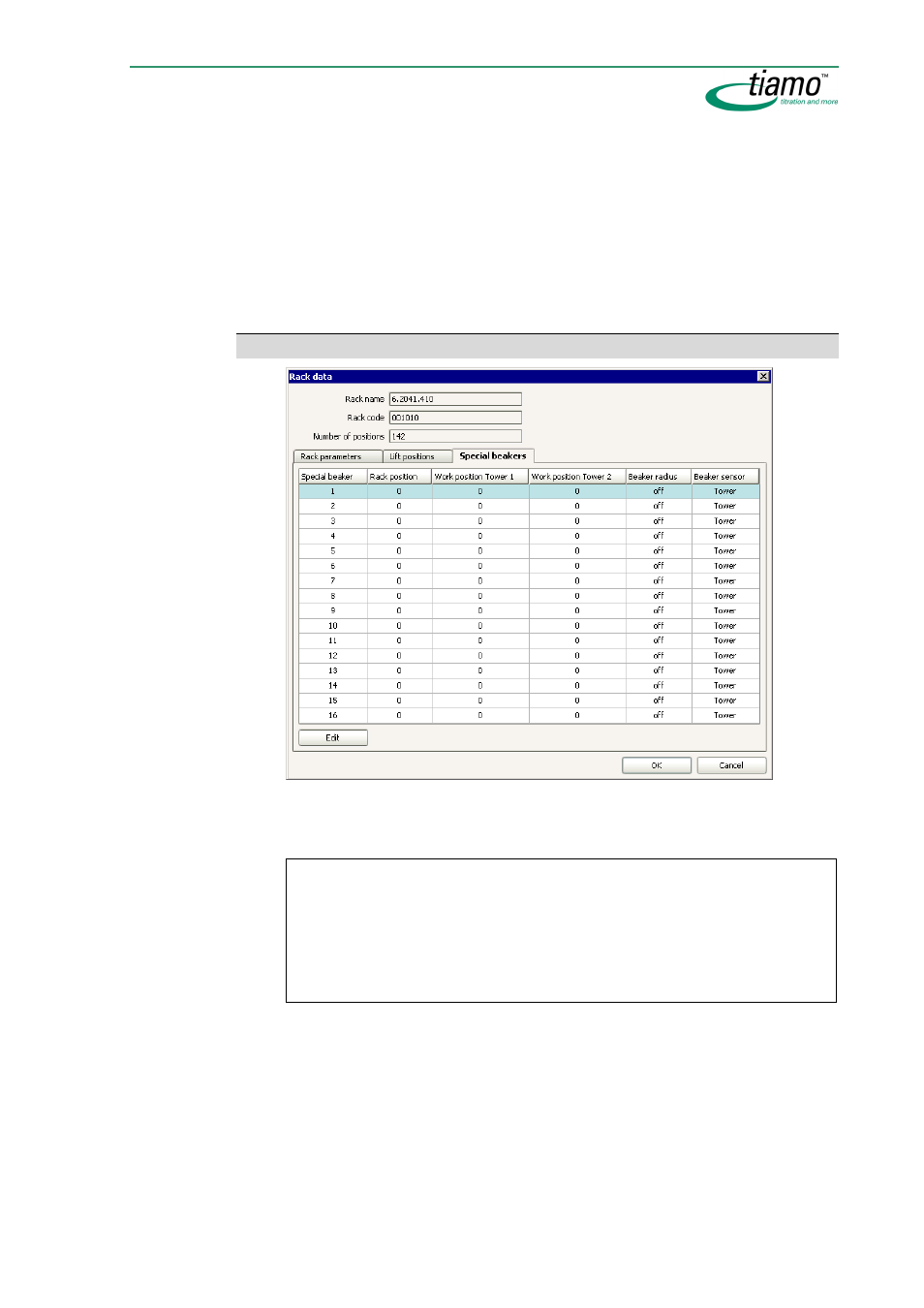

Special beakers
The table shows all the data of all the special beakers of the attached rack in tabu-
lar form. Each special beaker can be assigned to any position on the rack. The
table cannot be edited directly.
Note
Special beakers should preferably be set at high rack positions, so that a sam-
ple series can start at rack position 1. Rack positions that are defined as special
beakers are no longer available as sample positions. A specific work position
can be defined for each special beaker at Tower 1 and Tower 2 (if present). The
shift, rinse and special positions for the particular tower are taken over from the
general rack positions.
The following columns are shown in the table:
Special beaker
Number of the special beaker for the selected rack.
Rack position
Number of the rack position for the special beaker.
Work position Tower 1
Work position for the special beaker at Tower 1.
Work position Tower 2
Work position for the special beaker at Tower 2.
