Subwindow Rack data 811

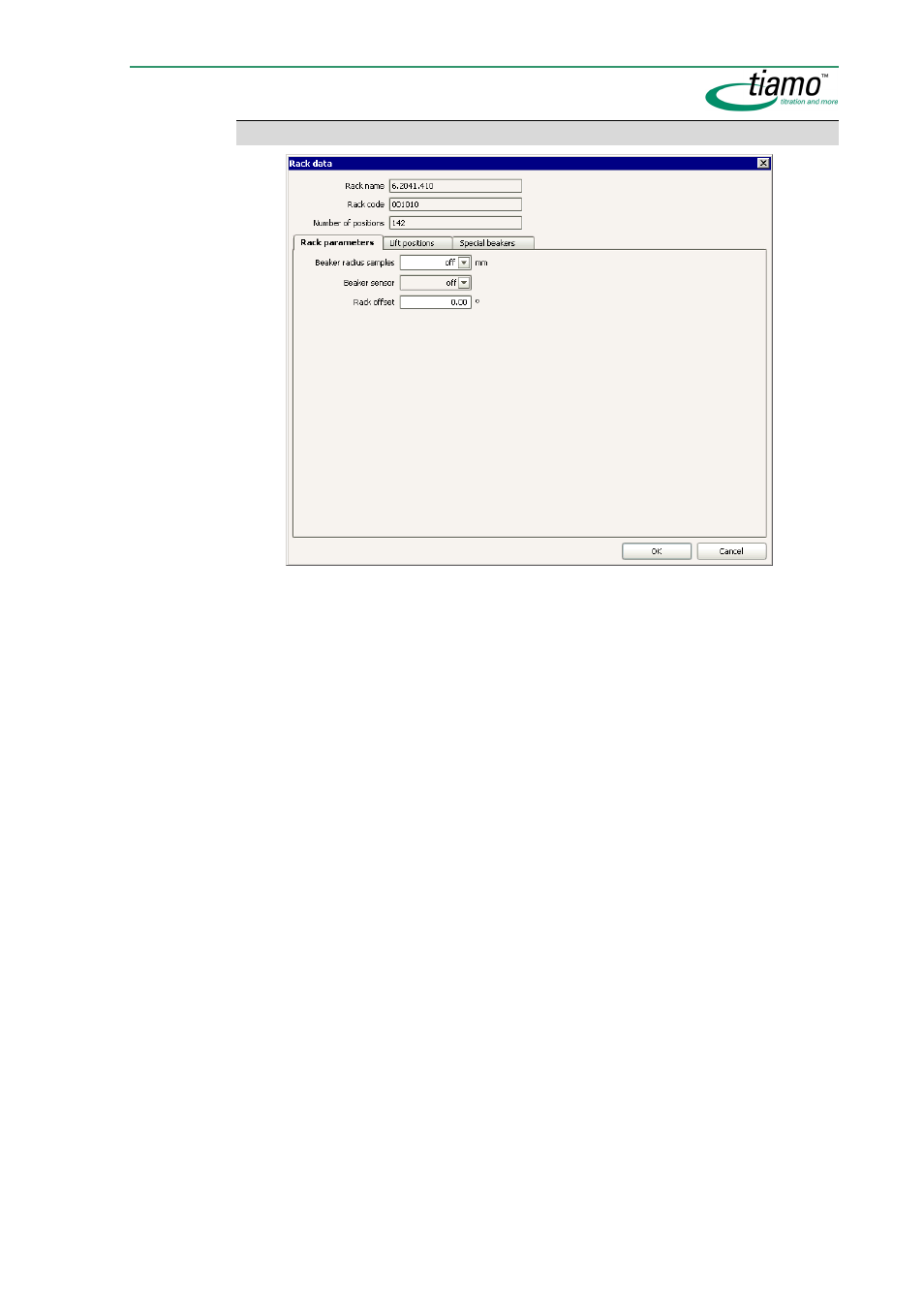

Rack parameters
Beaker radius samples
1.0 ... 100.0 mm, [ off ]
Radius of the sample beakers on the rack. If the lift is moved to the work
position then this value will be compared with the parameter
Min. beaker ra-
dius (see Properties Tower #) that can be specifically defined for each
tower. If Beaker radius samples < Min. beaker radius then a corresponding er-
ror message will appear. With off the beaker radius will not be checked.
Beaker sensor
[ Tower ], Robotic arm, off
When a sample position is moved to with the command MOVE then the
beaker sensor ( Tower , Robotic arm ) checks whether the special beaker is
present or not. With off no check will be made. For the option Robotic arm a
swing head with beaker sensor must be installed and a suitable work posi-
tion with beaker contact must be defined for the lift, as this must move to
the beaker recognition position.
With the parameter
Beaker test in the command MOVE you can determine
whether the determination is to be terminated if a beaker is missing with or
without the display of a corresponding message and whether the series is
to be continued or also terminated.
Rack offset
-5.00 ... [ 0.00 ] ... 5.00 °
The rack offset is a production-dependent tolerance value between the up-
per part of the rack and the lower part. The rack offset value is determined
during rack adjustment and shown here. It can be edited if necessary.
