Subwindow Devices 743
Opens the dialog window Load new program version .
Old version
Shows the old device program version.
New version
Shows the new device program version to be loaded.
Loads new program version.
Note
Make sure that the device is not manipulated or switched off during the loading
process and follow the instructions shown.

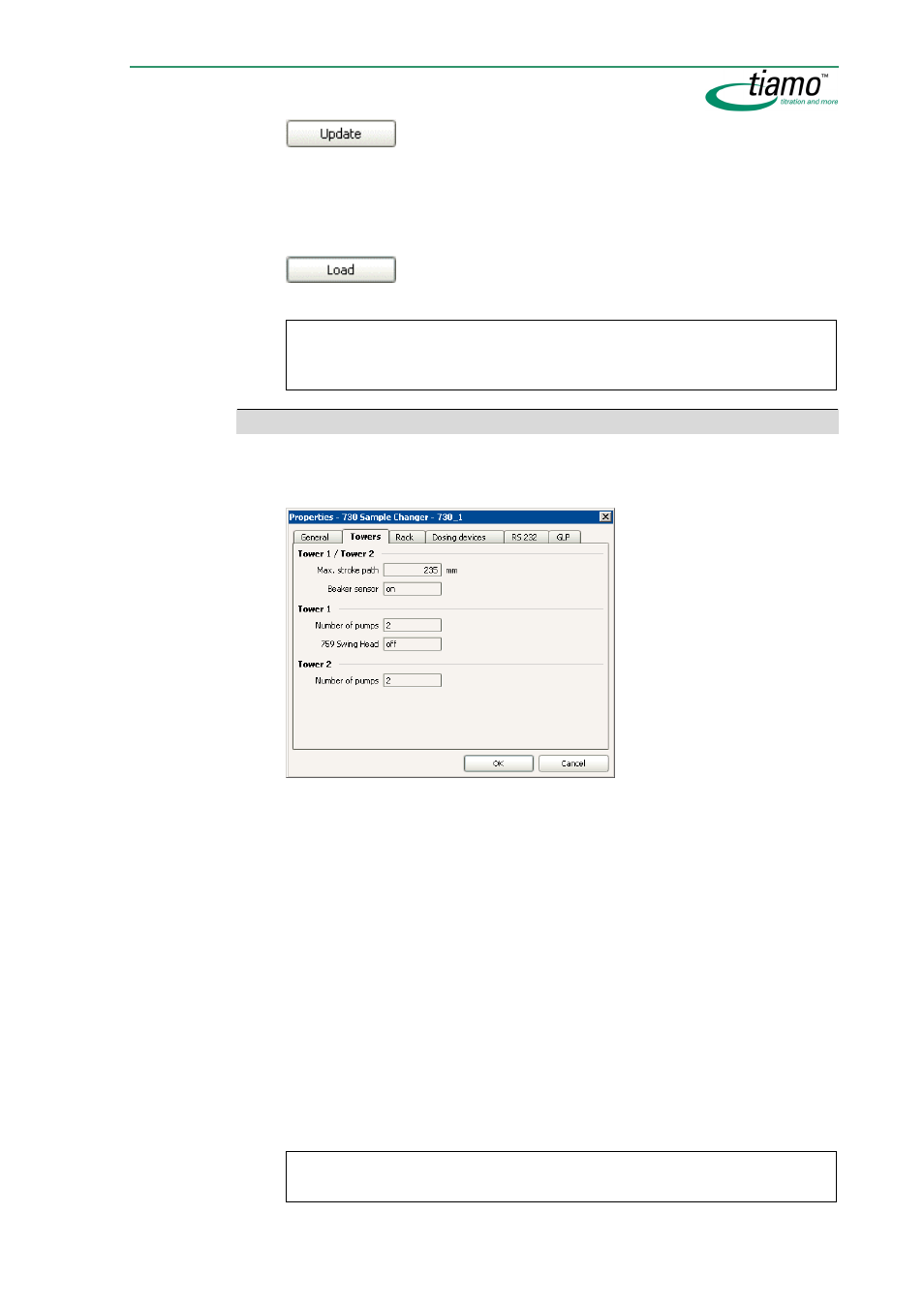

Towers
On the tab Towers the tower parameters for Tower 1 and Tower 2 (if present) are
shown for the 730 Sample Changer. These cannot be edited, but must be set on
the device itself via the keyboard.
Tower 1 / Tower 2
Max. stroke path
Shows the lowest permitted lift position for the two towers. A lift height of 0
mm corresponds to the "Rest position", i.e. the lift is moved right to the top.
Beaker sensor
Shows whether the beaker sensor for the two towers is switched on or off.
Each time that a sample position is moved to the beaker sensor checks
whether a beaker is present or not.
Tower 1
Number of pumps
Shows how many pumps are connected to Tower 1.
759 Swing Head
Shows whether a swing head is mounted on Tower 1.
Tower 2
Number of pumps
Shows how many pumps are connected to Tower 1.
Note
A swing head can only be mounted on Tower 1.
