Part 1 Specification

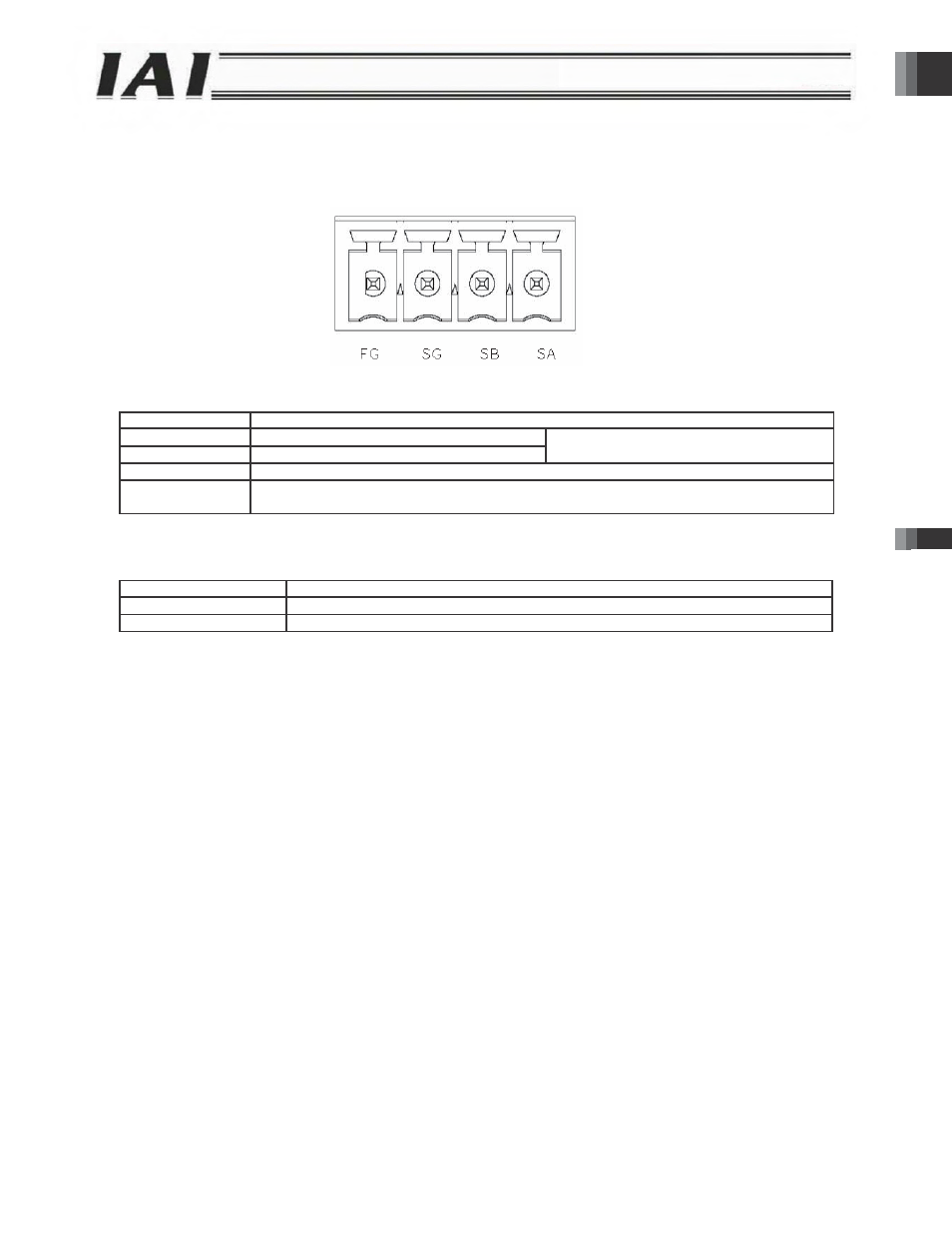

(5) RS485 SIO (RGW- SIO)
RGW-SI O connector: MC1.5/4-G- 3.5 (by Phoenix Contact)
Cable-end connector: MC1.5/4-ST -3.5 (by Phoenix Contact) = Standard accessory
SIO communication connector
Signal name Explanation
SA Communication line A (+) Built-in terminal resistor (2 20

) conform
SB Communication line B (-) to RS485
SG Signal ground
FG
Frame ground
This signal is connected to the enclosure.
Applicable Wire for Cable-end Connector
Item Description
Applicable wire size Stranded wire: AWG28 t o 16 (0.14 to 1 .5 mm
2
)
Cable stripping length 7 mm
