Part 2 Startup Chapter
Chapter 5 Network Setup
302
Part 2 Startup Chapter

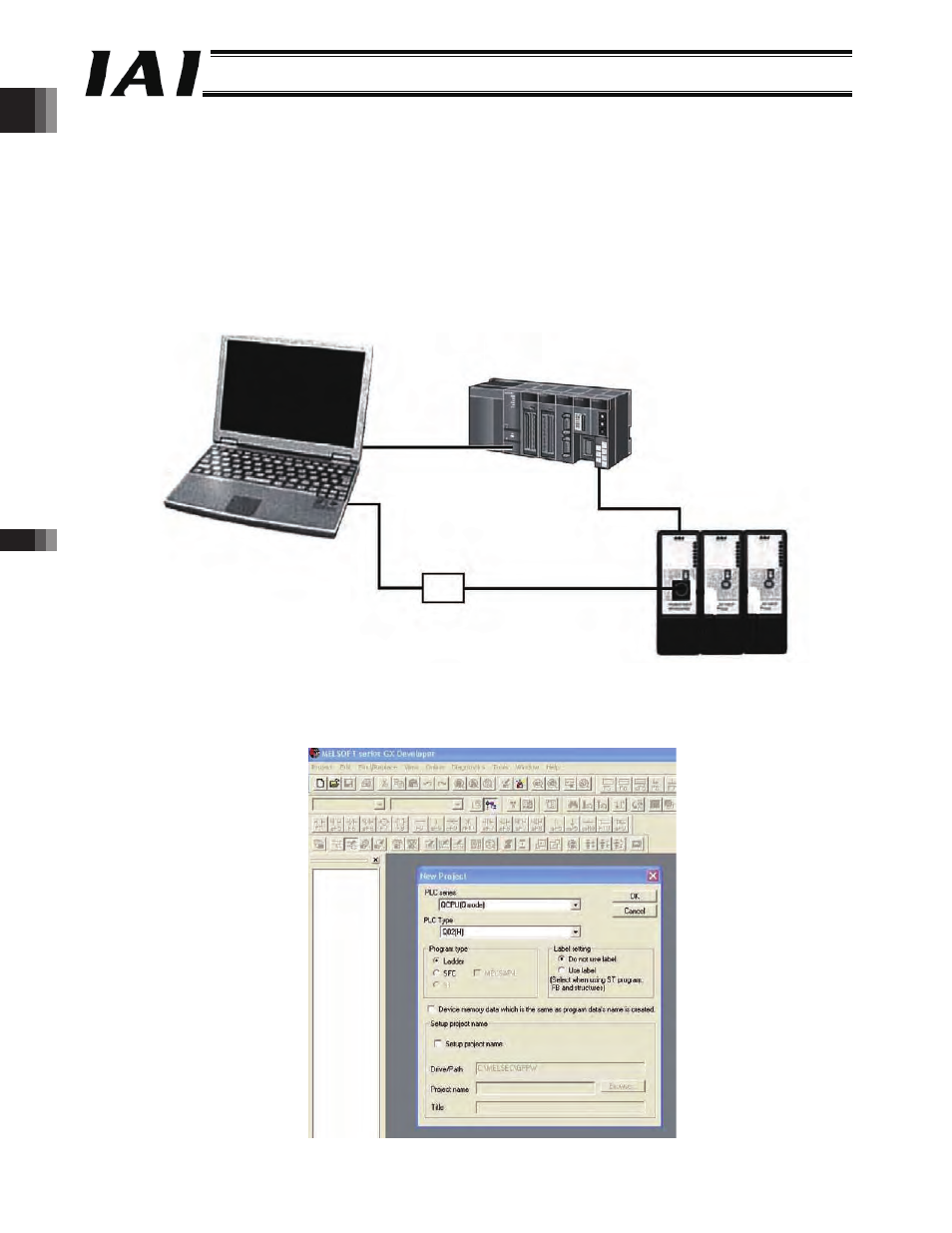

PLC
ROBONET
Refer to a separately provided
operation manual for your PLC
when connecting the PLC to a
PC.
[For connection of a PLC with ROBONET,
refer to 2.2.8.]
Connecting a PC with an USB:
CB-SEL-USB030, RCB-CV-USB and CB-RCA-SI0050
Connecting a PC with RS485:
RCB-CV-MW and CB-RCA-SI0050
5.2 Setting Up the Master
5.2.1 CC-Link
To operate a CC-Link system, the network parameters of the PLC must be set. These parameters are set using Mitsubishi
Electric’s sequencer programming software GX-Developer.
x Network parameters
These parameters are set in the master station and include the number of CC-Link units connected, buffer memory of the
master station (RX, RY, etc.), address of the CPU device to be refreshed automatically, number of retries after failed
communication, and station information.
How each parameter is set is explained below, along with a setting example. For details, refer to the CC-Link operation
manual for your PLC.
(1) Launching GX-Developer
Launch GX-Developer and click New Project from the Project menu. The screen below opens.
Set the series and type of the applicable PC. In this example, “QCPU (Q mode)” and “Q00” are set under “PC Series”
and “ PC Type,” respectively. Click the OK button.
