Part 2 Startup Chapter
Chapter 2 Mounting and Installation
247
Part 2 Startup Chapter
(3)

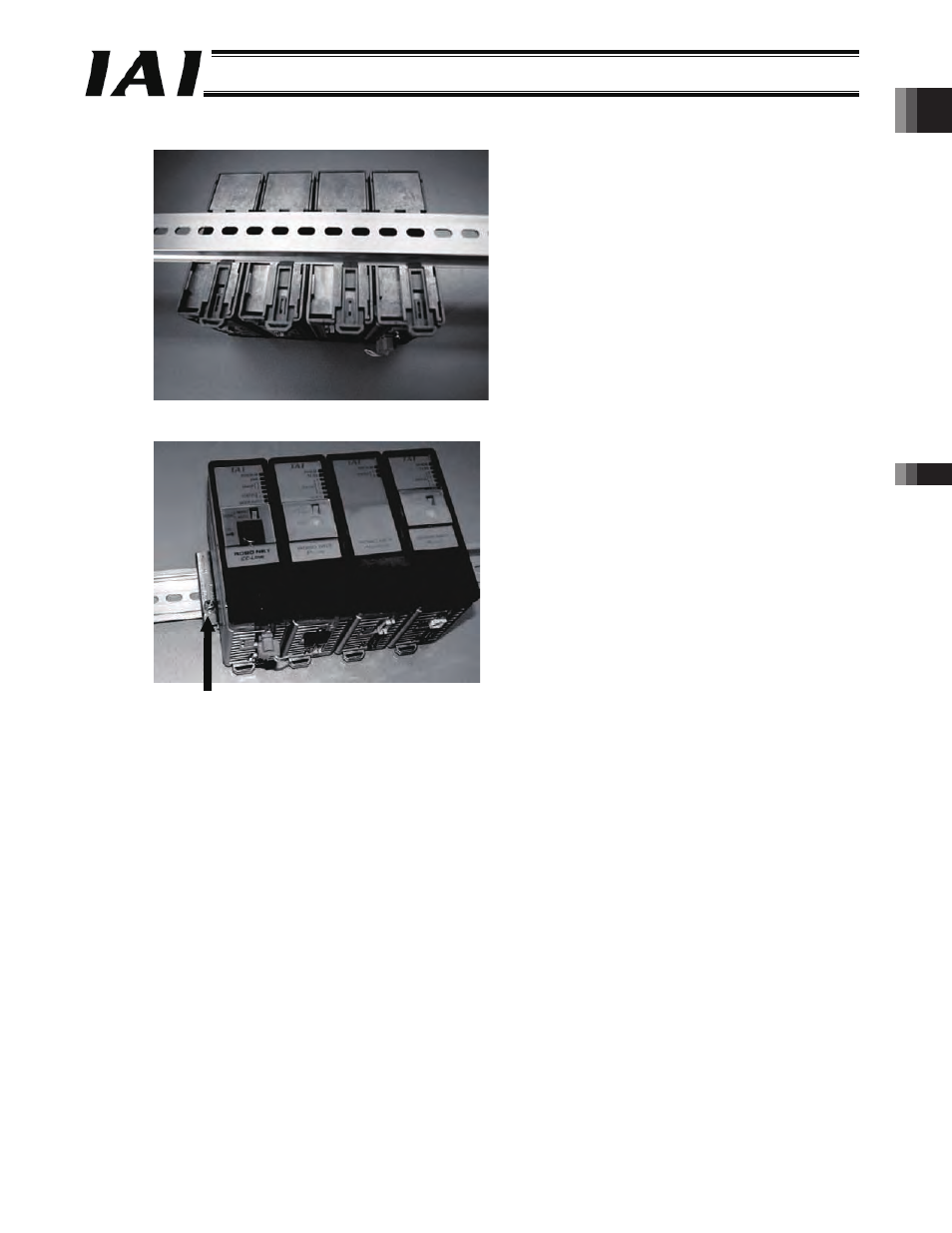

Mount all necessary units on the DIN rail.
(4)
After the necessary units have been installed, be sure to set two affixing equipments on both ends to affix the
units.
Orient each affixing equipment so that the arrow points upward. Hook the bottom of the end plate on the DIN rail,
hook the top, and then pull down the plate. Tighten the screws to affix the end plate in place.
-271-
