Part 2 Startup Chapter
Chapter 5 Network Setup
322
Part 2 Startup Chapter

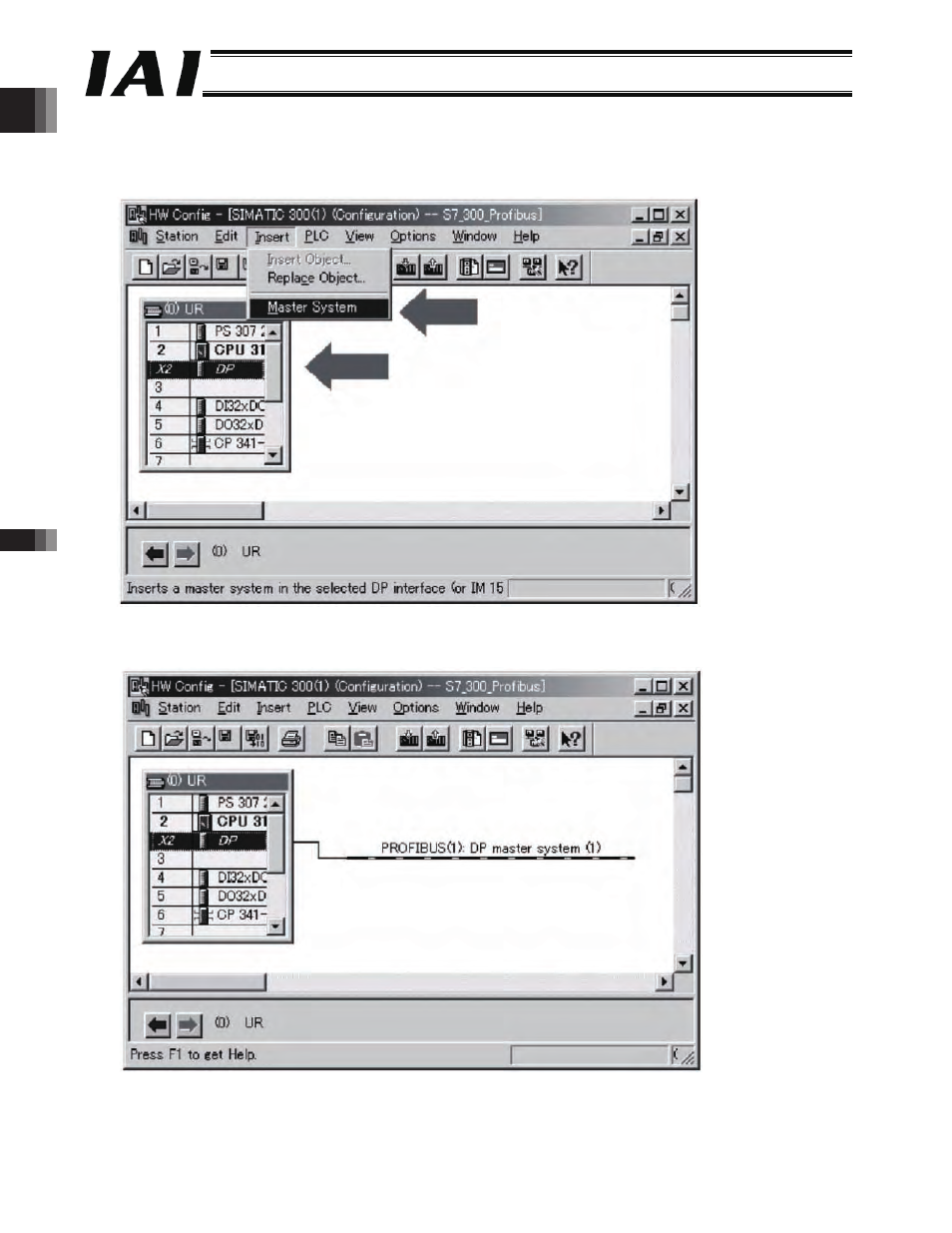

(2) Inserting the Profibus-DP master system
Select
Insert from the menu bar, select Master System in the pull-down menu, and left-click DP.
The Profibus-DP master system is inserted.
When the insertion has been successful, the master system is displayed as shown below.
-348-
