Part 2 Startup Chapter
Chapter 5 Network Setup
307
Part 2 Startup Chapter
[2] Writing

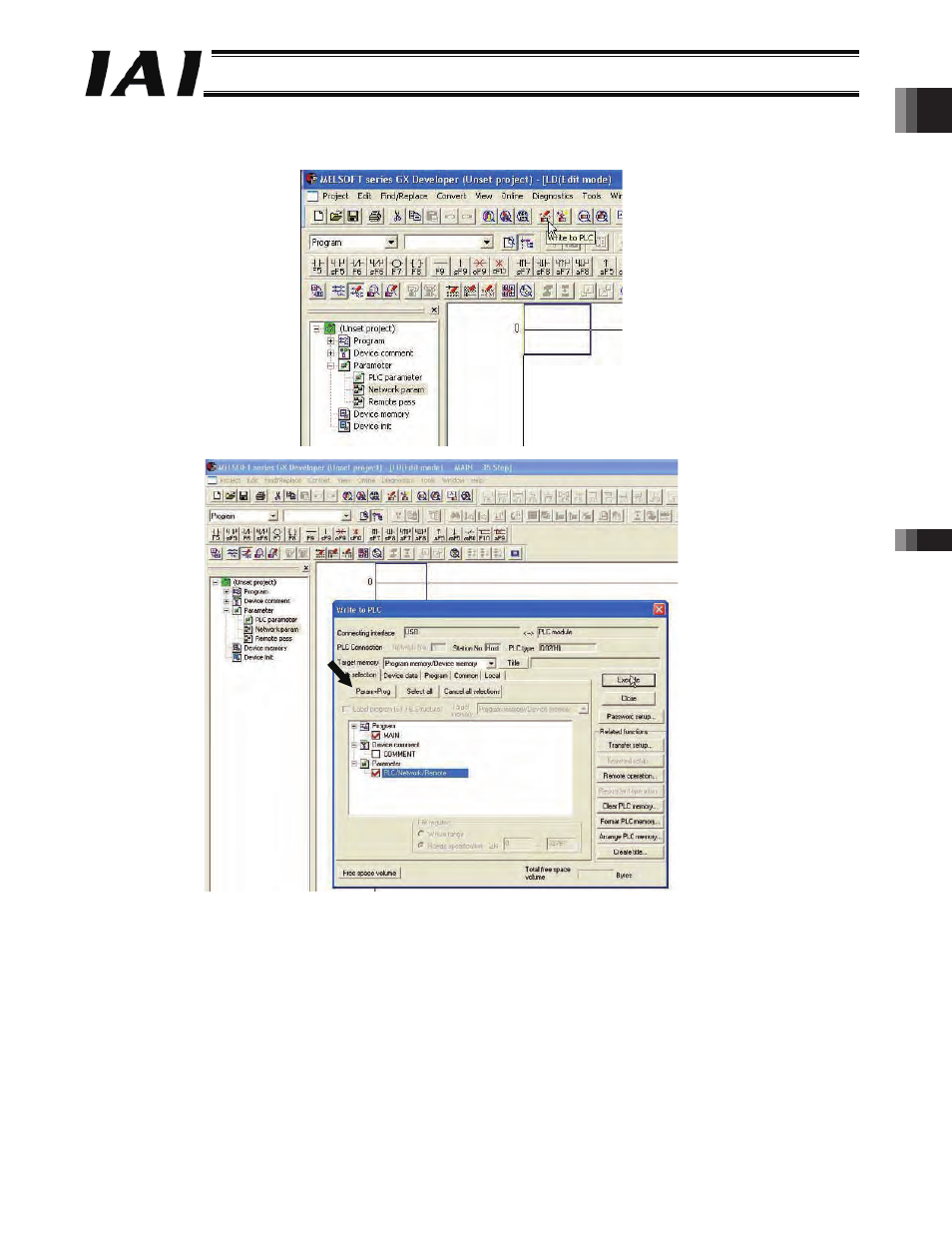

Click the PC write tool button to display the PC write dialog box.
In the PC write dialog box, click the Parameters + Programs button and then select “MAIN” and “PC/Network”
under “Programs” and “Parameters,” respectively.
Clicking the Write button starts the writing of parameters. When all parameters have been written, a confirmation
message box appears. Click OK and then Close to complete the parameter write.
[3] Resetting the PLC-CPU
The parameters will become effective when the CPU of the PLC is reset.
-333-
