Part 2 Startup Chapter
Chapter 5 Network Setup
319
Part 2 Startup Chapter
(5) Transferring the Settings
Bring the PLC connection online and transfer the settings.
If the CX-Programmer and other connections are online, bring them offline or terminate the connections.
When the settings have been successfully transferred, a remote I/O communication will start automatically.

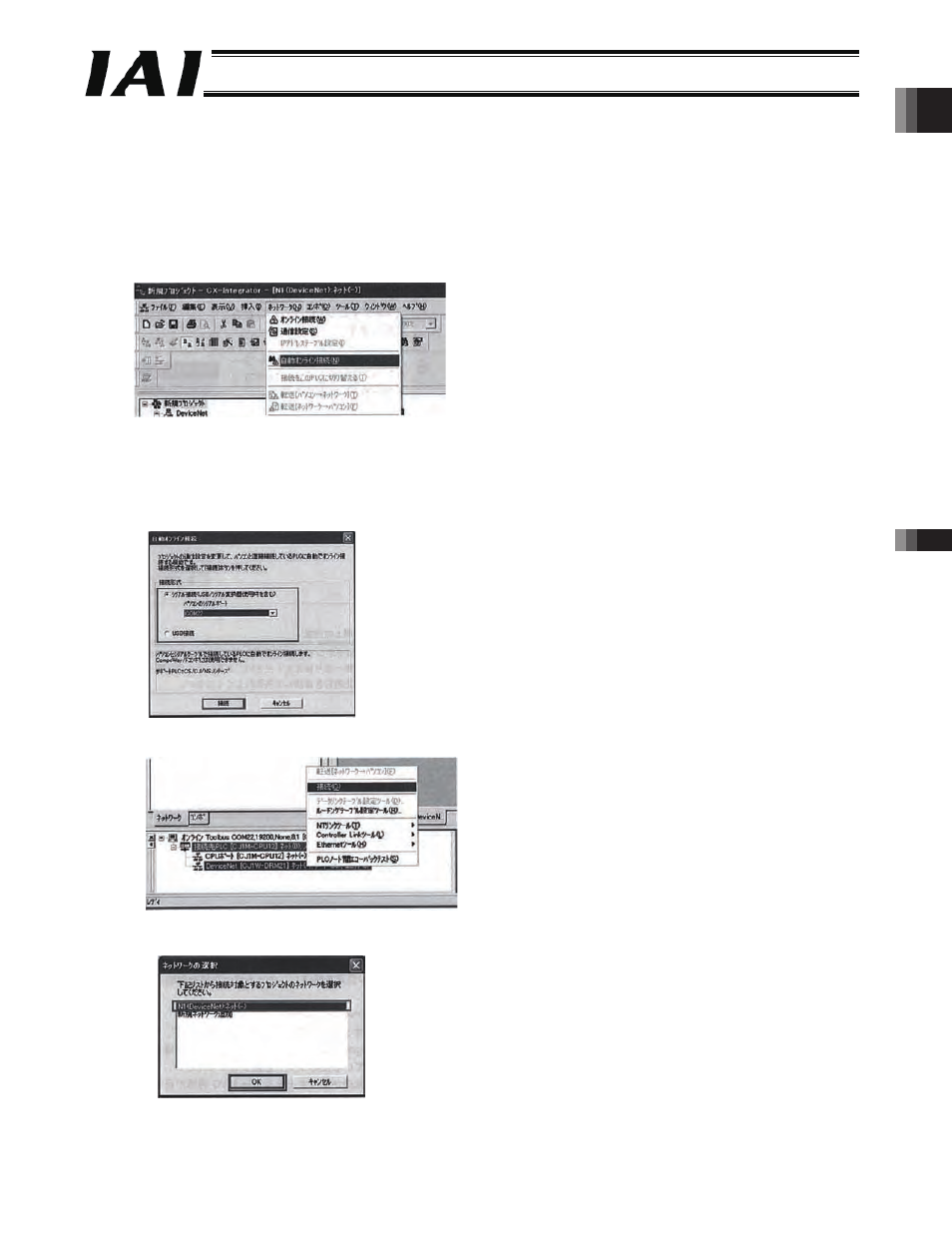

[1] Transferring the settings to the PLC
x Select [Network] from the menu bar, and then select [Automatic Online Connection].
x Select “Serial Connection” in the [Direct Connection] screen.
x Select the COM port number to which the PLC is connected in the “PC serial port” field.
x Click [Connect].
* If multiple “PC serial ports” exist, open Window’s Device Manager, and select the same port as the “COM port
number” described under “Ports (COM & LPT).”
x Right-click [DeviceNet] in the “Online Connection Information window” and select [Connect].
x Select [DeviceNet] in the [Network Selection] dialog box, and click [OK].
