Part 2 Startup Chapter
Chapter 5 Network Setup
321
Part 2 Startup Chapter

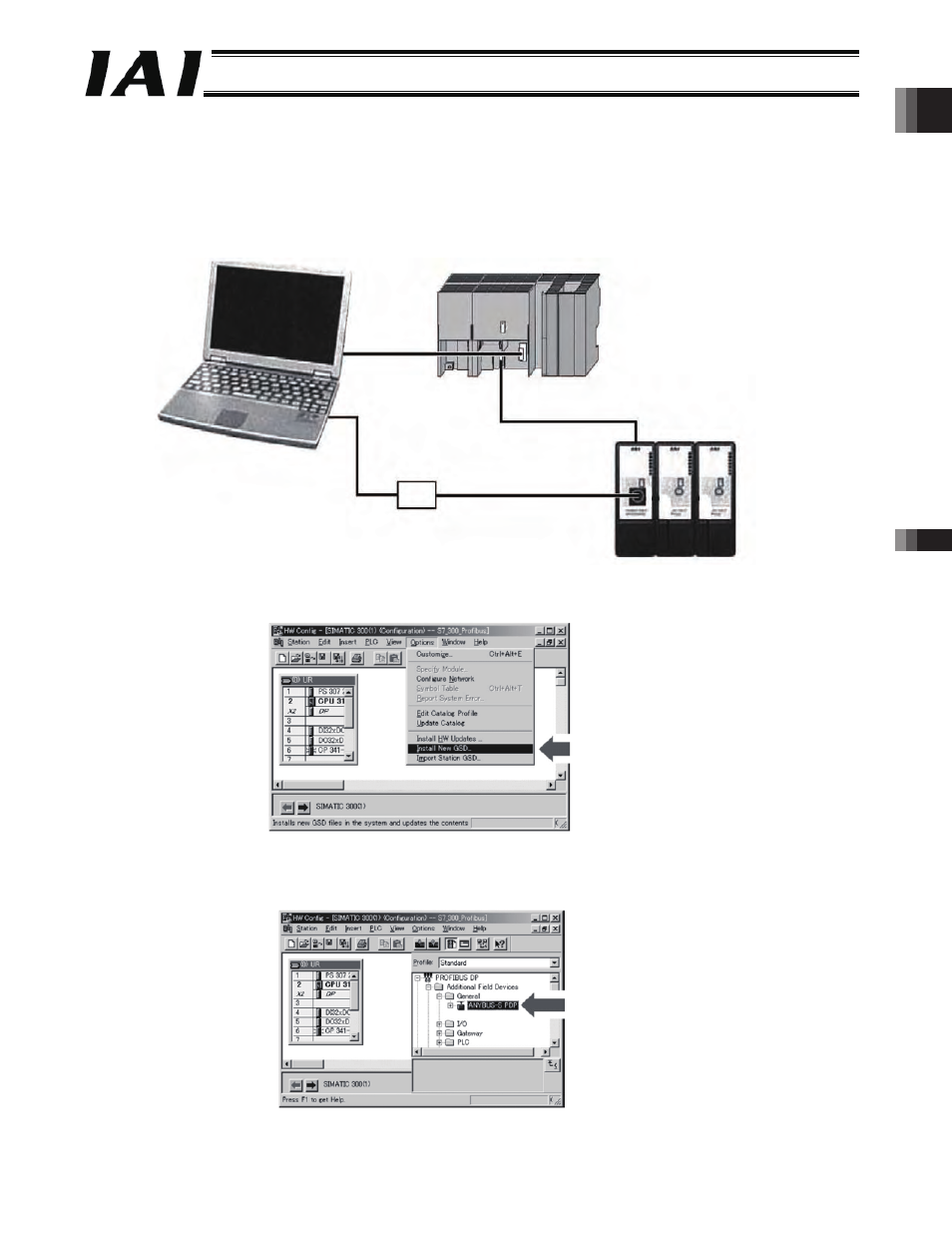

PLC
ROBONET
Refer to a separately
provided operation manual
for your PLC when
connecting the PLC to a
PC.
[For connection of a PLC with ROBONET,
refer to 2.2.8.]
Connecting a PC with an USB:
CB-SEL-USB030, RCB-CV-USB and CB-RCA-SI0050
Connecting a PC with RS485:
RCB-CV-MW and CB-RCA-SI0050
5.2.3 Profibus
(1) Installing the GSD file
An example of installation using Siemens’s STEP7 HardWare Configuration (hereinafter referred to as “HW Config”) is
explained. To define a gateway, a GSD file for the gateway must be downloaded in advance. The GSD file you need is
“IAIOB2F.gsd,” which can be downloaded from our website.
In this section, the procedure is explained using the following system configuration as an example.
Launch the HW Config software and install the downloaded GSD file. Select Options from the menu bar and left-click
Install New GSD in the pull-down menu.
When the GSD file has been successfully imported, a new “ANYBUS-PDP” level is created in the catalog window of HW
Config, as shown below.
