5.4 Name/Function of Each Part and External Dimensions

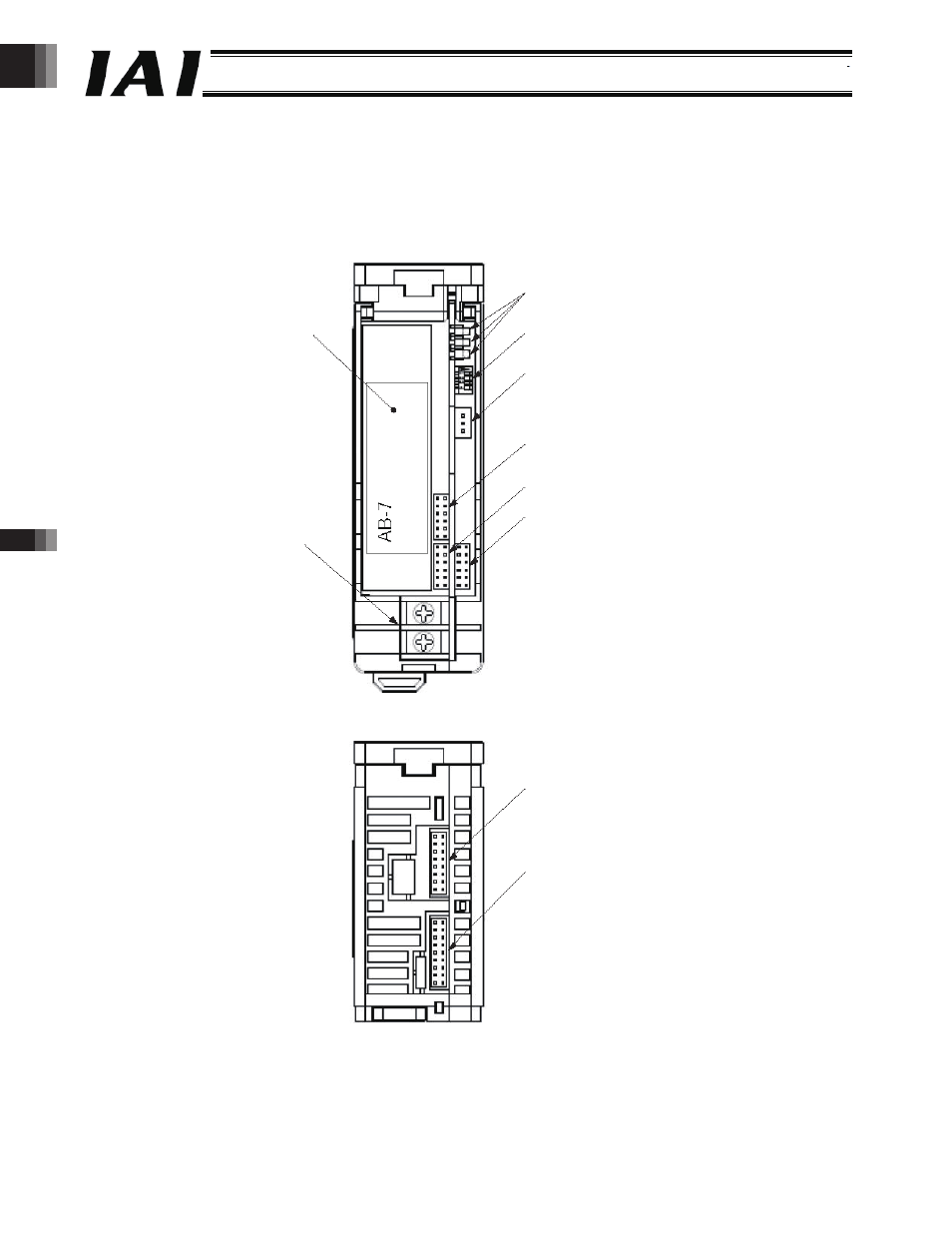

5.4.1 Name of Each Part
Front view
[4] Ni-MH battery
[5] Power-supply terminal block
[1] Status indicator LEDs
[2] Setting switches
[3] Backup battery connector
[8] Host controller connector
[9] ROBONET communication connector
[10] ROBONET communication connector
[6] RCP2, RCP3 actuator connector
[7] RCA, RCA2, RCL actuator connector
re
fe
re
nc
e
ba
tte
ry
re
pl
ac
em
en
t t
im
in
g
Down view
