(10) Monitor Function
y You can monitor data received from the master and data sent to the master.
y You can also check how many communication errors (ERR-T, ERR-C) have occurred.
Caution
To use the monitor function, be sure to set the MODE switch on the Gateway R unit to the AUTO position. If this switch is in
the MANU position, invalid data is displayed.

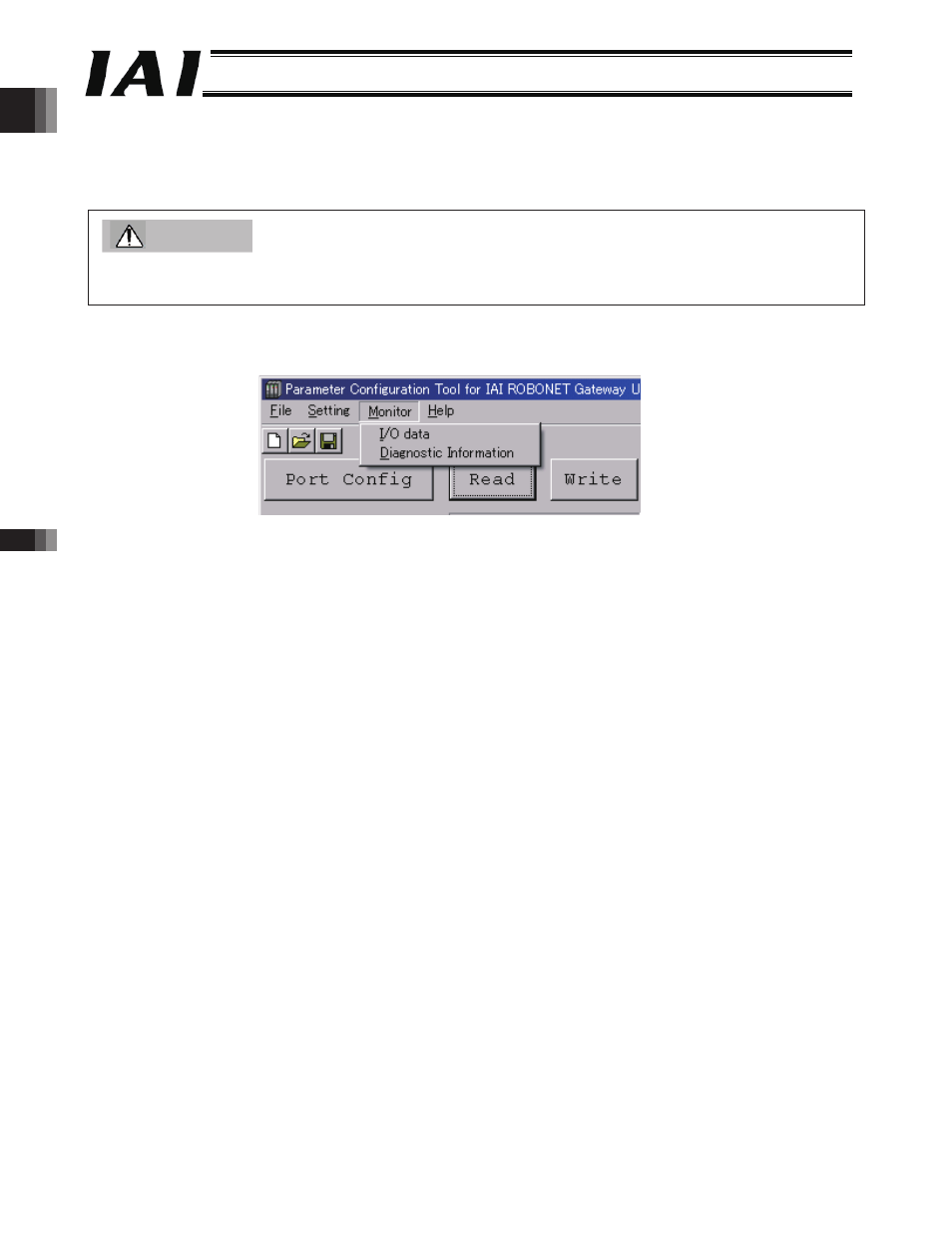

[1] Clicking [Monitor] from the menu bar on the main screen of the ROBONET gateway parameter setting tool
opens the drop-down menu where you can select [I/O Data] or [Diagnostic Information] as shown below.
