Part 1 Specification
(4) EtherNet/IP
For details, check the operation manual for the master (PLC) and ODVA documents.

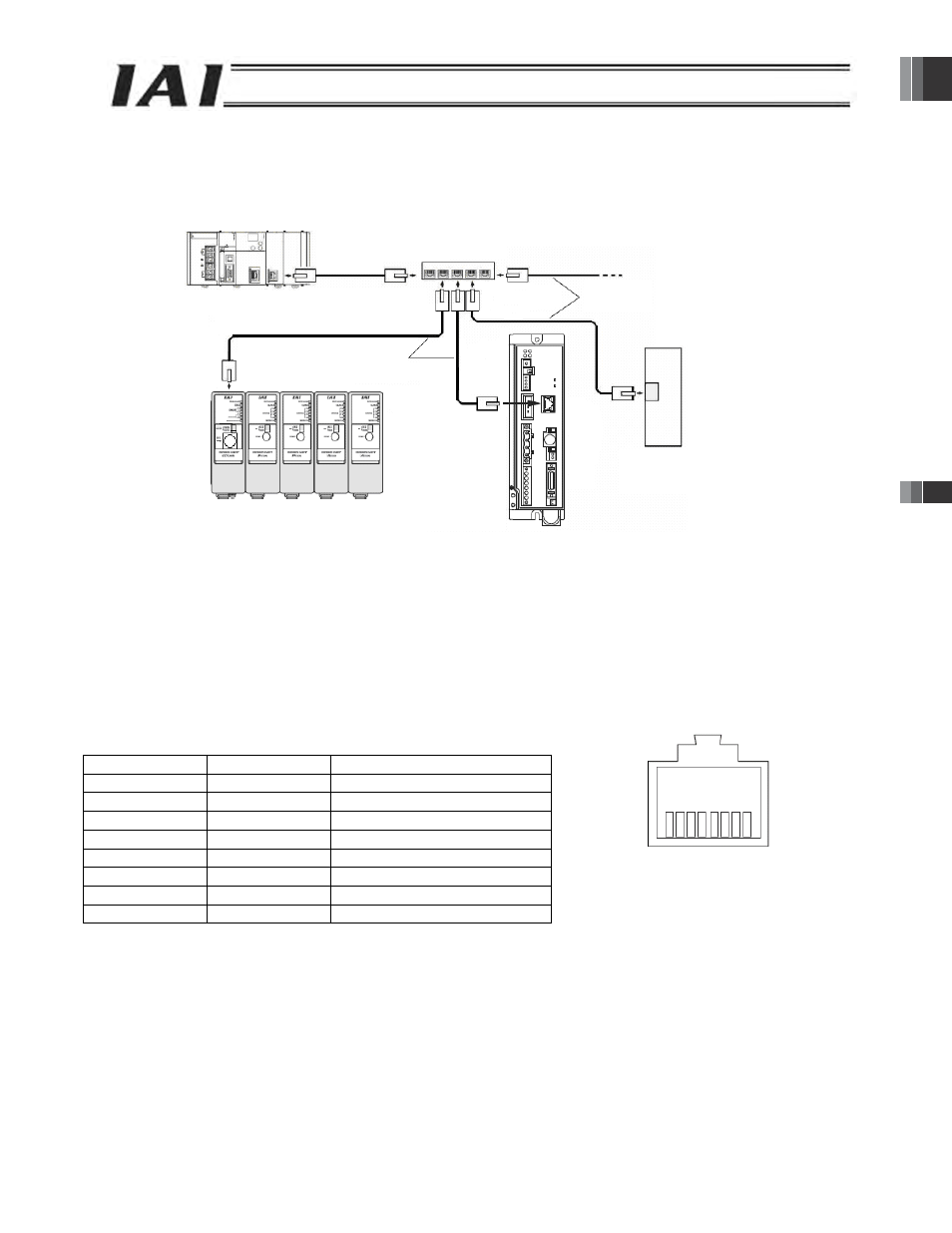

An example of network connection is shown below.
* Ethernet cable: Straight cable of category 5e or above, 100 m max
(Aluminum tape and braided double-shielded cable are recommended.)
(Note) Terminal processing is not required.
(Note) It is recommended that each device be grounded by equi-potential bonding.
EtherNet/IP communication connector: 8P8C modular jack
For the Ethernet cable, use a straight STP cable of category 5e or higher.
Pin number Signal name Explanation
1 TD+ Data transmitted +
2 TD- Data transmitted -
3 RD+ Data received +
4 - -
5 - -
6 RD- Data received -
7 - -
8 - -
PLC (EtherNet/IP master unit)
EtherNet cable*
EtherNet cable*
Hub
EtherNet
cable*
Other slaves
Other slaves
ROBONET
8 1
P
ar
t 1
S
p
ec
if
ica
tion
Ch
apt
er
3
G
atew
a
y
R
u
n
it
-293-
