[3] Transferring an I/O table

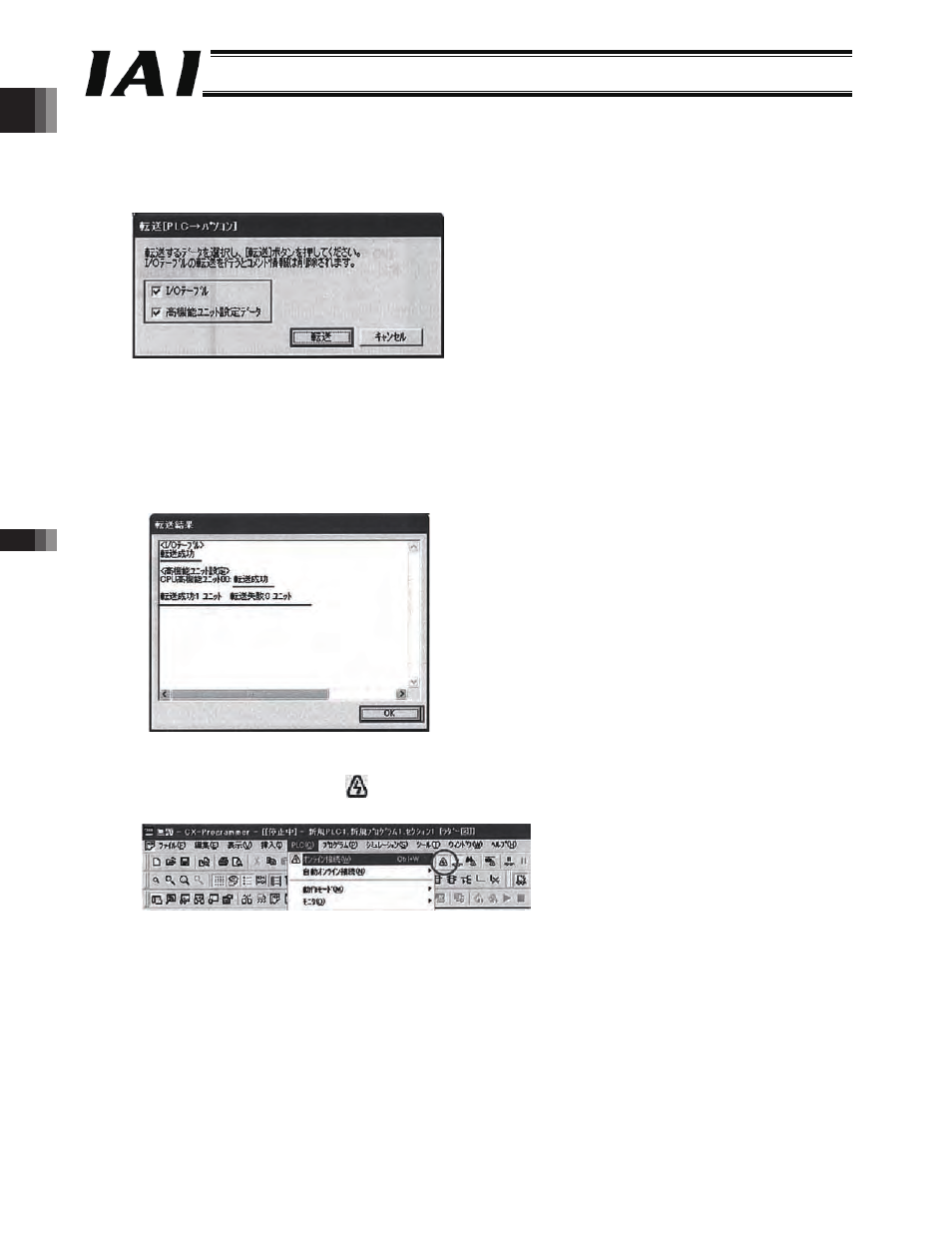

x When the [Transfer [PLC o PC]] dialog box appears, select the checkboxes for [I/O Table] and [High-Function
CPU Unit Settings Data], and click [Transfer].
x When the transfer has been successful, the [Transfer Result] dialog box will appear.
x If the result shows “Transfer successful: 1 unit” and “Transfer failed: 0 unit,” the I/O table has been successfully
created.
x Click [OK] after confirming that the transfer has been successful.
x Bring CX-Programmer offline. Select [PLC] from the menu bar and then select [Online Connection].
* The connection is offline if the “ icon” is not selected (not depressed).
