Part 2 Startup Chapter
Chapter 2 Mounting and Installation
249
Part 2 Startup Chapter
(3) Connecting a simple absolute connection board

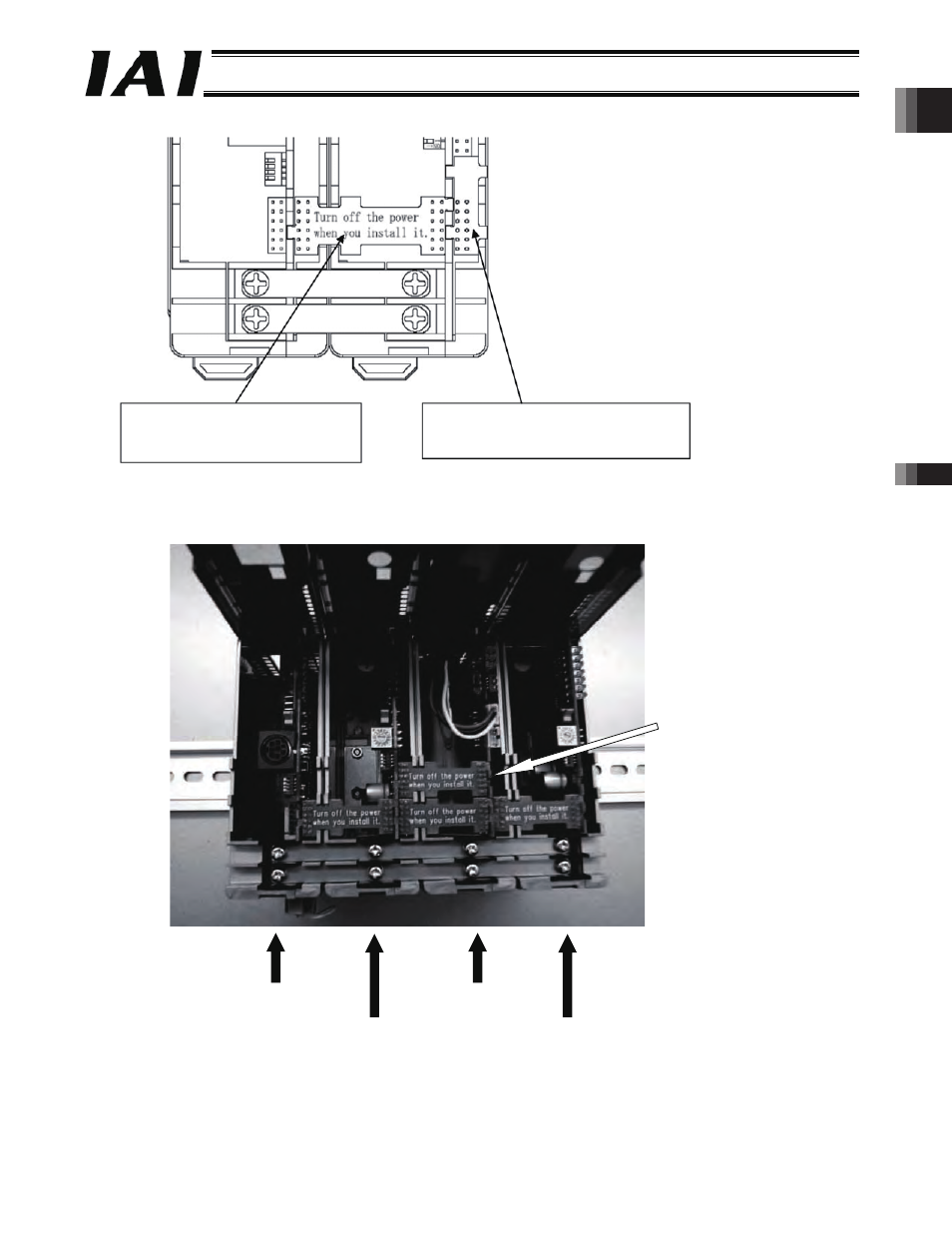

As shown below, place the simple absolute unit on the immediate right of the applicable controller unit and connect the
two using a simple absolute connection board (same as the ROBONET communication connection board). The simple
absolute R unit comes with a simple absolute connection board.
x Unit connection board
Connects adjacent units.
x Terminal resistor board
Installed in the unit at the far right.
Simple absolute
connection board
Gateway R unit
RPCON unit RACON unit
Simple absolute R unit
