[3] Installation in a panel
x

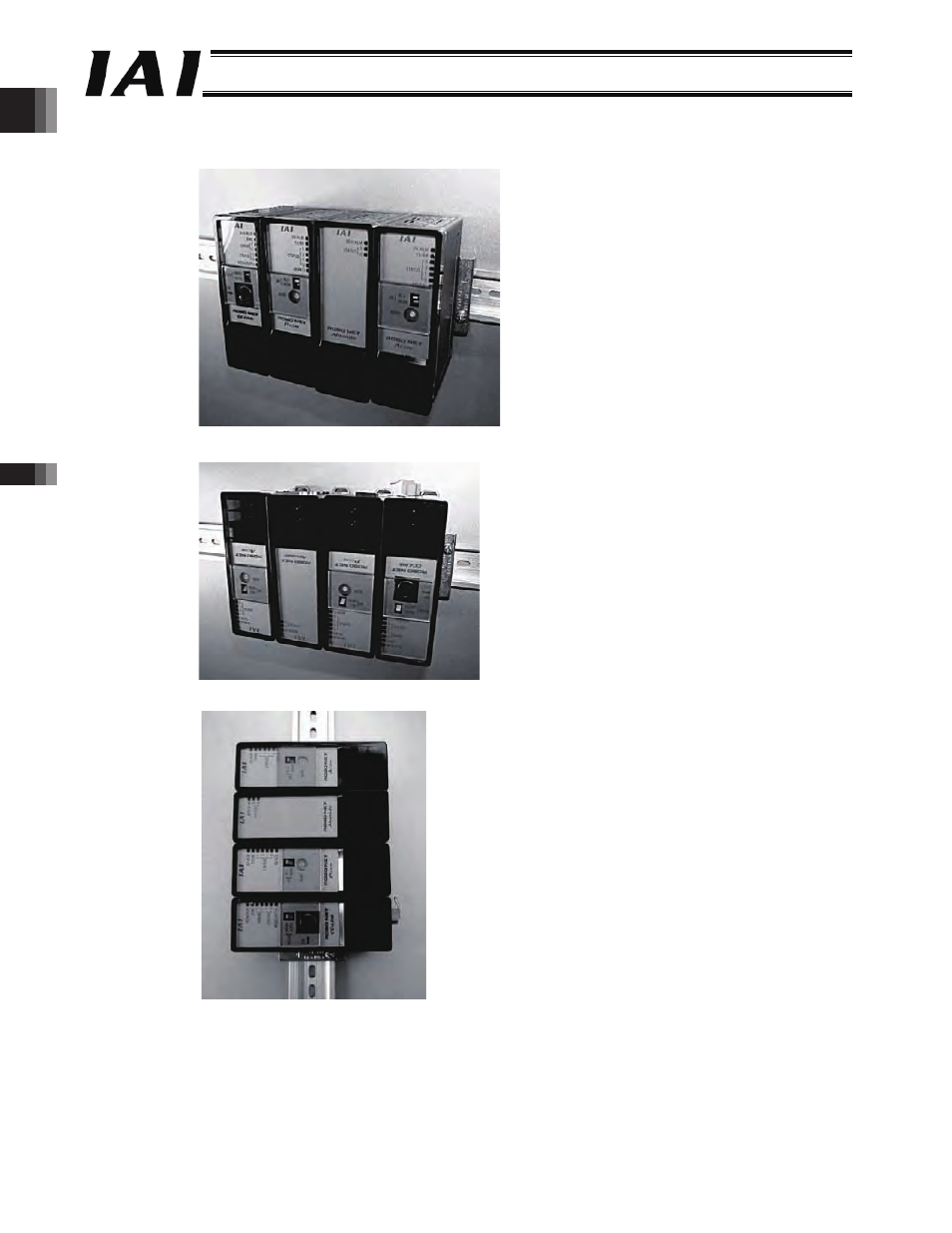

The ROBONET should be installed only in the manner shown below.
{
Installed correctly
x
Never install the ROBONET in the manners shown below.
X Installed upside down
X Installed sideways
