Example of Sequencing Multiple Processes
MTS MultiPurpose TestWare®
Working with MPT Processes
97
Example of Sequencing Multiple Processes

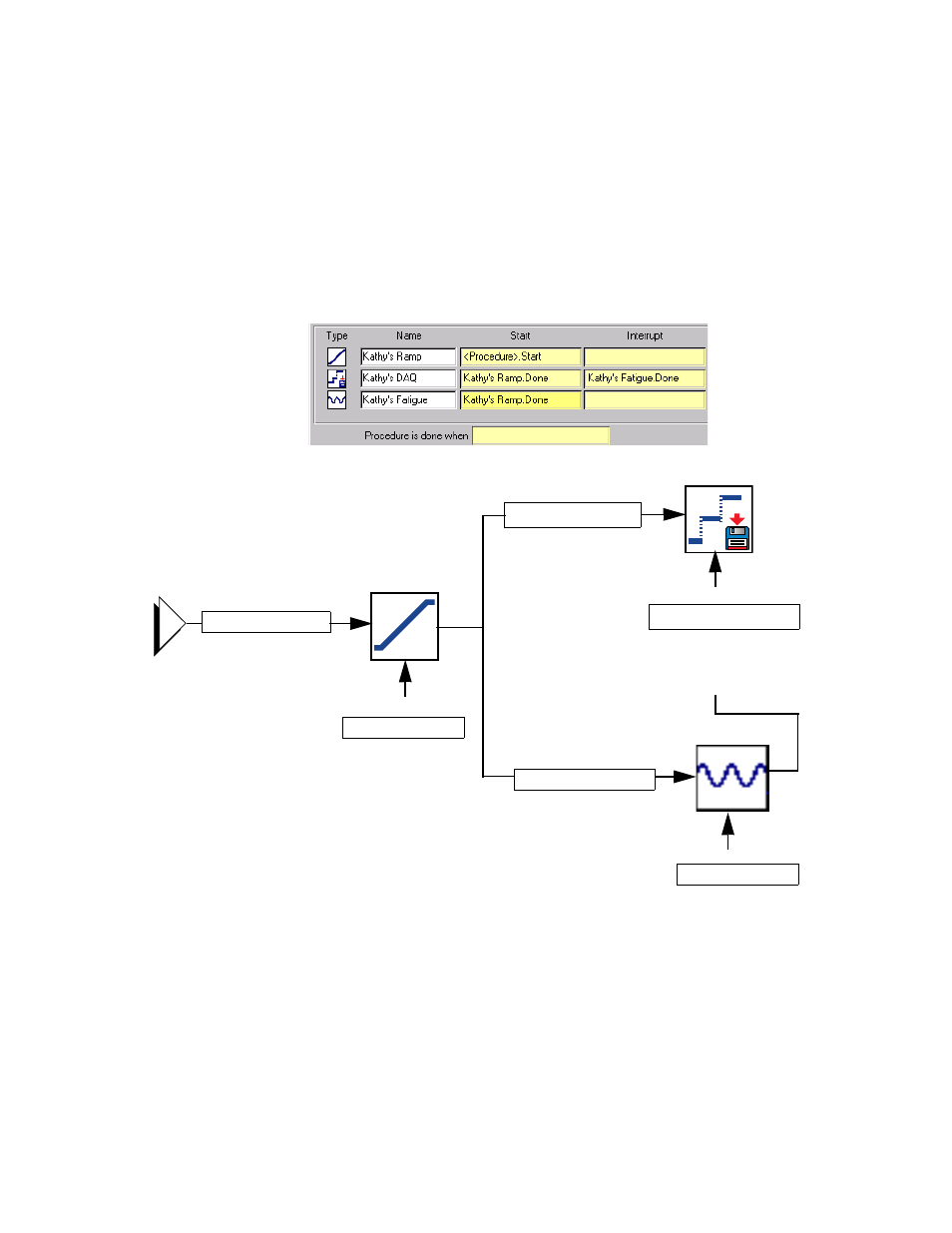

The window below contains three processes. The diagram that follows illustrates
the signals selected and available for each process.
Interrupt
Kathy’s Ramp.Done
Kathy’s DAQ.Done
none
Kathy’s Fatigue.Done
Kathy’s DAQ.Done
Start
Interrupt
Kathy’s Ramp
Kathy’s DAQ.Done
Kathy’s Fatigue.Done
Start
Kathy’s Fatigue.Done
Kathy’s Ramp.Done
Interrupt
Start
Kathy’s Ramp.Done
Kathy’s Fatigue.Done
Kathy’s DAQ
Window with Three Processes
Signals received by and sent from processes
Kathy’s Fatigue
none
Kathy’s Ramp.Done
Kathy’s DAQ.Done
Note
To simplify this illustration, some of the
signals normally available in this
scenario are not shown.
