The MultiPurpose TestWare Interface
MTS MultiPurpose TestWare® About MultiPurpose TestWare 31

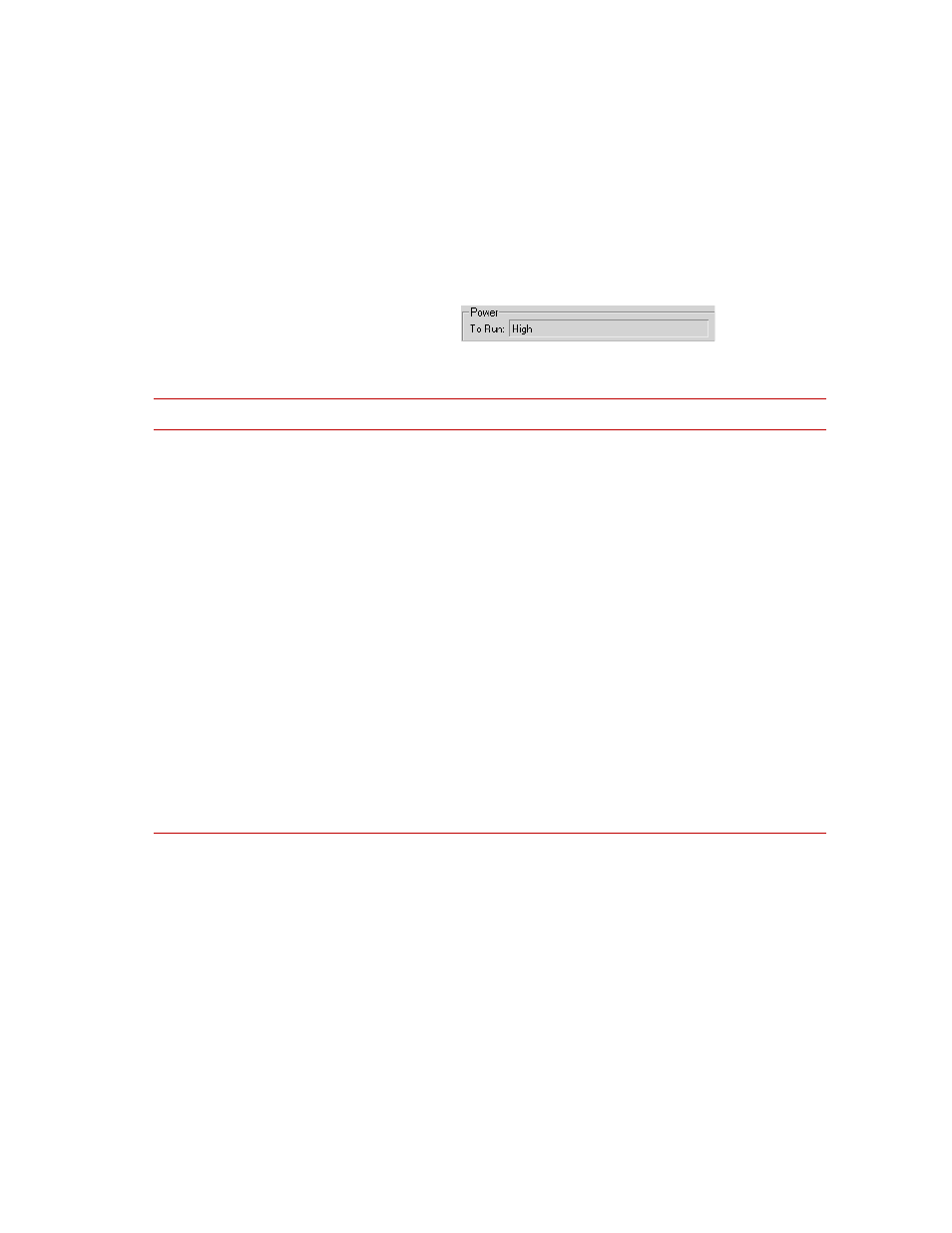

MPT Power Panel
The Power panel displays the hydraulic supply pressure required to run the
selected test.
For more information
See “MPT Options Editor Execution Tab” on page 62.
MPT Power Panel
I TEM D ESCRIPTION
To Run Displays the hydraulic pressure required to run the control channels in the
current procedure (hydraulic pressure options are High, High/Low, Off/
Interlocked, or Off).
Note Power status applies only to control channels. If a procedure does not
contain control channels, the power status has no effect on the
procedure. For instance, if you remove hydraulic power from a
procedure that does not include control channels, the procedure is still
valid.
You can specify the required hydraulic pressure for the control channels of the
current procedure using the Execution tab of the MPT Options Editor.
Note You must be in edit mode to change settings on the Execution tab.
The High selection applies to most testing situations. High requires you to
operate MPT with high hydraulic pressure applied to the station’s Hydraulic
Service Manifolds (HSM).
The Off/Interlocked and Off selections are typically used while you are
learning the application software or running test simulations.
The Off/Interlocked selection disregards active interlocks for the sake of
allowing you to run the test unhindered.
