Profile Editor Controls and Displays
MTS MultiPurpose TestWare® Model 793.11 Profile Editor 529
See “How to Define Taper Times” on page 532.
See “How to Assign Actions” on page 493.
About Wave Shapes
The Profile Editor application supports various program wave shapes. Wave
shapes dictate the way the actuator makes transitions between end levels. The
waveforms created by the shape selections are as follows. Each example uses the
following parameters: Frequency (Hz) 1; Count (segments) 6; Level 1 (mm) 2;
Level 2 (mm) 4.

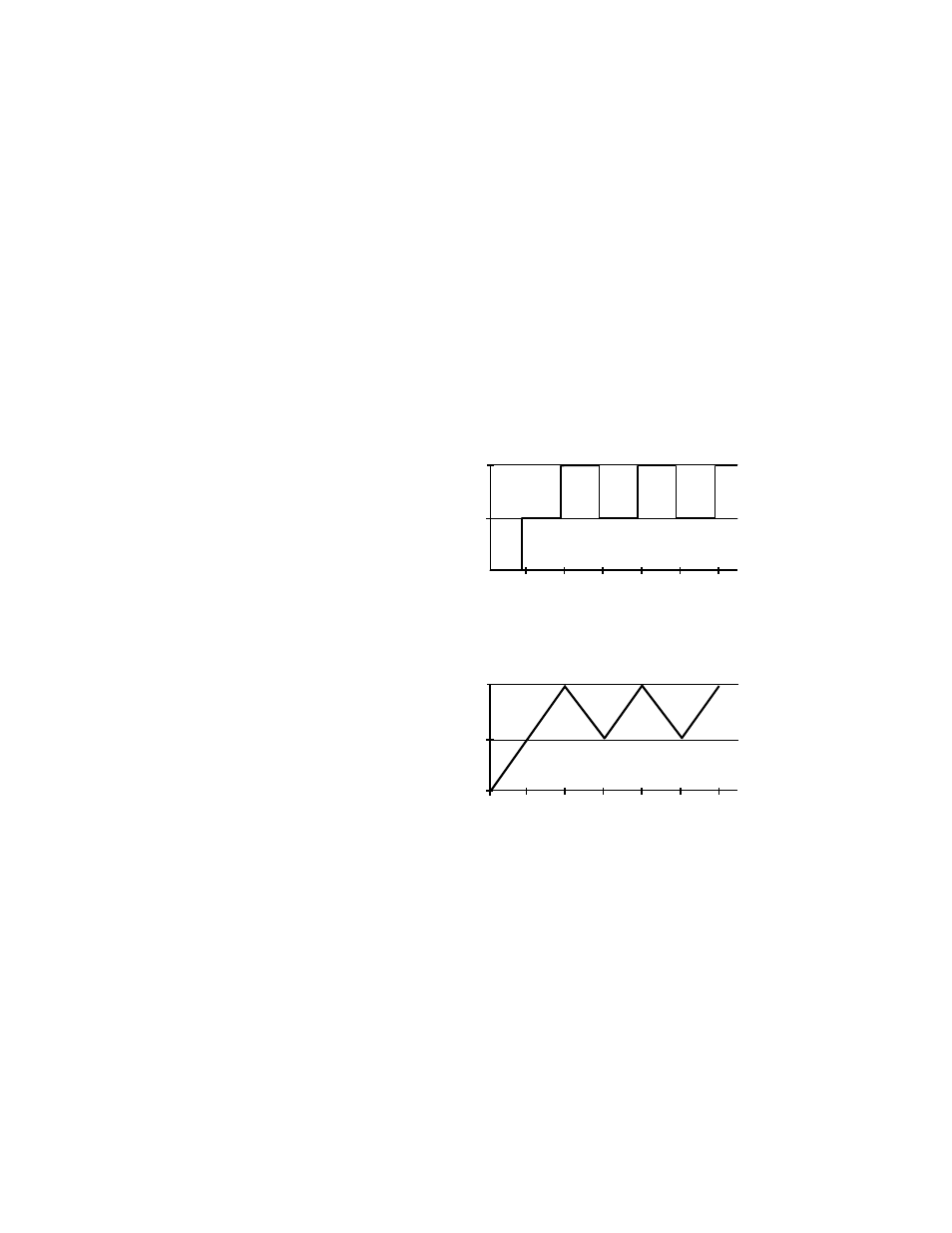

Square—Creates square waves that travel between end levels L1 and L2.
Ramp—Creates triangle waves that travel between end levels L1 and L2.
4.0000
2.0000
0.0000
0.3000 0.9000 1.5000 2.1000 2.7000
Time (sec)
3.3000
L2
L1
4.0000
2.0000
0.0000
0.3000 0.9000 1.5000 2.1000 2.7000
Time (sec)
3.3000
L2
L1
