MTS MultiPurpose TestWare®
Profile Editor Controls and Displays
Model 793.11 Profile Editor 528
For more information
See “Edit Menu” on page 535.
See “Analyze Window” on page 548.
PhaseLag
(Phase profiles only;
applies only to
multichannel systems)
Determines the phase of the slave channel to the master channel in degrees.
This value is relative to the value entered for the master channel. For instance,
if the master channel has a phase value of 10 degrees and the slave channel has
a phase value of 45 degrees, the phase between the two channels is 35 degrees.
Channel Grid (part 3 of 3)
I TEM D ESCRIPTION
Example :

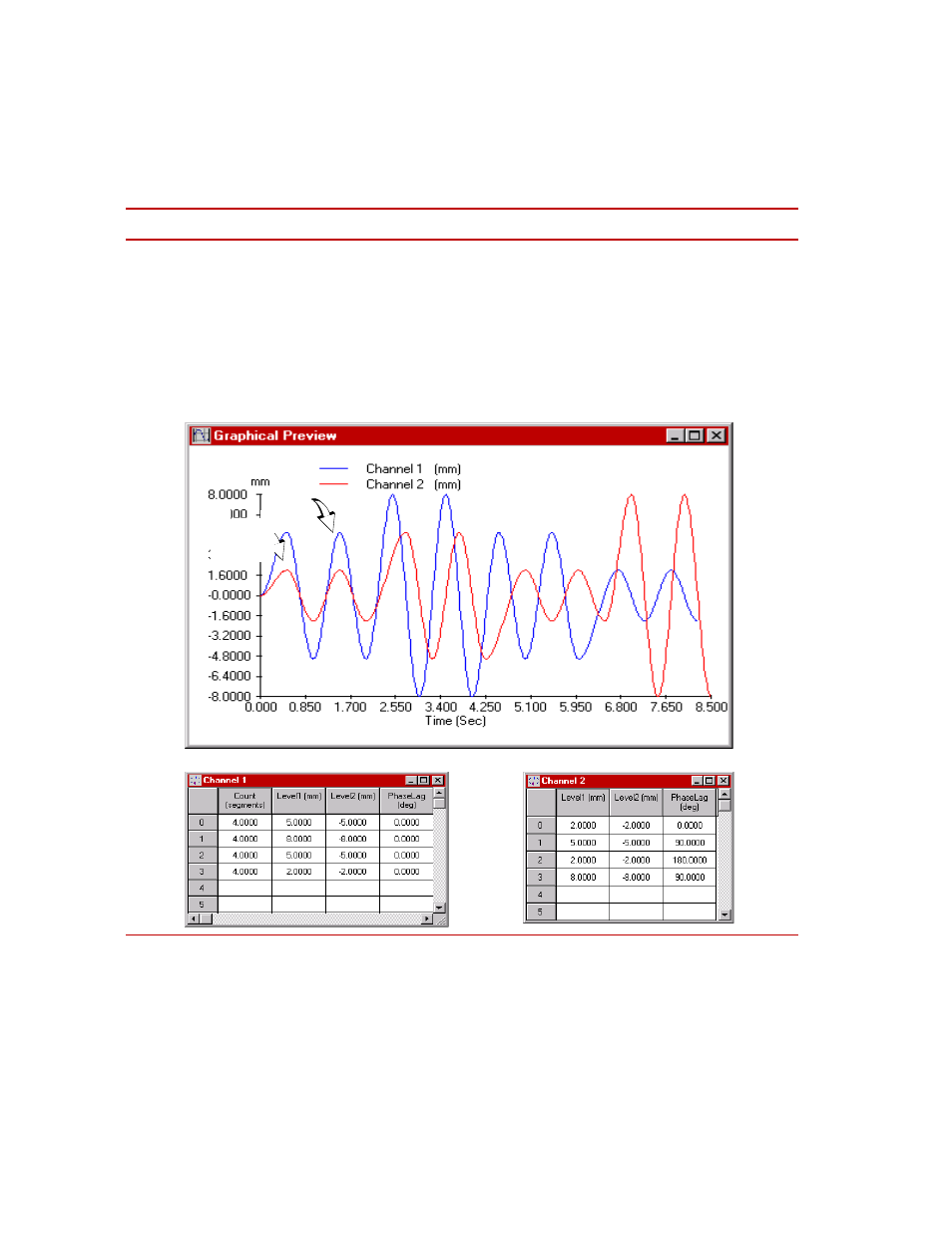

In the plot below, the Channel 2 waveform is slaved to the Channel 1 waveform, and varies
in phase according to the values in the Channel 2 profile.
Ch 2
Ch
