MTS MultiPurpose TestWare®
Model 793.14 Fatigue Monitoring Application
Trend and Fatigue Monitoring Applications 470
Limit Settings Window
All limit adjustments are made within this window. You can select a best case
(BC) and worst case (WC) for each signal as follows:
• Upper Limit (Pass)
• Lower Limit (Pass)
• Limit Action (Pass)
• Upper Limit (Accumulated)
• Limit Action (Accumulated)

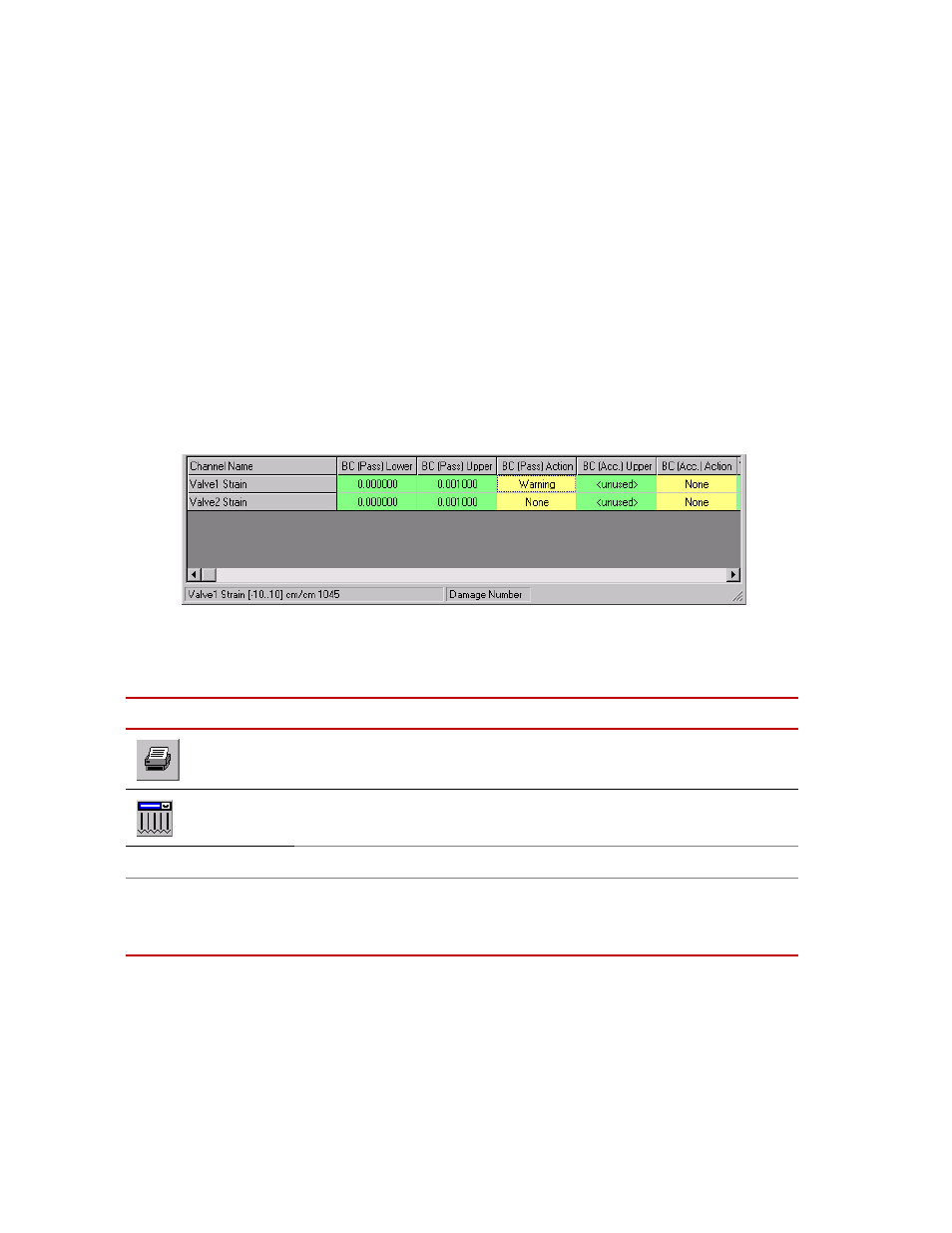

Limit Settings Window (part 1 of 2)
I TEM D ESCRIPTION
Prints the current limit settings in a tabular form.
Applies the selected action to all channels, and redisplays the Fatigue
Monitoring window.
Active Process Specifies the current process or file.
Upper/Lower Limit
values for channels For a data file: Displays the limit values.
For a procedure file: Displays editable limit values. To edit them, double-click
a value, then type the new value. Press the Enter key to accept changes.
Example of signals displayed in the Limit Settings window.
