Determine Which Processes Are Needed
Creating a Practice Test Procedure 158
Example of a group
process at work
The following illustrates Step 4.
Put it all together

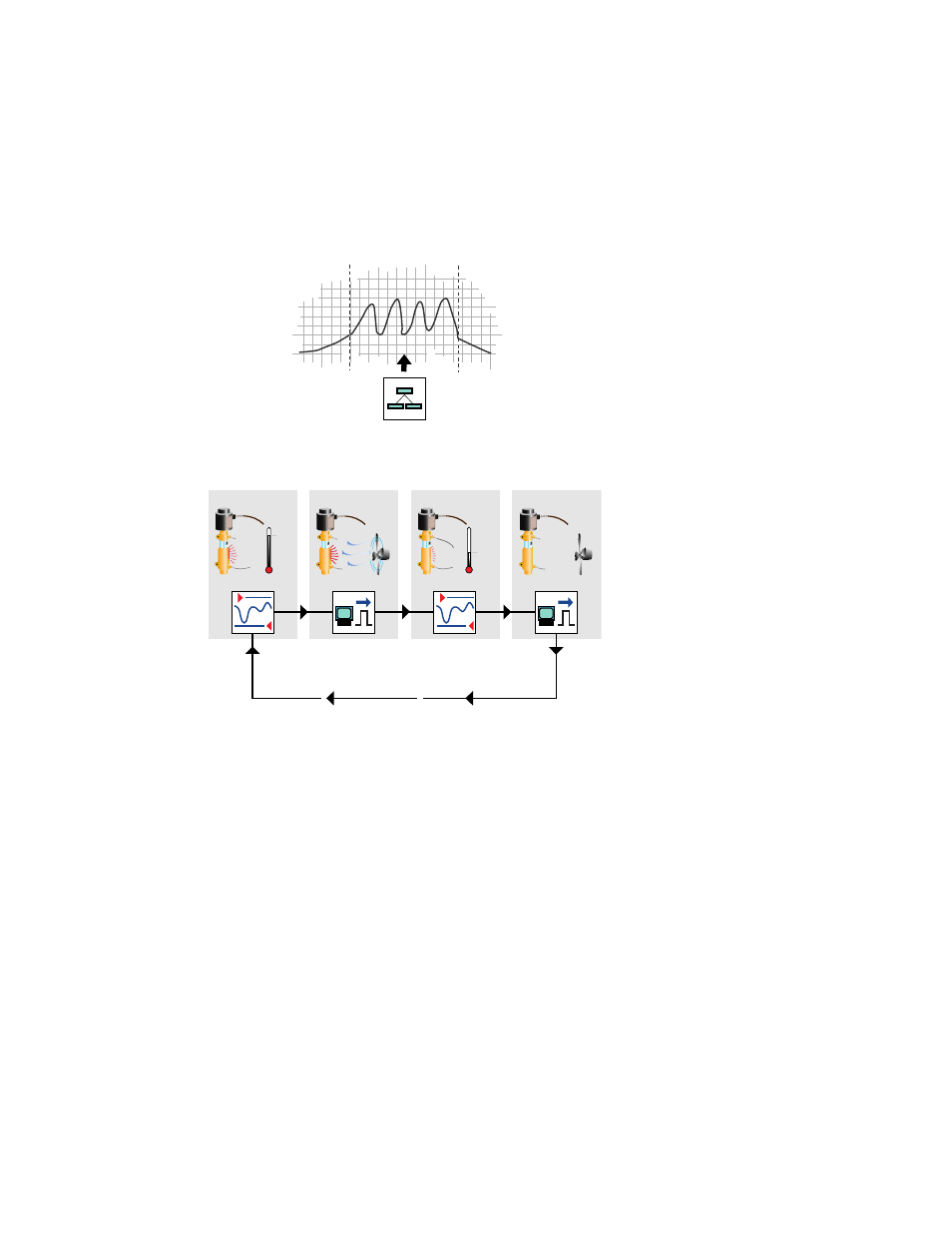

All of the processes required to perform the activities in the sample test sketch
are shown below in the process diagram.
75 °
50 °
On Off
1. The first Data Limit
process detects when
the physical specimen’s
temperature reaches
75
° C.
The Group process holds the
individual processes used to control
the cooling fan.
2. The first Digital Output
process sends out a
pulse that turns the fan
on when the physical
specimen’s temperature
reaches 75
° C.
3. The second Data
Limit process
detects when the
physical specimen’s
temperature drops
to 50
° C.
1 2 3 4
4. The second Digital
Output process turns
the fan off when the
physical specimen’s
temperature drops to
50
° C, then the Group
process starts over
with the first Data Limit
process.
