Model 793.14 Fatigue Monitoring Application
MTS MultiPurpose TestWare® Trend and Fatigue Monitoring Applications 465
Model 793.14 Fatigue Monitoring Application
Contents About the Fatigue Monitoring Application 465
Fatigue Monitoring Control Panel 465
Fatigue Monitoring Window 467
Limit Settings Window 463
About Best Case/Worst Case 471
Numerical Data Window 464
About the Fatigue Monitoring Application
The Fatigue Monitoring application plots fatigue data (received from an MPT
Fatigue process) in real-time. While the Fatigue process is running, you can use
the Fatigue Monitoring application to adjust data limits in real-time.
When you run a procedure that contains a Fatigue process, the Fatigue
Monitoring Control Panel appears minimized on the Windows taskbar. To
display the Fatigue Monitoring Control Panel and the rest of the Fatigue
Monitoring windows, click the icon on your Windows taskbar.

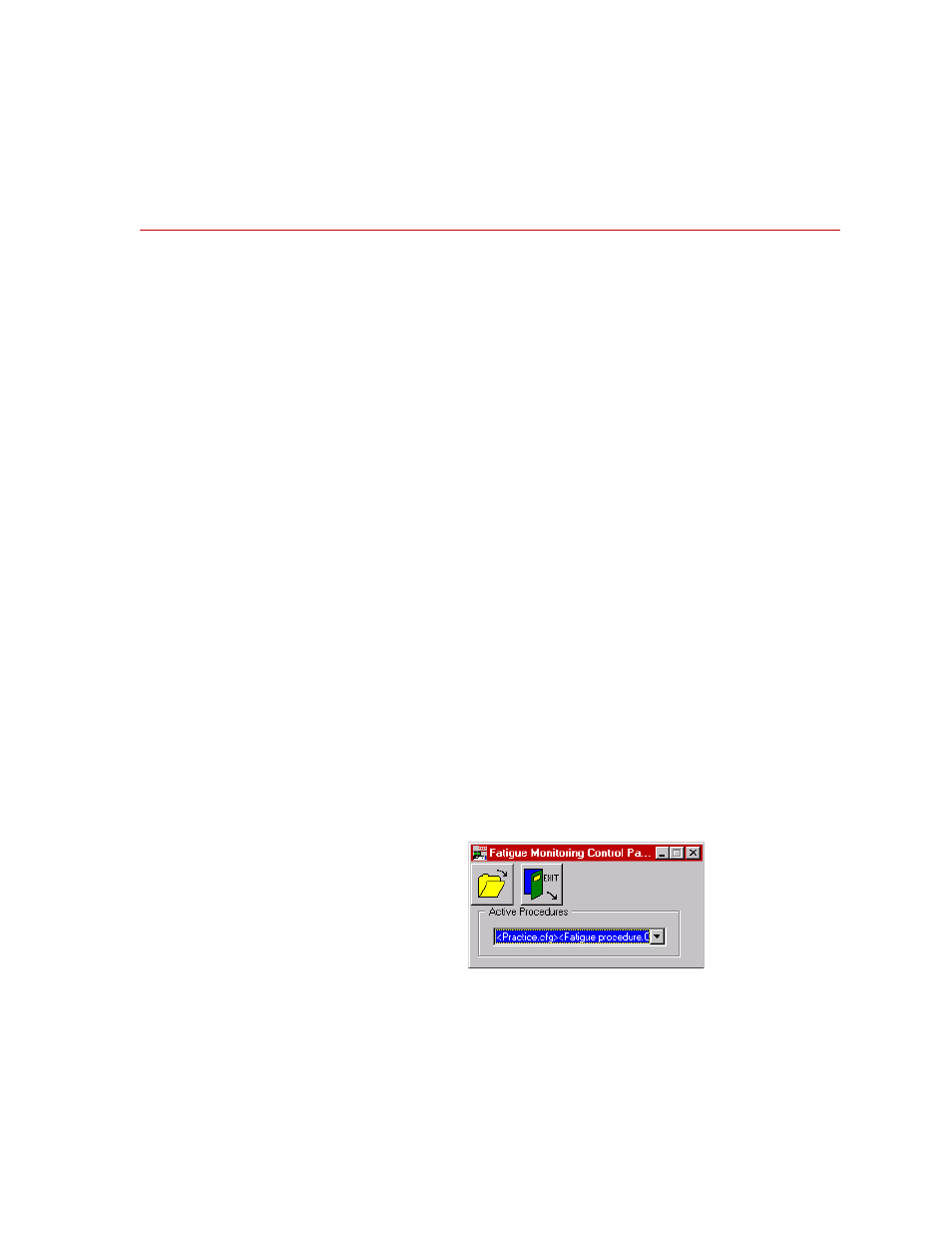

Fatigue Monitoring Control Panel
With the Fatigue Monitoring Control Panel, you can choose which procedure
for which to display monitoring information. It also includes a toolbar with
which you can open fatigue data files and quit the Fatigue Monitoring
application.
Note When you run a test that includes a Fatigue process, the Fatigue
Monitoring application runs in a minimized state.
