MTS Series 793 Application - Manual (Page 506)

MTS MultiPurpose TestWare®
Creating Profiles
Model 793.11 Profile Editor 506

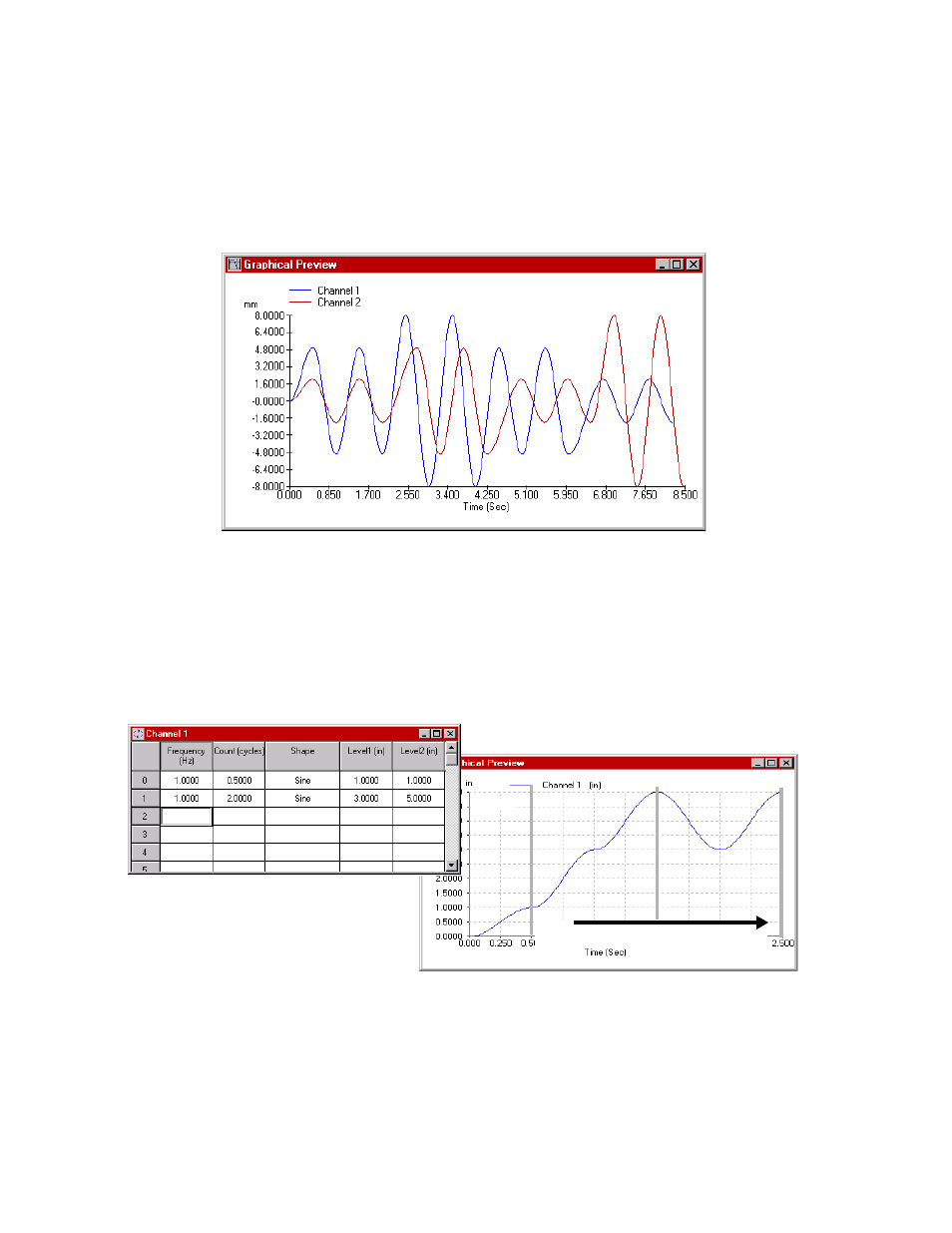

Graphical Preview Channels 1 and 2
About Cycle and Segment Behavior
Cycle behavior The first cycle in a row begins at the current level, travels to level 1, then travels
to level 2. Subsequent cycles in the row travel from level 2 to level 1 and back to
level 2. If a row has a cycle count of 0.5, the cycle begins at the current level and
travels just to level 1.
Row 0
Row 1 0.5
1 2
