MTS MultiPurpose TestWare®
Profile Editor Controls and Displays
Model 793.11 Profile Editor
532

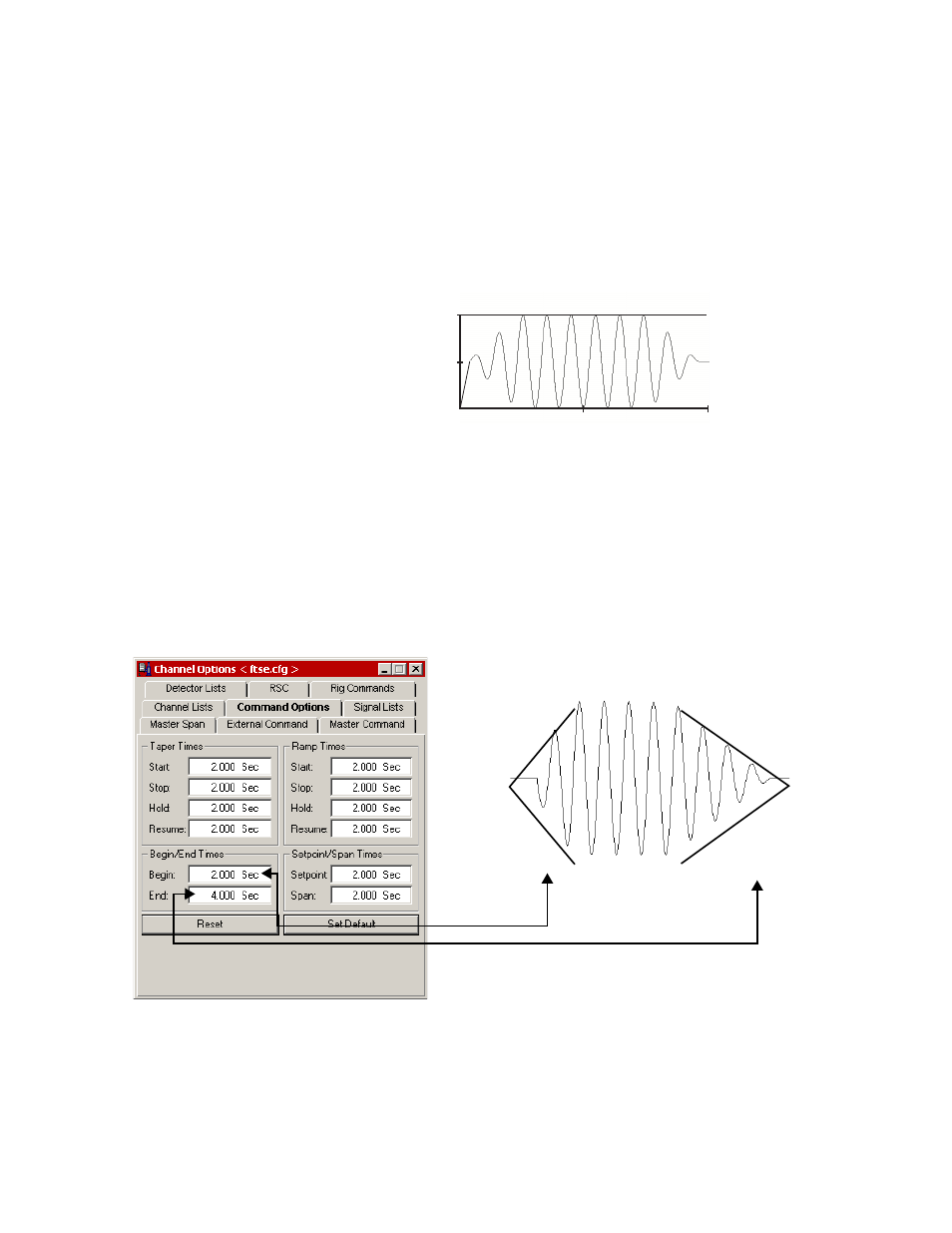

True Sine Tapered—Creates sine waves that travel at 100% amplitude between
the mean of the end levels (L1 and L2). Beginning at its mean, the waveform
tapers from 0% to 100% amplitude at the beginning of its execution, and from
100% to 0% at the ending of its execution.
For more information
See
How to Define Taper Times
The beginning and ending taper times of tapered wave shapes are specified on the
Command Options tab of Station Manager’s Channel Options window (Tools >
Channel Options > Command Options). Begin formats the leading edge and End
formats the trailing edge of all tapered waveforms in the profile.
4.0000
2.0000
0.0000
2.0000
Time (sec)
4.0000
L1
L2
1
2
3
4
1
2
