Creating Profiles
Model 793.11 Profile Editor 508

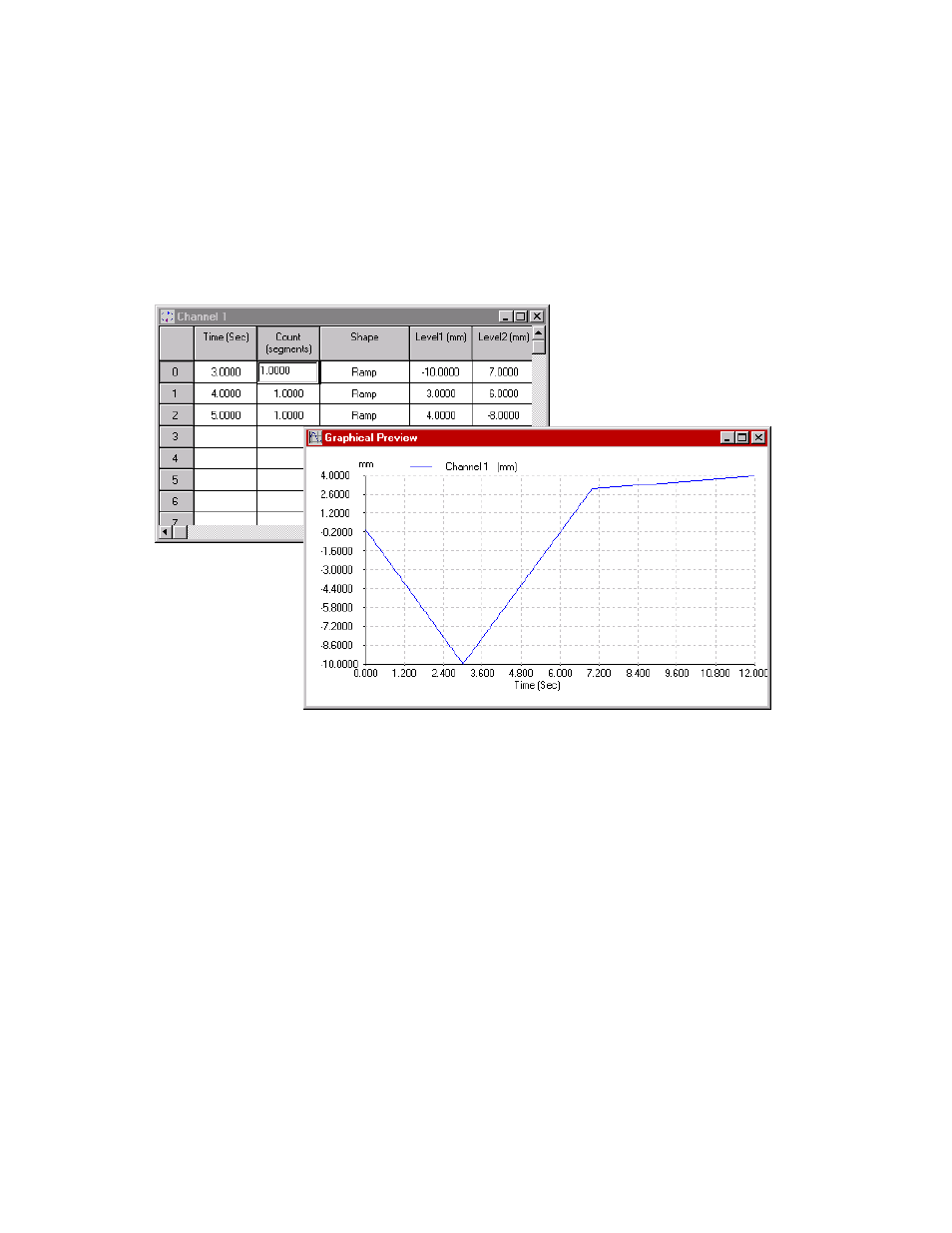

The illustration shows that since the first segment in each row is a transition from
one row to the next with a count of one segment, Level 2 values are ignored.
Because only one segment has been assigned to each row, that segment is used to
transition between rows.
For more information See “Level data” on page 502.
For a more detailed discussion of segment behavior, see page “Profile output
example” on page 479.
About Working with Dimensions
When you use the Profile Editor application to assign dimensions (force,
displacement, and so forth) to the end levels in a profile, you should be aware
that they must map to the dimensions of the control modes included in the station
configuration on which you wish to play out the profile.
