Model 793.14 Fatigue Monitoring Application
MTS MultiPurpose TestWare®
Trend and Fatigue Monitoring Applications
467
Fatigue Monitoring Window
The Fatigue Monitoring window consists of your fatigue plot, a channel selection
box, and a toolbar. If you are running a new procedure, the Procedure File View
displays. If you open an existing data file, the Data File View displays.
The current damage values and limit settings are displayed on the data plot. If you
are creating a new process, the system will plot only the first channel in the list
by default.
Note
If just one fatigue value has been plotted, and you have specified limits,
the limits are also displayed on the plot. If multiple values are plotted, the
limits are not displayed.

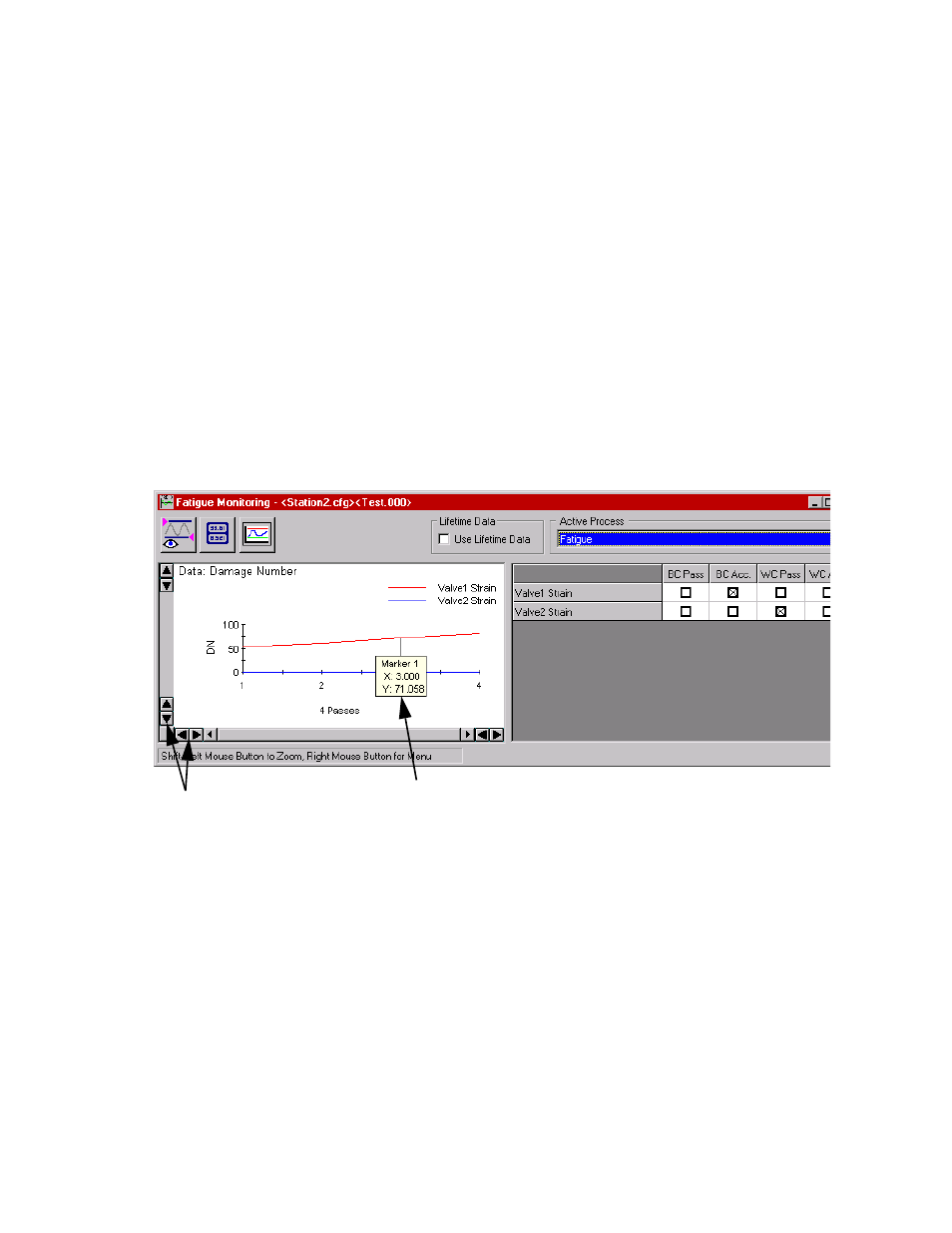

Procedure File View
Increase/Decrease
X/Y Min and Max
User-Defined Marker
Note
A left mouse-click on the trace will display it coordinates.
