Signal Based Command Process
MTS MultiPurpose TestWare® Command Processes 227

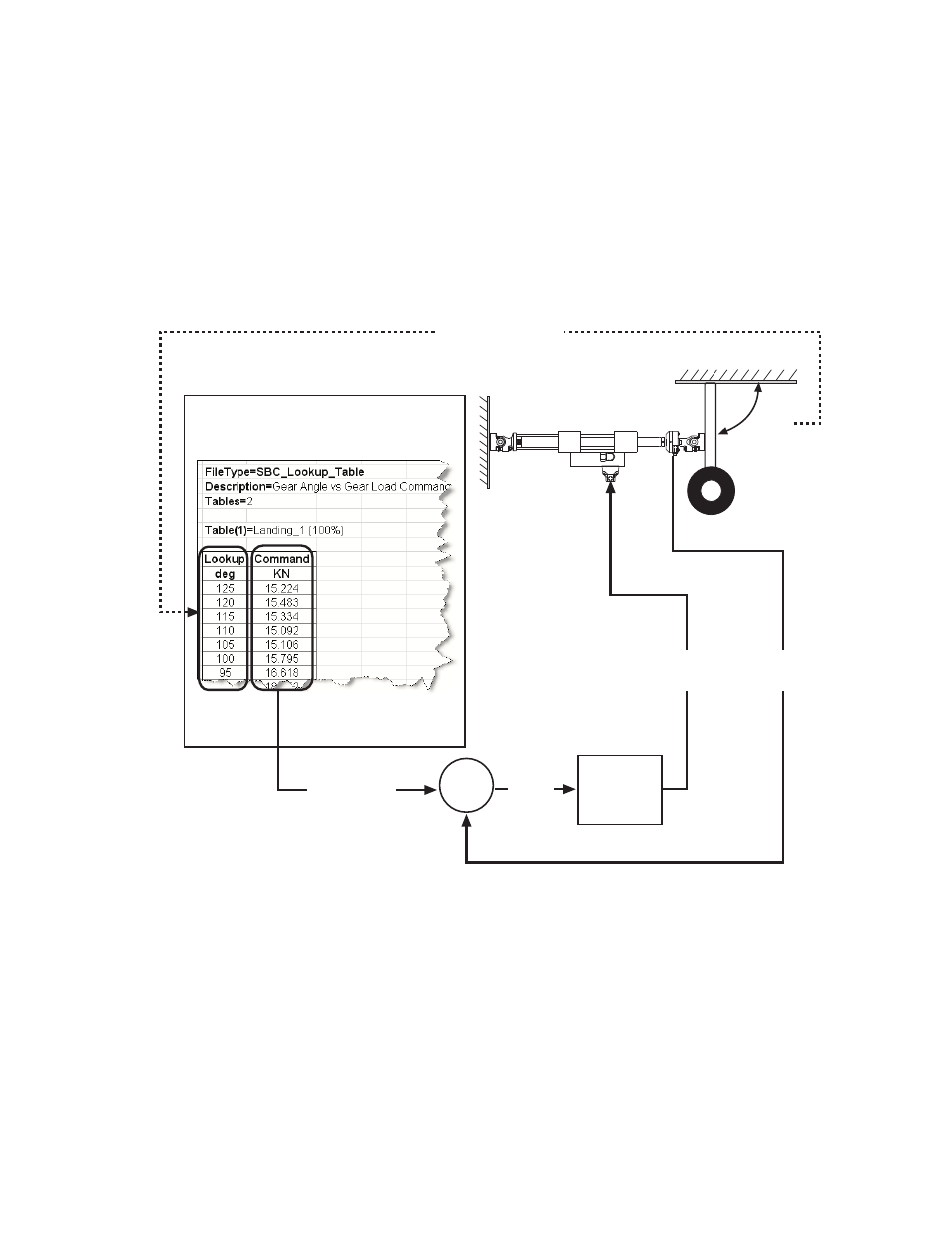

Signal Based Command (SBC) Process Example
In the example below, the SBC lookup table defines the load command for
various landing gear angles. As the landing gear angle (lookup signal) changes,
the SBC process locates that lookup-signal value in the lookup table and applies
the command defined for that lookup-signal value.
S
Lookup Signal
(controller input)
Servovalve
Command
Load
Feedback
PIDF
Controller
Signal Based
Command
Error
SBC Lookup Table
Actuator
Load
Cell
MultiPurpose TestWare with
Signal Based Command Process
Gear
Angle
