External Command Process
MTS MultiPurpose TestWare®
Command Processes
211
External Command Process
About the External Command Process
The External Command process accommodates program inputs from an external
programmer or controller.
Before you can use an External Command process, you must:
•
Connect the external command source to your controller.
•
Use Station Builder to allocate an analog input resource (for the command
input signal).
•
Adjust the command input signals with the Station Manager application.
•
When you define an External Command process, you must define which
channel(s) the process will control.

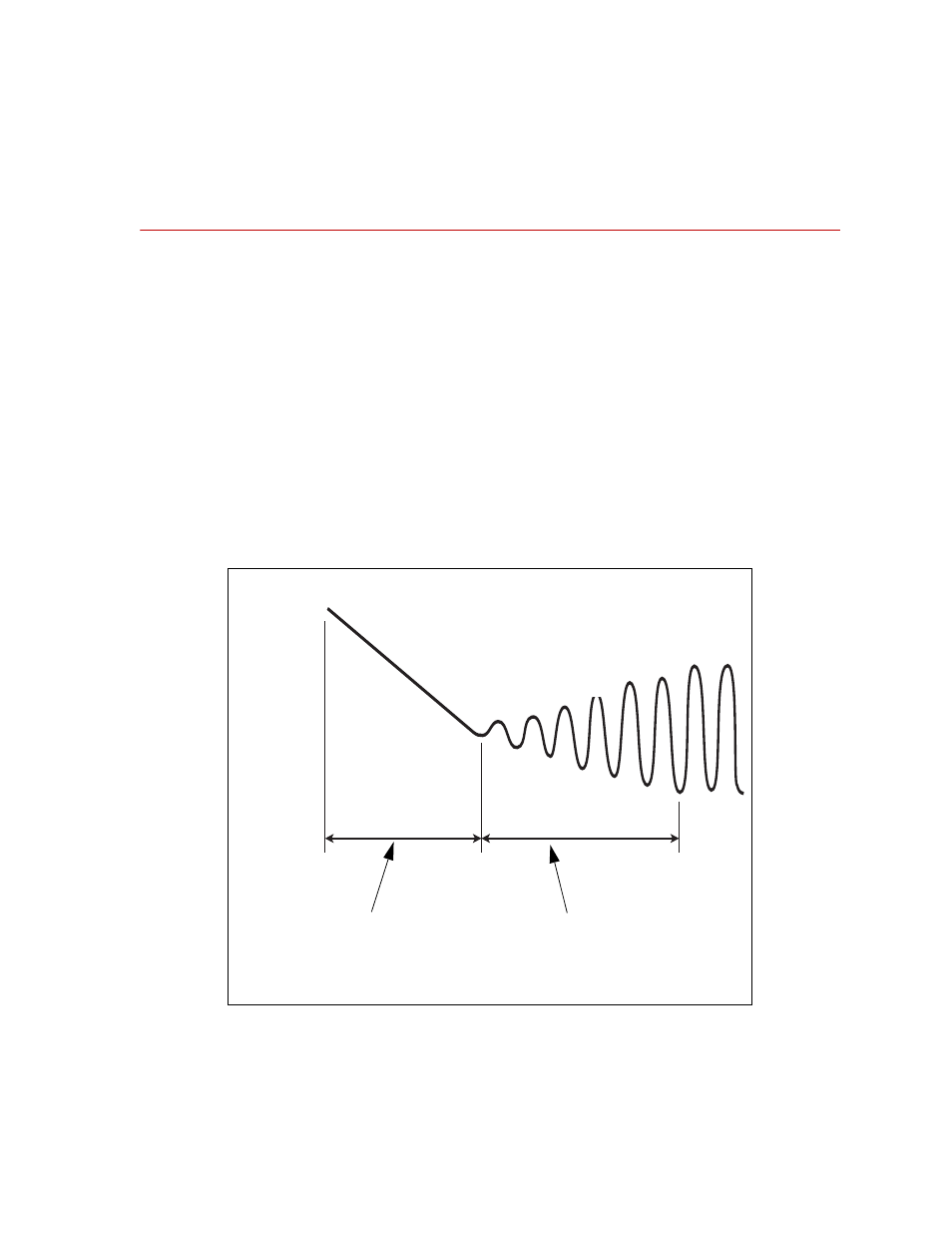

Soft Start
The process tapers to external
command amplitude.
You may configure the process to ramp from
the end level of the previous command
process to the external command setpoint,
or you may configure the process to begin at
current command level.
External Command
