MTS Series 793 Application - Manual (Page 188)

MTS MultiPurpose TestWare®
Cyclic Command Process
Command Processes 188
Example Assume a cyclic command completes its process at End Level 2 (in this case, +2
cm). The next Cyclic Command process is defined as End Level 1 = –1 cm and
End Level 2 = +1 cm. The transition segment bridges the two commands from
the +2 cm level to the –1 cm level at the time, rate, or frequency of the second
process.

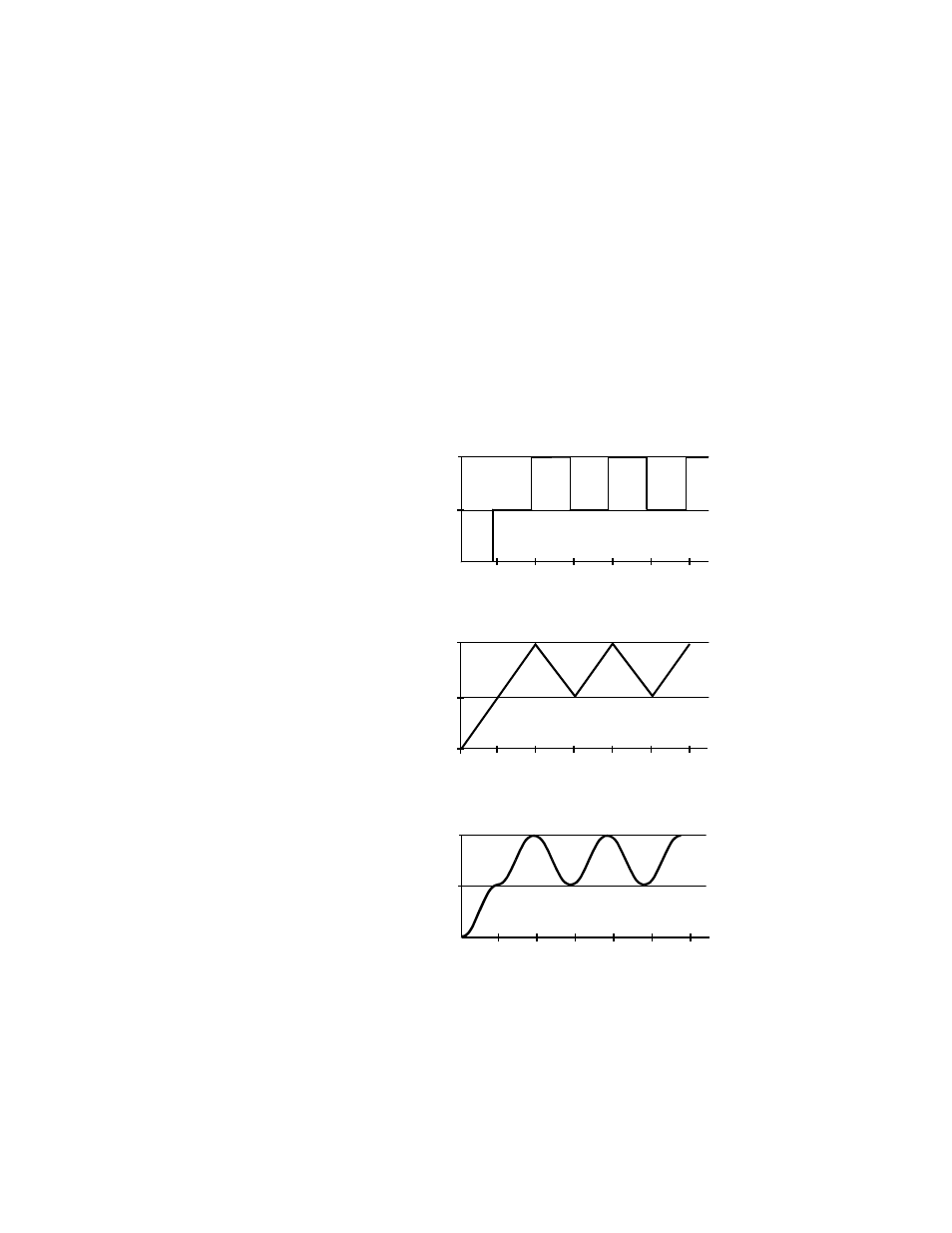

Segment Shapes
Each of the following examples uses the following parameters: Frequency (Hz)
1, Count (segments) 6, Level 1 (mm) 2, Level 2 (mm) 4, with a starting level of
0.0.
Square
Ramp
Sine
4.0000
2.0000
0.0000
0.3000 0.9000 1.5000 2.1000 2.7000
Time (sec)
3.3000
L2
L1
4.0000
2.0000
0.0000
0.3000 0.9000 1.5000 2.1000 2.7000
Time (sec)
3.3000
L2
L1
4.0000
2.0000
0.0000 0.3000 0.9000 1.5000 2.1000 2.7000
Time (sec)
3.3000
L2
L1
