Sequence Your Processes
MTS MultiPurpose TestWare® Creating a Practice Test Procedure 163
E. Add a Data Limit Detector process and name it Trigger at 50C.
F. Add a Digital Output process and name it Switch Fan Off.
Sequence Your Processes
To complete this task, perform the following:
• Select Start and Interrupt triggers for each process on the procedure and
group table.
• Select a Procedure is done when trigger for the procedure table.
• Select a Group is done when trigger for the group table.
This task determines the sequence in which the processes run. With the exception
of the first process in the procedure, the default Start trigger for each process is
the done trigger generated by the previous process. The default Interrupt trigger
is blank.
Note There is a slight time delay between processes that start with a common
trigger signal (for example, two processes using the Start>
trigger signal). The process positioned the highest on the Procedure or
Group table starts first.
1. Specify Start triggers for each process in the procedure table.
A. If you are still in the Group table, click on the MPT toolbar to
return to the main procedure table.

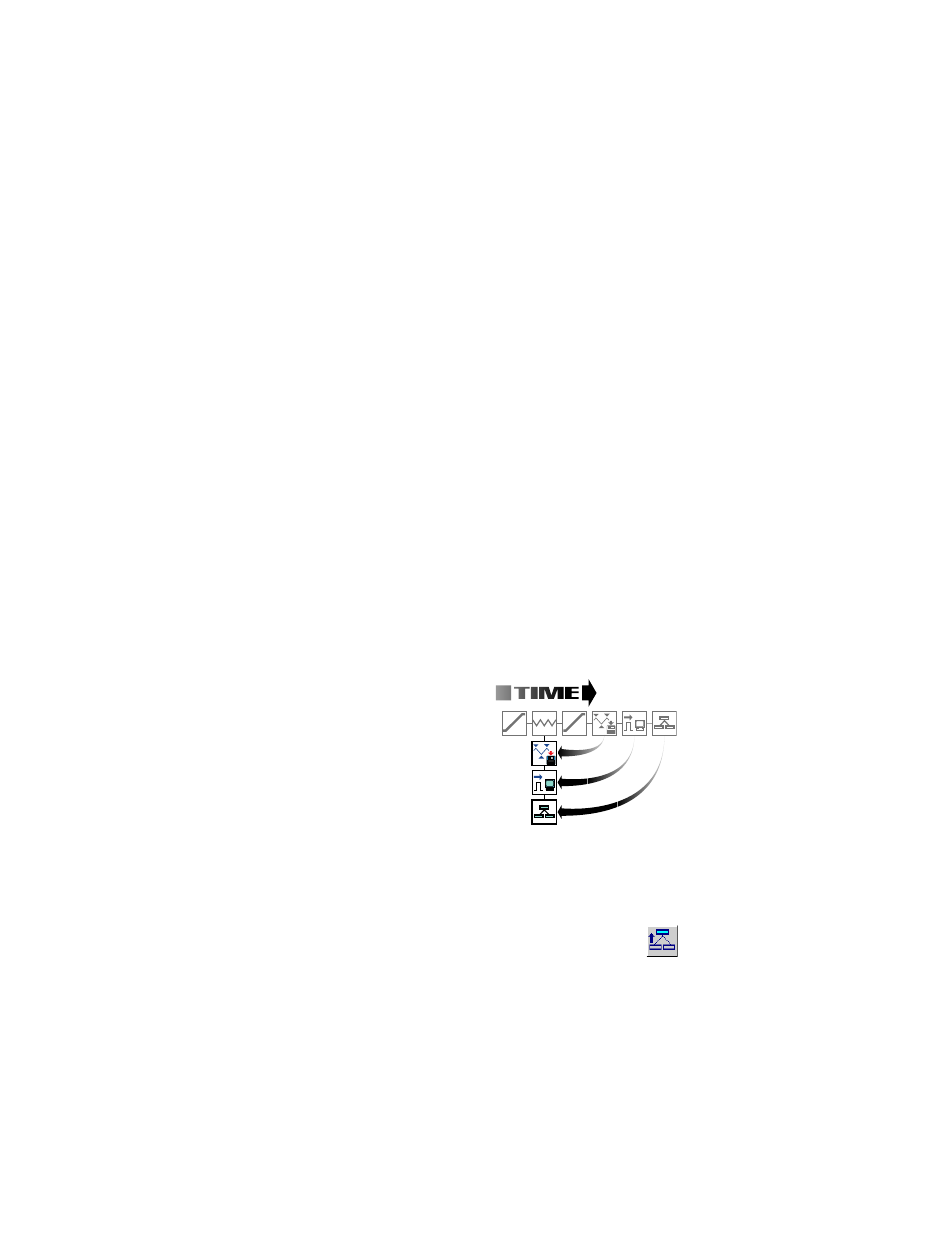

This step changes the default
sequence of some of the
processes in the procedure.
