Chapter 2
70
External Device Setup Manual

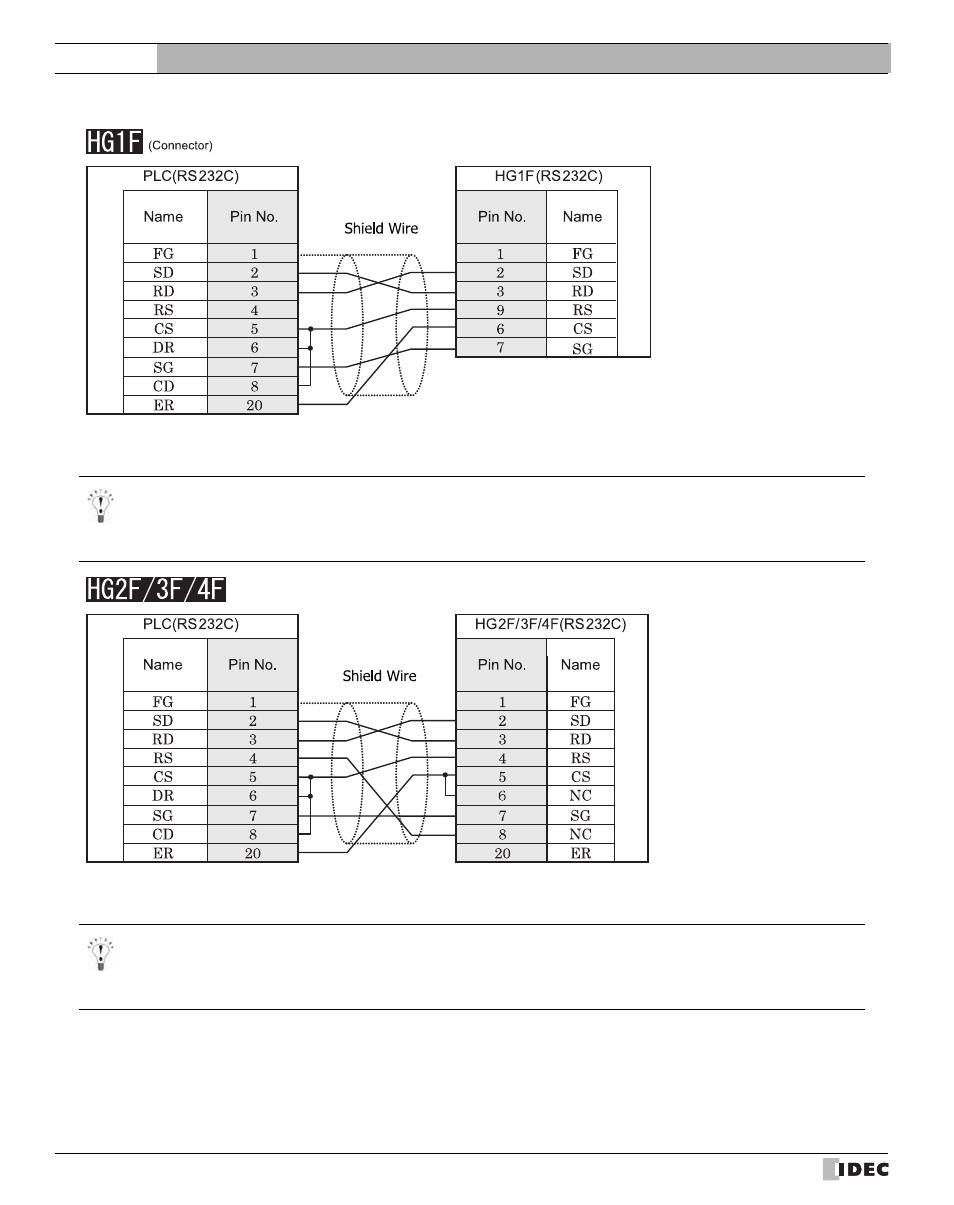

D-sub, 25P connector socket type
D-sub, 9P connector socket type
- In case of HG1F a connection cable is available. (part number: HG9Z-XC145).
- The connection diagram 1 is not same as HG9Z-XC145. But both diagrams are available. Refer to Chapter 7 "1.11 PLC
connection cable: HG9Z-XC145" on page 650 about the connection diagram of HG9Z-XC145.
D-sub, 25P connector socket type
D-sub, 25P connector socket type
- In case of HG2F/3F/4Fa connection cable is available. (part number: HG9Z-3C135).
- The connection diagram 1 is not same as HG9Z-3C135. But both diagrams are available. Refer to Chapter 7 "1.5 PLC
connection cable: HG9Z-3C135" on page 646 about the connection diagram of HG9Z-3C135.
