IDEC High Performance Series - Manual (Page 157)

139
3 Omron
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Con
nection
to a PLC
External Device Setup Manual

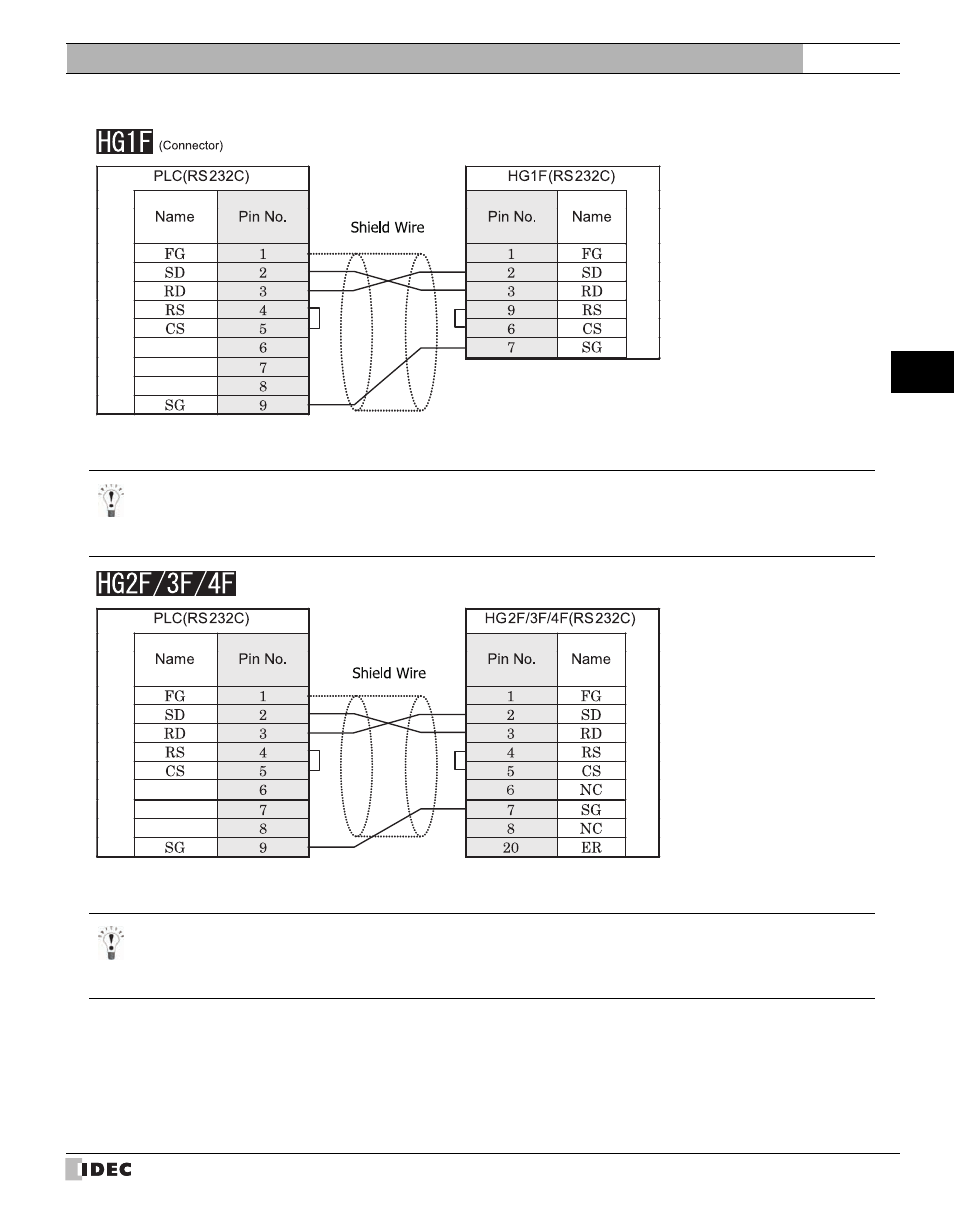

D-sub, 9P connector socket type D-sub, 9P connector socket type
- In case of HG1F a connection cable is available. (part number: HG9Z-XC213).
- The connection diagram 5 is not same as HG9Z-XC213. But both diagrams are available. Refer to Chapter 7 "1.15 PLC
connection cable: HG9Z-XC213" on page 652 about the connection diagram of HG9Z-XC213.
D-sub, 9P connector socket type D-sub, 25P connector socket type
- In case of HG2F/3F/4Fa connection cable is available. (part number: HG9Z-3C155).
- The connection diagram 5 is not same as HG9Z-3C155. But both diagrams are available. Refer to Chapter 7 "1.7 PLC
connection cable: HG9Z-3C155" on page 647 about the connection diagram of HG9Z-3C155.
