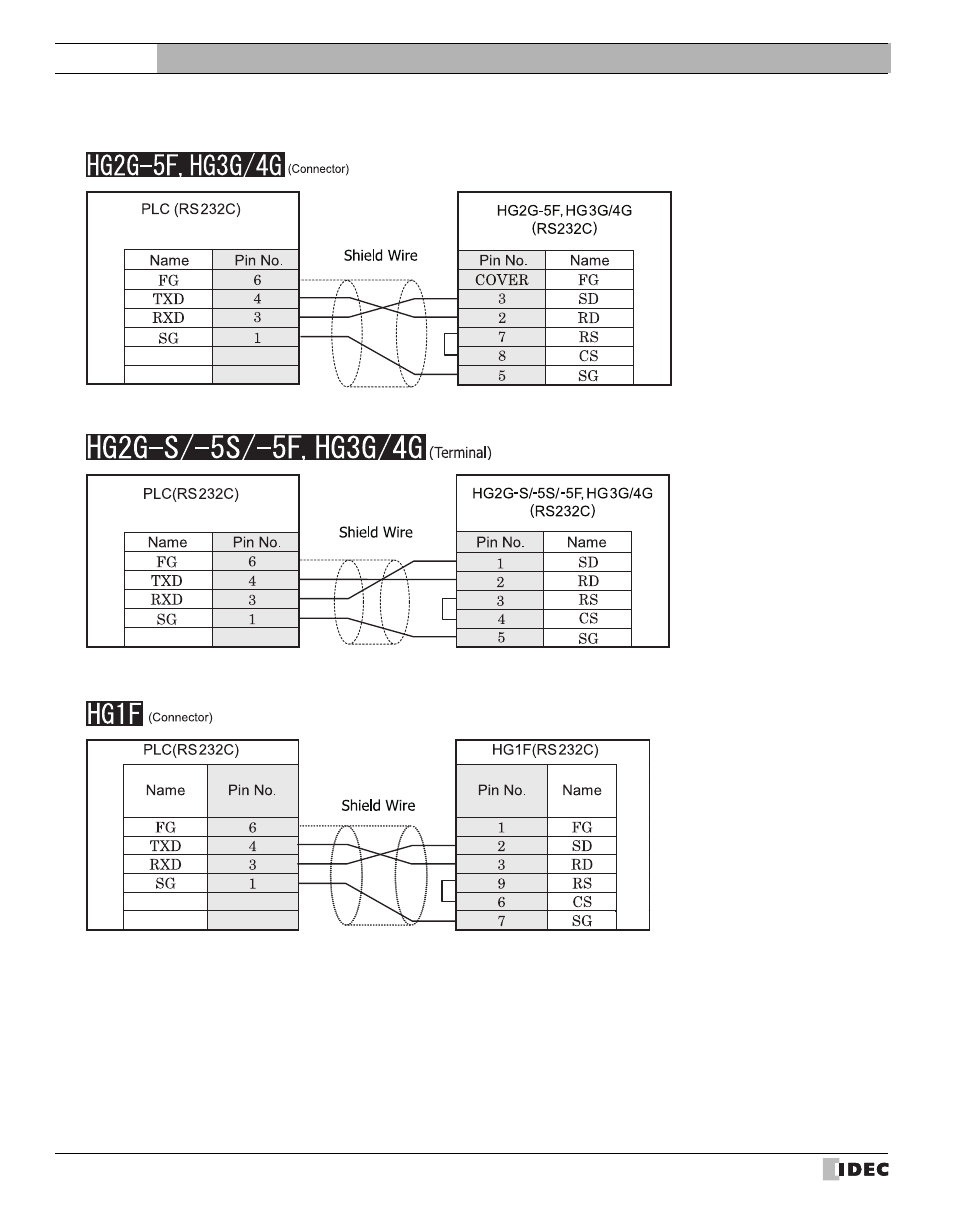

14.3.3 Connection Diagram 3: Direct LOGIC 205 (connects to CPU unit RS232C port) to MICRO/I
6P modular connector socket type D-sub, 9P connector plug type
6P modular connector socket type Terminal
6P modular connector socket type D-sub, 9P connector socket type
